Panduit HST1.1-9-X2Y | Heat Shrink | UPC - 07498310741
Description
Description

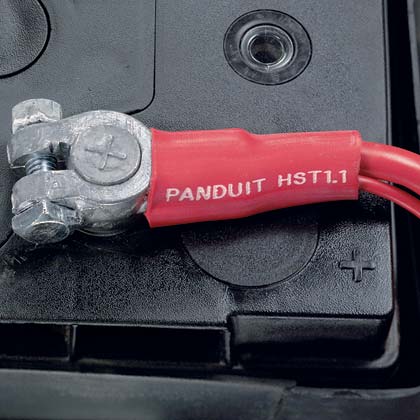

Thick wall polyolefin heat shrink with a 3:1 ratio shall be used to insulate, seal and protect electrical splices and terminations where maximum flame retardancy and exceptional insulating and sealing characteristics are required. The adhesive lined inner wall shall seal and protect against moisture. The heat shrink tube shall be suitable for direct burial according to UL 486D and UL Recognized for sunlight (UV) resistance and VW-1 flame rating for outdoor applications such as solar and wind. The thick wall tube shall be CSA certified and RoHS compliant.
Panduit Heat Shrink Tubing, Adhesive Lined Cross Linked, Series: HST, 600 VAC, 1.1 in ID Expanded, 0.39 in ID Recovered, Thick Wall, 0.12 in Wall Thickness Recovered, 2 to 4/0 AWG Wire, 3:1 Shrink Ratio, 9 in Length, -67 to 230 deg F, 248 deg F Shrink, Polyolefin, Red
Features + Benefits
- High impact and abrasion resistance
- Resistant to splitting or rupture during installation
- Variety of diameters
- Convenient packaging
- Quality material
Panduit Panduit HST1.1-9-X2Y | Heat Shrink | UPC - 07498310741 Key Specs
| Product Type | Heat Shrink |
| Color | Red |
| Material | Highly Flame Retardant Adhesive Lined Cross-Linked Polyolefin |
| Maximum Operating Temperature (°C) | 110 |
| Maximum Operating Temperature (°F) | 230 |
| Minimum Operating Temperature (°C) | -55 |
| Minimum Operating Temperature (°F) | -67 |
| Nominal Recovered Wall Thickness (In.) | 0.12 |
| Nominal Recovered Wall Thickness (mm) | 3 |
| Sub Brand | Wet-Shrink |
| Overall Length (In.) | 9 |
| Overall Length (ft.) | 0.72 |
| Overall Length (m) | 0.2 |
| Overall Length (mm) | 228.6 |
| Shrink Ratio | 3:1 |
| Shrink Temperature (°C) | 120 |
| Shrink Temperature (°F) | 248 |
| Maximum Recovered Inside Diameter (In.) | 0.39 |
| Maximum Recovered Inside Diameter (mm) | 9.5 |
| Minimum Expanded Inside Diameter (In.) | 1.1 |
Panduit Panduit HST1.1-9-X2Y | Heat Shrink | UPC - 07498310741 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - HST0.4-3-Q2Y Product Page | Download and View |
| Specification Sheets | Thick Wall Polyolefin Heat Shrink Tubing: HSSP02-WW-ENG | Download and View |
| Part Drawings | Part Drawing - PDF - GB0239KM_03A | Download and View |
Panduit Panduit HST1.1-9-X2Y | Heat Shrink | UPC - 07498310741 Environmental Information
| Panduit's RoHS Statement | Download and View |
