Panduit HST2.7-48-2Y | Heat Shrink | UPC - 07498333294
Description
Description

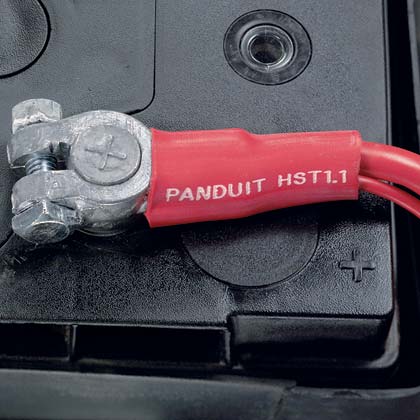

Thick wall polyolefin heat shrink with a 3:1 ratio shall be used to insulate, seal and protect electrical splices and terminations where maximum flame retardancy and exceptional insulating and sealing characteristics are required. The adhesive lined inner wall shall seal and protect against moisture. The heat shrink tube shall be suitable for direct burial according to UL 486D and UL Recognized for sunlight (UV) resistance and VW-1 flame rating for outdoor applications such as solar and wind. The thick wall tube shall be CSA certified and RoHS compliant.
Panduit Wet-Shrink Heat Shrink Tubing, Standard, 600 VAC, 2.7 in Inner Dia Expanded, 0.87 in Inner Dia Recovered, Thick Wall, 0.16 in Wall Thickness Recovered, 3:1 Shrink, 48 in Length, -67 to 230 deg F, 248 deg F Shrink, Polyolefin, Black
Features + Benefits
- High impact and abrasion resistance
- Resistant to splitting or rupture during installation
- Variety of diameters
- Convenient packaging
- Quality material
Panduit Panduit HST2.7-48-2Y | Heat Shrink | UPC - 07498333294 Key Specs
| Product Type | Heat Shrink |
| Color | Black |
| Material | Highly Flame Retardant Adhesive Lined Cross-Linked Polyolefin |
| Nominal Recovered Wall Thickness (In.) | 0.16 |
| Nominal Recovered Wall Thickness (mm) | 4.1 |
| Sub Brand | Wet-Shrink |
| Overall Length (In.) | 48 |
| Overall Length (ft.) | 4 |
| Overall Length (m) | 1.2192 |
| Overall Length (mm) | 1219.2 |
| Shrink Ratio | 3:1 |
| Minimum Expanded Inside Diameter (In.) | 2.7 |
| Minimum Expanded Inside Diameter (mm) | 68.6 |
Panduit Panduit HST2.7-48-2Y | Heat Shrink | UPC - 07498333294 Data Sheets
| Specification Sheets | Thick Wall Polyolefin Heat Shrink Tubing: HSSP02-WW-ENG | Download and View |
| Part Drawings | Part Drawing - PDF - GB0239KM_03A | Download and View |
| Installation Documents | HST Thick Wall Heat Shrink IN003 | Download and View |
Panduit Panduit HST2.7-48-2Y | Heat Shrink | UPC - 07498333294 Environmental Information
| Panduit's RoHS Statement | Download and View |
