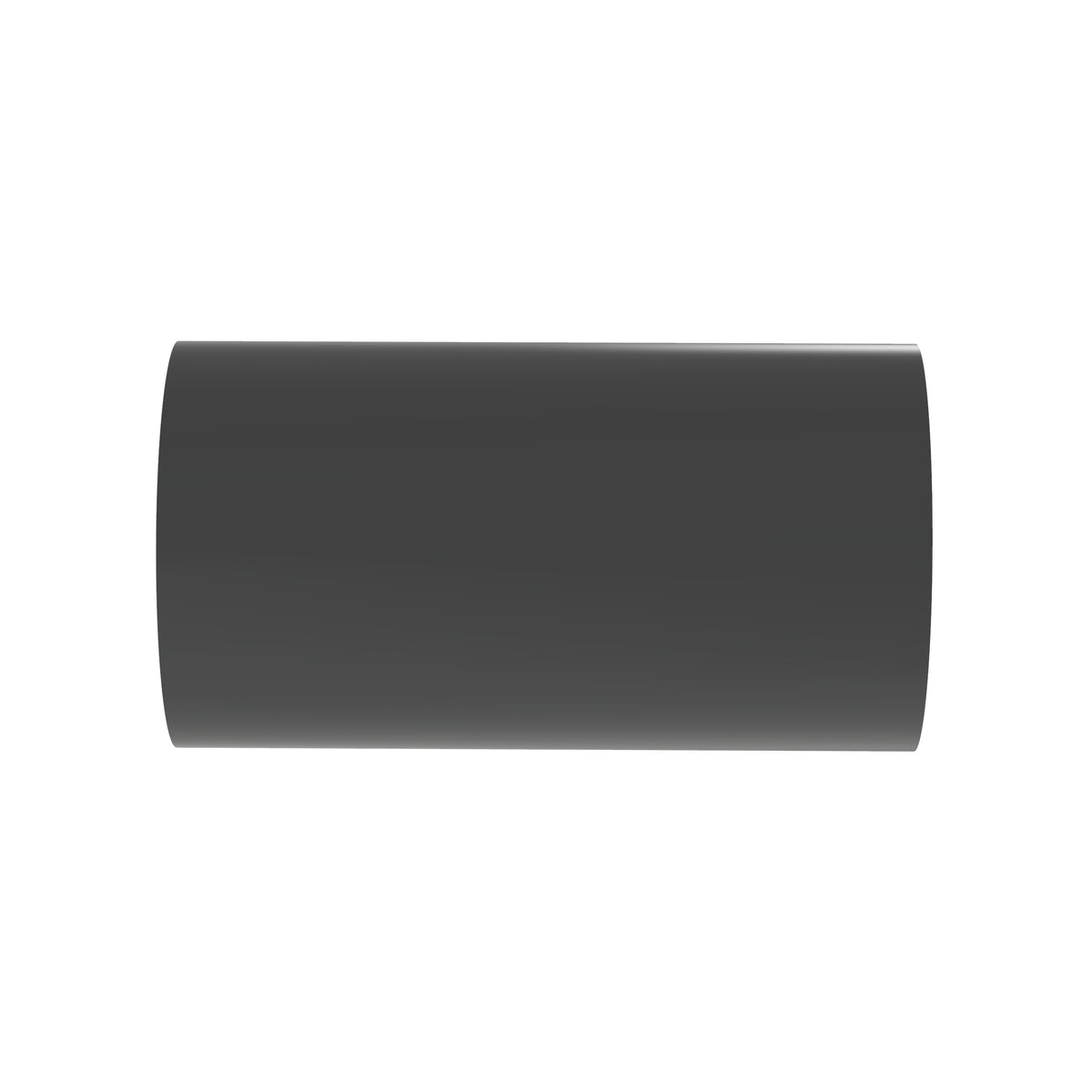

Panduit HST3.0-48-2 | Heat Shrink | UPC - 07498361695
Description
Description
Thick wall polyolefin heat shrink with a 3:1 ratio shall be used to insulate, seal and protect electrical splices and terminations where maximum flame retardancy and exceptional insulating and sealing characteristics are required. The adhesive lined inner wall shall seal and protect against moisture. The heat shrink tube shall be suitable for direct burial according to UL 486D and UL Recognized for sunlight (UV) resistance and VW-1 flame rating for outdoor applications such as solar and wind. The thick wall tube shall be CSA certified and RoHS compliant.
Panduit Wet-Shrink Heat Shrink Tubing, Adhesive Lined, 600 VAC, 3 in Inner Dia Expanded, 1 in Inner Dia Recovered, Thick Wall, 0.16 in Wall Thickness Recovered, 600 to 1250 kcmil Wire, 3:1 Shrink, 48 in Length, -67 to 230 deg F, 248 deg F Shrink, Polyolefin, Black
Features + Benefits
- High impact and abrasion resistance
- Resistant to splitting or rupture during installation
- Variety of diameters
- Convenient packaging
- Quality material
Panduit HST3.0-48-2 | Heat Shrink | UPC - 07498361695 Key Specs
| Product Type | Heat Shrink |
| Adhesive Lined | Yes |
| Color | Black |
| Material | Adhesive Lined Cross-Linked Polyolefin |
| Maximum Operating Temperature (°C) | 110 |
| Maximum Operating Temperature (°F) | 230 |
| Minimum Operating Temperature (°C) | -55 |
| Minimum Operating Temperature (°F) | -67 |
| Nominal Diameter (In.) | 3 |
| Nominal Diameter (mm) | 76.2 |
| Nominal Recovered Wall Thickness (In.) | 0.16 |
| Nominal Recovered Wall Thickness (mm) | 4.1 |
| Sub Brand | Wet-Shrink |
| Overall Length (In.) | 48 |
| Overall Length (ft.) | 4 |
| Overall Length (m) | 1.22 |
| Overall Length (mm) | 1219.2 |
| Resistance Properties | Outer wall is flame retardant; Suitable for wet locations; Suitable for outdoor, direct sunlight applications |
| Standards Met | UL224 VW-1; UL/UR: E342365; UL Listed: E173379; CSA: 244528; Mil Spec: AMS-DTL-23053/15 |
| Shrink Ratio | 3:1 |
Panduit HST3.0-48-2 | Heat Shrink | UPC - 07498361695 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - HST0.4-3-Q2Y Product Page | Download and View |
| Specification Sheets | Thick Wall Polyolefin Heat Shrink Tubing: HSSP02-WW-ENG | Download and View |
| Part Drawings | Part Drawing - PDF - GB0239KM_03A | Download and View |
Panduit HST3.0-48-2 | Heat Shrink | UPC - 07498361695 Environmental Information
| Panduit's RoHS Statement | Download and View |
