Brand: Panduit
|
SKU:
337814

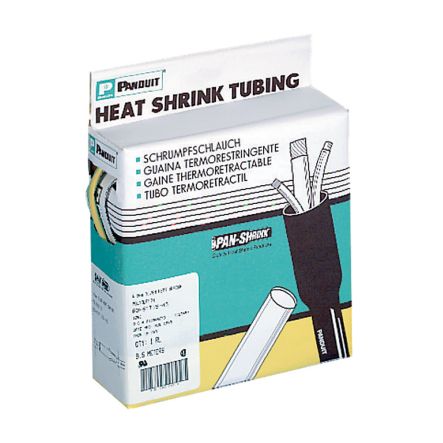

Panduit HSTT06-Q Heat Shrink Tubing, Thin, .06";(1.6mm) Diameter, Black, 25FT.
Regular price
$30.02
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit HSTT06-Q Heat Shrink Tubing, Thin, .06";(1.6mm) Diamet...
Regular price
$30.02
Unit price
Description
Description
Panduit HSTT06-Q | Dry-Shrink HSTT06-Q Heat Shrink
Thin wall heat shrink on 25 foot reel, .06" (1.6mm) diameter, black cross-linked polyolefin.
Panduit - HSTT06-Q - Features
- Thin Wall Polyolefin Heat Shrink
- General purpose heat shrink tubing for dry locations
- Applications include insulating, protecting, harnessing and identifying wires
- Material Type: Crosslinked Polyolefin
- Shrink Ratio: 2:1
- Temperature Range: -67F to 275F (-55C to 135C)
- Flammability Rating: Flame Retardant EXCEPT Clear
- Voltage: 600V
- UL Recognized, CSA Certified
- Mil Spec: AMS-DTL-23053/5 Class 1 (Colors) Class 2 (Clear)
Specifications
Specifications
Panduit - HSTT06-Q - Product Categories
- Wire Routing, Management & Protection
- Heat Shrink Tubing
Panduit - HSTT06-Q - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | HSTT06-Q |
| Item Description | Dry-Shrink HSTT06-Q Heat Shrink |
| Product Type | Heat Shrink |
| Adhesive Lined | No |
| Color | Black |
| Material | Flame retardant polyolefin cross-linked except clear |
| Maximum Operating Temperature (°C) | 135 |
| Maximum Operating Temperature (°F) | 275 |
| Minimum Operating Temperature (°C) | -55 |
| Minimum Operating Temperature (°F) | -67 |
| Nominal Diameter (In.) | 0.063 |
| Nominal Diameter (mm) | 1.6 |
| Nominal Recovered Wall Thickness (In.) | 0.017 |
| Nominal Recovered Wall Thickness (mm) | 0.4 |
| Sub Brand | Dry-Shrink |
| Overall Length (In.) | 300 |
| Overall Length (ft.) | 25 |
| Overall Length (m) | 7.6 |
| Overall Length (mm) | 7600 |
| Standards Met | UL Recognized, CSA Approved, MIL SPEC |
| Shrink Ratio | 2:1 |
| Shrink Temperature (°C) | 90 |
| Shrink Temperature (°F) | 194 |
| Maximum Recovered Inside Diameter (In.) | 0.031 |
| Maximum Recovered Inside Diameter (mm) | 0.8 |
| Minimum Expanded Inside Diameter (In.) | 0.063 |
| Minimum Expanded Inside Diameter (mm) | 1.6 |
| Application | For Dry Locations |
Panduit - HSTT06-Q - Package Information
| UPC | 07498376542 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0737 |
| Standard. Ctn. Quantity | 10 |
| Standard. Ctn. Volume (cf) | 0.7366 |
Panduit - HSTT06-Q - Videos
| Video 1 | Click to View |
|---|
