Panduit HSTT12-C | Dry-Shrink Heat Shrink
Description
Description
Our tubing reel provides a convenient and cost-effective solution for insulating, protecting, and organizing wires and cables in various large projects and applications, with less bulk.

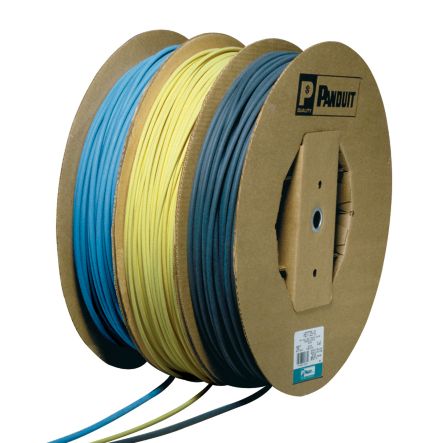

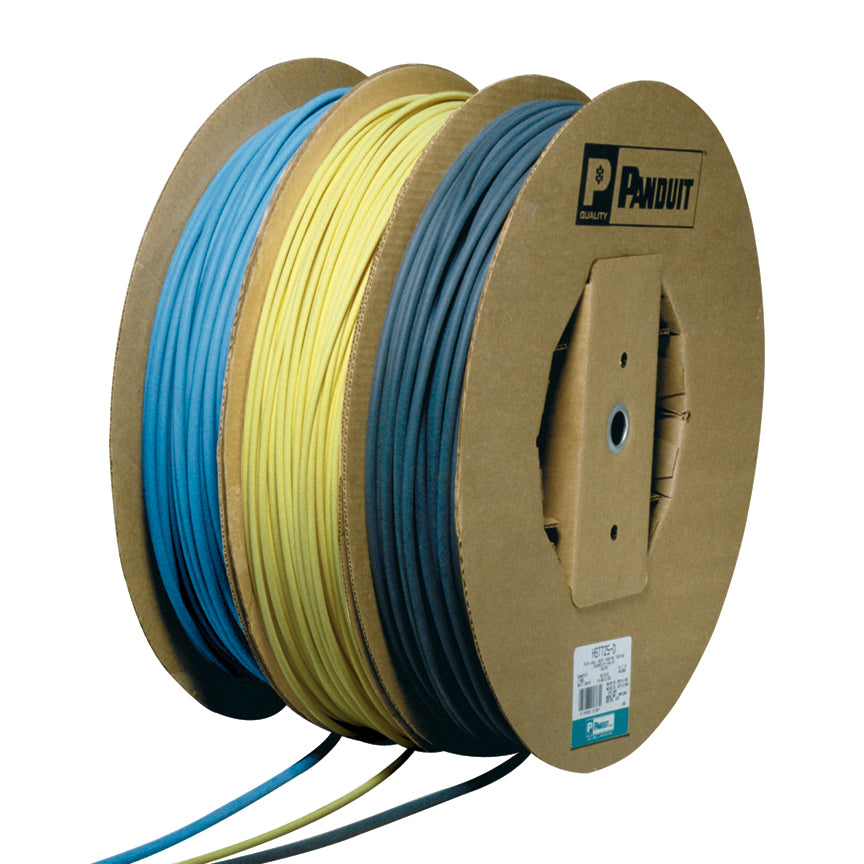

Thin wall heat shrink, .12" (3.2mm) diameter, black cross-linked polyolefin, 100 ft. (30.5m) per reel.
Panduit Dry-Shrink Heat Shrink Tubing, Type HSTT Standard, 600 VAC, 1/8 in Inner Dia Expanded, 0.062 in Inner Dia Recovered, Thin Wall, 0.02 in Wall Thickness Recovered, 2:1 Shrink, 100 ft Reel Length, -67 to 275 deg F, 194 deg F Shrink, Polyolefin, Black
Panduit - HSTT12-C - Features
- Without adhesive liner
- General Purpose heat shrink tubing for dry locations
- Applications include insulating, protecting, harnessing and identifying wires.
- Material Type: Crosslinked Polyolefin
- Shrink Ratio: 2:1
- Temperature Range: -67F to 275F (-55C to 135C)
- Flammability Rating: Flame retardant EXCEPT clear
- Voltage: 600 V
- UL Recognized, CSA Certified
- Mil Spec: AMS-DTL-23053/5 Class 1 (Colors) Class 2 (Clear)
Specifications
Specifications
Panduit - HSTT12-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | HSTT12-C |
| Decimal | .125 Inch |
| Dual | No |
| Heat Shrink | Yes Is Shrink Tubing |
| Mil Spec | Yes |
| Material/Type | Po-Polyolefin |
| Military Color Code | Black |
| Military Spec | Mil-I-23053/5 |
| Size By Inch Fractions | 1/8 Inch |
| Sleeving | No |
| Spiral Wrap | No |
| Ul | Yes |
| Wall Type| Single Or Dual | Single Wall |
| Zipper | No |
| UNSPSC Code | 39121723 |
| Product Type | Heat Shrink Tubing |
| Adhesive Lined | No |
| Color | Black |
| Material | Cross-Linked Polyolefin |
| Maximum Operating Temperature (°C) | 135 |
| Maximum Operating Temperature (°F) | 275 |
| Minimum Operating Temperature (°C) | -55 |
| Minimum Operating Temperature (°F) | -67 |
| Nominal Diameter (In.) | 0.125 |
| Nominal Diameter (mm) | 3.2 |
| Nominal Recovered Wall Thickness (In.) | 0.02 |
| Nominal Recovered Wall Thickness (mm) | 0.5 |
| Sub Brand | Dry-Shrink |
| Overall Length (In.) | 1200 |
| Overall Length (ft.) | 100 |
| Overall Length (m) | 30.5 |
| Overall Length (mm) | 30480 |
| Resistance Properties | Flame-Retardant |
| Standards Met | UL Recognized, CSA Approved, MIL SPEC |
| Shrink Ratio | 2:1 |
| Shrink Temperature (°C) | 90 |
| UPC | 07498374701 |
