Brand: Panduit
|
SKU:
DRC-041389
Panduit HSTT150-C | Dry-Shrink HSTT150-C Heatshrink, Black, PO, 100' L, 1.5" to 0.75" ID, PK1
Regular price
$310.11
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit HSTT150-C | Dry-Shrink HSTT150-C Heatshrink, Black, PO, 100...
Regular price
$310.11
Unit price
Description
Description
Panduit HSTT150-C | Dry-Shrink HSTT150-C Heatshrink, Black, PO, 100' L, 1.5" to 0.75" ID, PK1

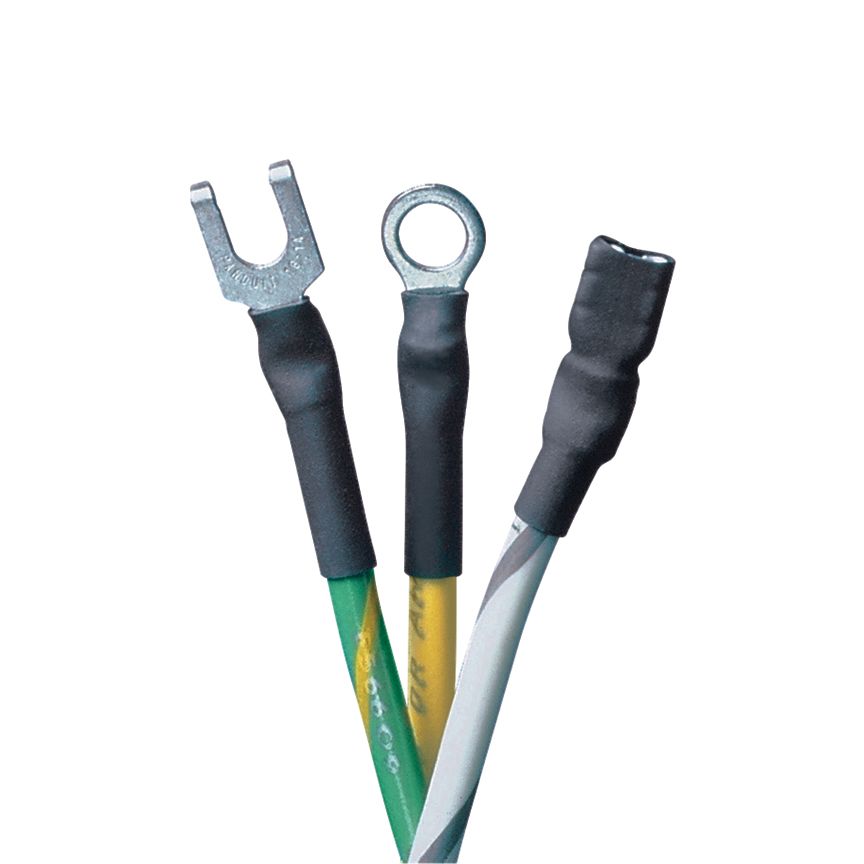

The HSTT150-C Thin Wall Heat Shrink Tubing shrinks around wires, connectors, joints, and terminals when heated to protect against abrasion. Applications include insulating and protecting wires/cables in indoor, dry locations. Shrink ratio: 2:1. Temperature range: -67°F to 275°F (-55°C to 135°C). Flame retardant, cross-linked polyolefin. 1.50” Diameter x 100’ Long (38.1 mm x 30.5 m). Color Black. 1 roll.
Specifications
Specifications
Panduit - HSTT150-C - Product Categories
- Wire Routing, Management & Protection
- Heat Shrink Tubing
Panduit - HSTT150-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | HSTT150-C |
| Item Description | Dry-Shrink HSTT150-C Heatshrink, Black, PO, 100' L, 1.5" to 0.75" ID, PK1 |
| Product Type | Heat Shrink Tubing |
| Adhesive Lined | No |
| Color | Black |
| Material | Cross-Linked Polyolefin |
| Maximum Operating Temperature (°C) | 135 |
| Maximum Operating Temperature (°F) | 275 |
| Minimum Operating Temperature (°C) | -55 |
| Minimum Operating Temperature (°F) | -67 |
| Nominal Diameter (In.) | 1.5 |
| Nominal Diameter (mm) | 38.1 |
| Nominal Recovered Wall Thickness (In.) | 0.04 |
| Nominal Recovered Wall Thickness (mm) | 1 |
| Sub Brand | Dry-Shrink |
| Overall Length (In.) | 1200 |
| Overall Length (ft.) | 100 |
| Overall Length (m) | 30.5 |
| Overall Length (mm) | 30500 |
| Resistance Properties | Flame-Retardant |
| Standards Met | UL: E122770; Mil Spec: AMS-DTL-23053/5 Class 1 |
| Shrink Ratio | 2:1 |
| Shrink Temperature (°C) | 90 |
| Shrink Temperature (°F) | 194 |
| Maximum Recovered Inside Diameter (In.) | 0.75 |
| Maximum Recovered Inside Diameter (mm) | 19.1 |
| Minimum Expanded Inside Diameter (In.) | 1.5 |
| Minimum Expanded Inside Diameter (mm) | 38.1 |
| Application | For Dry Locations; Insulating and protecting wires and cables |
| Part Features | 2:1 shrink ratio for dry applications. Provides excellent abrasion protection and color coding. Flexible |
Brand Name - HSTT150-C - Package Information
| UPC | 07498391493 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.9045 |
| Standard Ctn. Quantity | 2 |
| Standard Ctn. Volume (cf) | 1.8090 |
Brand Name - HSTT150-C - Videos
| Video URL 1 | Click to View |
|---|
