Brand: Panduit
|
SKU:
HSTT200-L

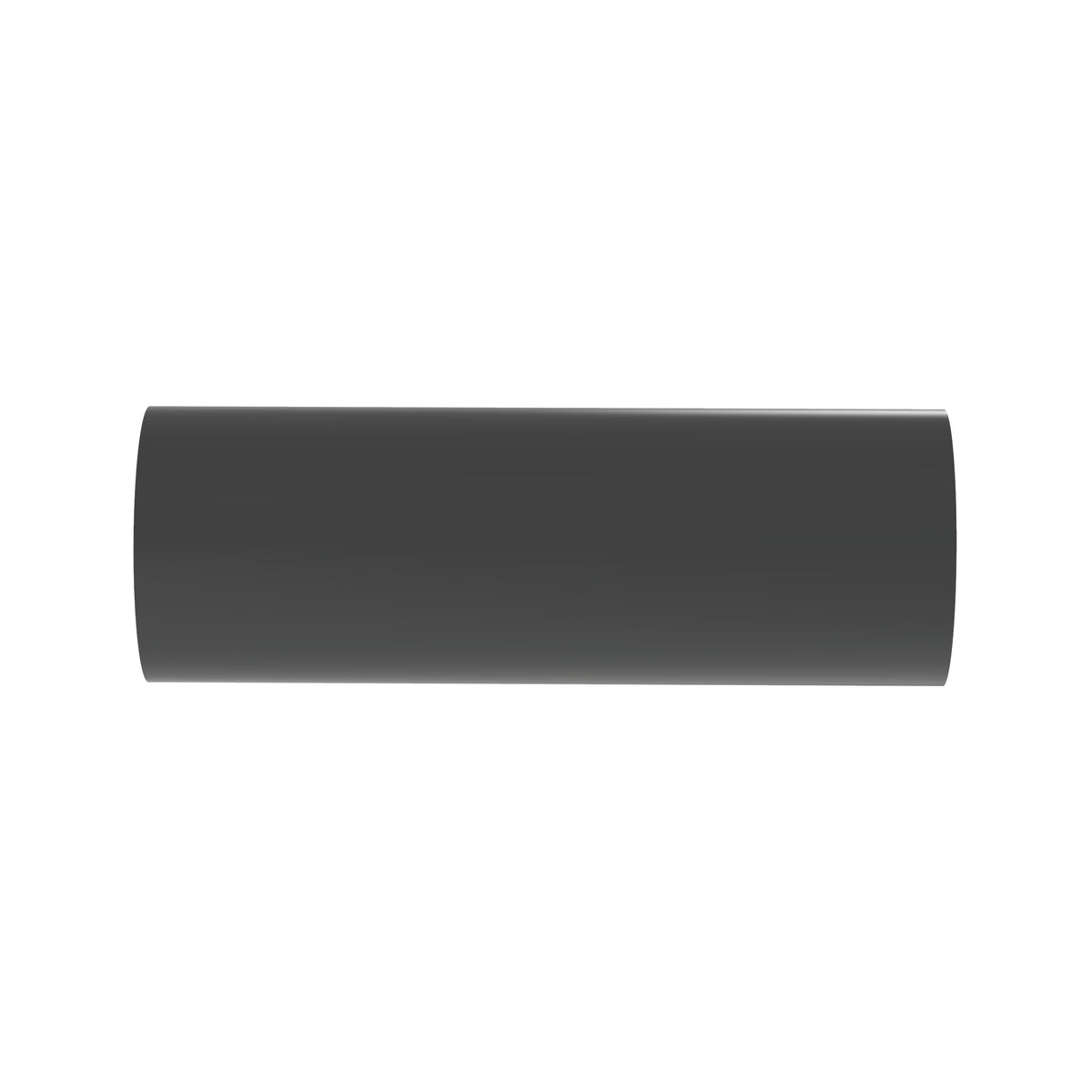

Panduit HSTT200-L | Heat Shrink | UPC - 07498391494
Regular price
$329.31
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit HSTT200-L | Heat Shrink | UPC - 07498391494
Regular price
$329.31
Unit price
Description
Description
Panduit Dry-Shrink Heat Shrink Tubing, Type HSTT Standard, 600 VAC, 2 in Inner Dia Expanded, 1 in Inner Dia Recovered, Thin Wall, 0.045 in Wall Thickness Recovered, 2:1 Shrink, 50 ft Reel Length, -67 to 275 deg F, 194 deg F Shrink, Polyolefin, Black
Features + Benefits
- Flexible, flame retardant UV resistant (black only) class 2 (clear) is not flame-retardant
Panduit HSTT200-L | Heat Shrink | UPC - 07498391494 Key Specs
| Product Type | Heat Shrink |
| Adhesive Lined | No |
| Color | Black |
| Material | Cross-Linked Polyolefin |
| Maximum Operating Temperature (°C) | 135 |
| Maximum Operating Temperature (°F) | 275 |
| Minimum Operating Temperature (°C) | -55 |
| Minimum Operating Temperature (°F) | -67 |
| Nominal Diameter (In.) | 2 |
| Nominal Diameter (mm) | 50.8 |
| Nominal Recovered Wall Thickness (In.) | 0.045 |
| Nominal Recovered Wall Thickness (mm) | 1.1 |
| Sub Brand | Dry-Shrink |
| Overall Length (In.) | 600 |
| Overall Length (ft.) | 50 |
| Overall Length (m) | 15.2 |
| Overall Length (mm) | 15200 |
| Resistance Properties | Flame Retardant |
| Standards Met | UL: E122770; Mil Spec: AMS-DTL-23053/5 Class 1 |
| Shrink Ratio | 2:1 |
Panduit HSTT200-L | Heat Shrink | UPC - 07498391494 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - HSTT05-48-Q Product Page | Download and View |
| Part Drawings | HSTT Thin Wall Heat Shrink: GB0239KH | Download and View |
| MSDS | MSDS- Heat Shrinkable Tubing | Download and View |
Panduit HSTT200-L | Heat Shrink | UPC - 07498391494 Environmental Information
| Panduit's RoHS Statement | Download and View |
