Brand: Panduit
|
SKU:
HSTT25-48-QC
Panduit HSTT25-48-QC Heat Shrink Thin, .25";(6.4mm) Diameter, Clear, 4 FT. Pieces, Pack of 5
Regular price
$5.39
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit HSTT25-48-QC Heat Shrink Thin, .25";(6.4mm) Diameter, ...
Regular price
$5.39
Unit price
Description
Description
Panduit HSTT25-48-QC | Dry-Shrink HSTT25-48-QC Heatshrink, Clear, PO, 4' L, 0.25" to 0.125" ID, PK25

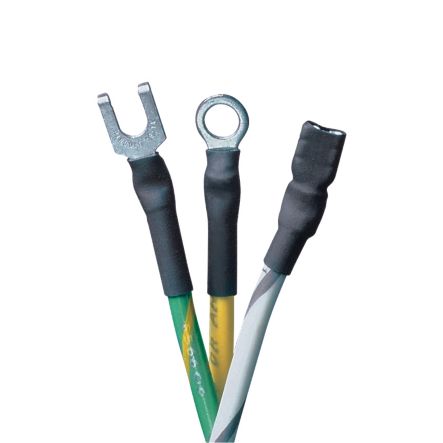

The HSTT25-48-QC Thin Wall Heat Shrink Tubing shrinks around wires, connectors, joints, and terminals when heated to protect against abrasion. Applications include insulating and protecting wires/cables in indoor, dry locations. Shrink ratio: 2:1. Temperature range: -67°F to 275°F (-55°C to 135°C). Cross-linked polyolefin. 0.25" Diameter x 4’ Long (6.4 mm x 1.2 m). Color Clear. 25 per package.
Specifications
Specifications
Panduit - HSTT25-48-QC - Product Categories
- Wire Routing, Management & Protection
- Heat Shrink Tubing
Panduit - HSTT25-48-QC - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | HSTT25-48-QC |
| Item Description | Dry-Shrink HSTT25-48-QC Heatshrink, Clear, PO, 4' L, 0.25" to 0.125" ID, PK25 |
| Product Type | Heat Shrink |
| Adhesive Lined | No |
| Color | Clear |
| Material | Cross-Linked Polyolefin |
| Maximum Operating Temperature (°C) | 135 |
| Maximum Operating Temperature (°F) | 275 |
| Minimum Operating Temperature (°C) | -55 |
| Minimum Operating Temperature (°F) | -67 |
| Nominal Diameter (In.) | 0.25 |
| Nominal Diameter (mm) | 6.4 |
| Nominal Recovered Wall Thickness (In.) | 0.025 |
| Nominal Recovered Wall Thickness (mm) | 0.6 |
| Sub Brand | Dry-Shrink |
| Overall Length (In.) | 48 |
| Overall Length (ft.) | 4 |
| Overall Length (m) | 1.2 |
| Overall Length (mm) | 1219.2 |
| Standards Met | Mil Spec: AMS-DTL-23053/5 Class 2 |
| Shrink Ratio | 2:1 |
| Shrink Temperature (°C) | 90 |
| Shrink Temperature (°F) | 194 |
| Maximum Recovered Inside Diameter (In.) | 0.125 |
| Maximum Recovered Inside Diameter (mm) | 3.2 |
| Minimum Expanded Inside Diameter (In.) | 0.25 |
| Minimum Expanded Inside Diameter (mm) | 6.4 |
| Application | For Dry Locations; Insulating and protecting wires and cables |
| Part Features | 2:1 shrink ratio for dry applications. Provides excellent abrasion protection and color coding. Flexible |
Panduit - HSTT25-48-QC - Package Information
| UPC | 07498390662 |
|---|---|
| Standard Package Quantity | 25 |
| Standard Package Volume (cf) | 0.1733 |
| Standard. Ctn. Quantity | 0 |
| Standard. Ctn. Volume (cf) | 0.0000 |
Panduit - HSTT25-48-QC - Videos
| Video 1 | Click to View |
|---|
