Brand: Panduit
|
SKU:
282289
Panduit HSTT25-C2 | Dry-Shrink Heat Shrink
Regular price
$1.46
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit HSTT25-C2 | Dry-Shrink Heat Shrink
Regular price
$1.46
Unit price
Description
Description

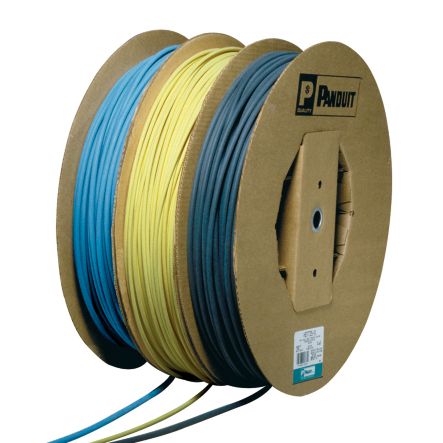

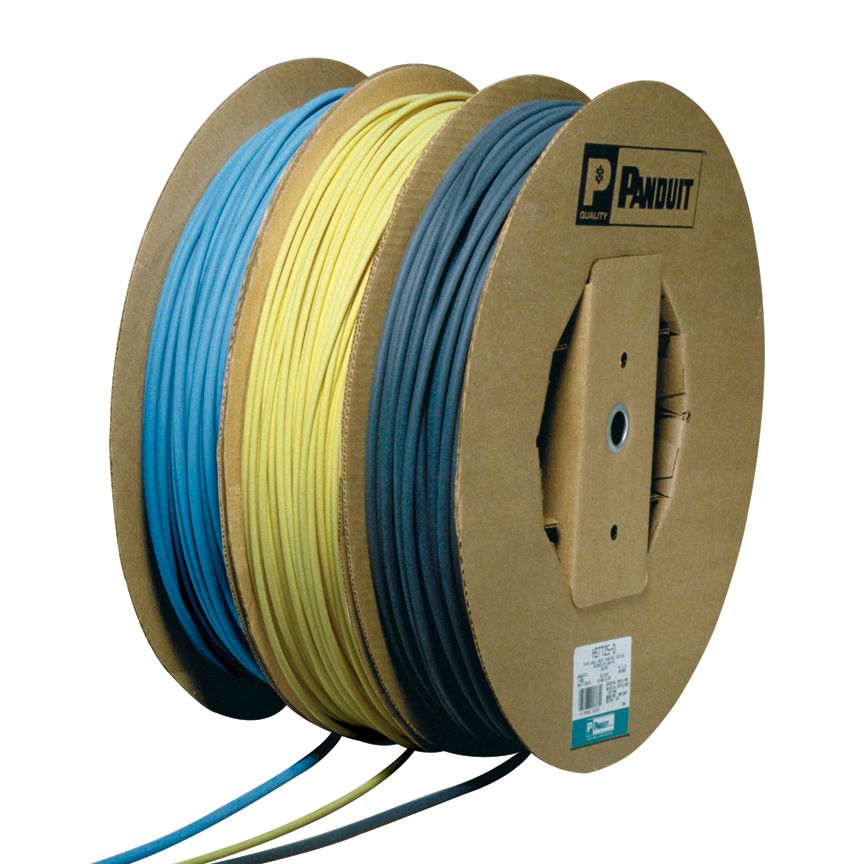

Panduit HSTT25-C2 | Dry-Shrink Heat Shrink
Our tubing reel provides a convenient and cost-effective solution for insulating, protecting, and organizing wires and cables in various large projects and applications, with less bulk.
Panduit Dry-Shrink Heat Shrink Tubing, Type HSTT Standard, 600 VAC, 1/4 in Inner Dia Expanded, 1/8 in Inner Dia Recovered, Thin Wall, 0.025 in Wall Thickness Recovered, 2:1 Shrink, 100 ft Reel Length, -67 to 275 deg F, 194 deg F Shrink, Polyolefin, Red
Specifications
Specifications
Panduit - HSTT25-C2 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | HSTT25-C2 |
| Product Type | Heat Shrink Tubing |
| Adhesive Lined | No |
| Color | Red |
| Material | Cross-Linked Polyolefin |
| Maximum Operating Temperature (°C) | 135 |
| Maximum Operating Temperature (°F) | 275 |
| Minimum Operating Temperature (°C) | -55 |
| Minimum Operating Temperature (°F) | -67 |
| Nominal Diameter (In.) | 0.25 |
| Nominal Diameter (mm) | 6.4 |
| Nominal Recovered Wall Thickness (In.) | 0.025 |
| Nominal Recovered Wall Thickness (mm) | 0.6 |
| Sub Brand | Dry-Shrink |
| Overall Length (In.) | 1200 |
| Overall Length (ft.) | 100 |
| Overall Length (m) | 30.5 |
| Overall Length (mm) | 30480 |
| Resistance Properties | Flame-Retardant |
| Standards Met | UL Recognized, CSA Approved, MIL SPEC |
| Shrink Ratio | 2:1 |
| Shrink Temperature (°C) | 90 |
| UPC | 07498374711 |
Panduit - HSTT25-C2 - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 3926.90.9985 |
Panduit - HSTT25-C2 - Videos
| Panduit HSTT25-C2 Video 1 | Click to View |
|---|
