Brand: Panduit
|
SKU:
HSTT38-C4
Panduit HSTT38-C4 | Dry-Shrink HSTT38-C4 Heat Shrink
Regular price
$121.49
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit HSTT38-C4 | Dry-Shrink HSTT38-C4 Heat Shrink
Regular price
$121.49
Unit price
Description
Description

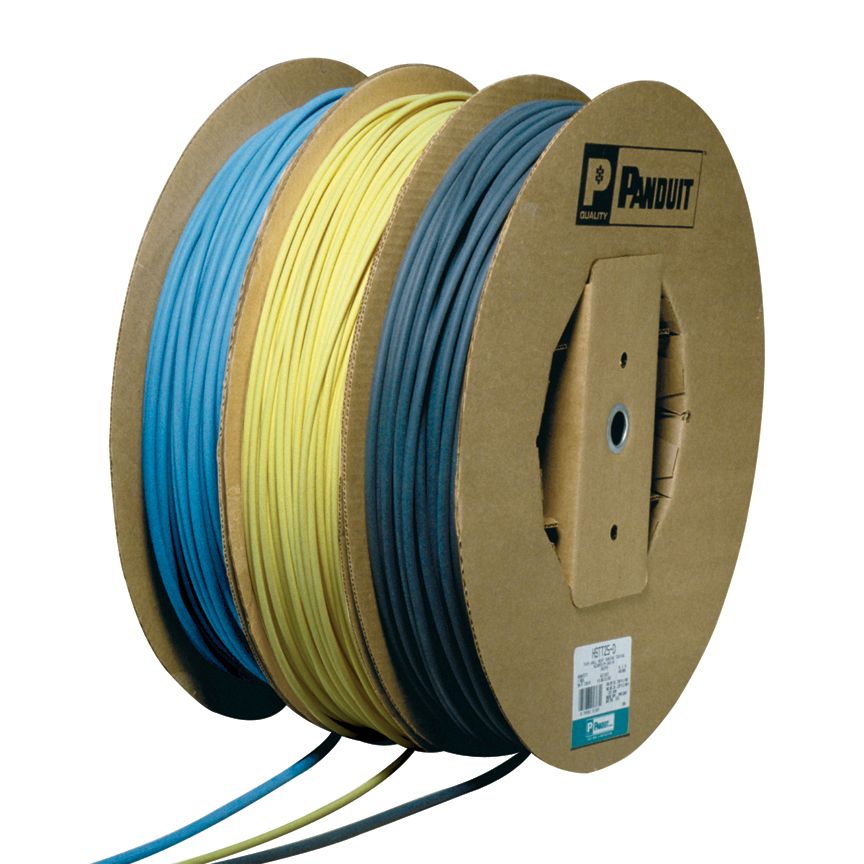

Panduit HSTT38-C4 | Dry-Shrink HSTT38-C4 Heat Shrink
Thin wall heat shrink, .38" (9.5mm) diameter, yellow cross-linked polyolefin, 100 ft. (30.5m) per reel.
Specifications
Specifications
Panduit - HSTT38-C4 - Product Categories
- Wire Routing, Management & Protection
- Heat Shrink Tubing
Panduit - HSTT38-C4 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | HSTT38-C4 |
| Item Description | Dry-Shrink HSTT38-C4 Heat Shrink |
| Product Type | Heat Shrink Tubing |
| Adhesive Lined | No |
| Color | Yellow |
| Material | Cross-Linked Polyolefin |
| Maximum Operating Temperature (°C) | 135 |
| Maximum Operating Temperature (°F) | 275 |
| Minimum Operating Temperature (°C) | -55 |
| Minimum Operating Temperature (°F) | -67 |
| Nominal Diameter (In.) | 0.375 |
| Nominal Diameter (mm) | 9.5 |
| Nominal Recovered Wall Thickness (In.) | 0.025 |
| Nominal Recovered Wall Thickness (mm) | 0.6 |
| Sub Brand | Dry-Shrink |
| Overall Length (In.) | 1200 |
| Overall Length (ft.) | 100 |
| Overall Length (m) | 30.5 |
| Overall Length (mm) | 30480 |
| Resistance Properties | Flame-Retardant |
| Standards Met | UL Recognized, CSA Approved, MIL SPEC |
| Shrink Ratio | 2:1 |
| Shrink Temperature (°C) | 90 |
| Shrink Temperature (°F) | 194 |
| Maximum Recovered Inside Diameter (In.) | 0.187 |
| Maximum Recovered Inside Diameter (mm) | 4.8 |
| Minimum Expanded Inside Diameter (In.) | 0.375 |
| Minimum Expanded Inside Diameter (mm) | 9.5 |
| Application | For Dry Locations |
Brand Name - HSTT38-C4 - Package Information
| UPC | 07498384893 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0397 |
| Standard Ctn. Quantity | 10 |
| Standard Ctn. Volume (cf) | 0.3970 |
Brand Name - HSTT38-C4 - Videos
| Video URL 1 | Click to View |
|---|
