Brand: Panduit
|
SKU:
HSTT38-Q

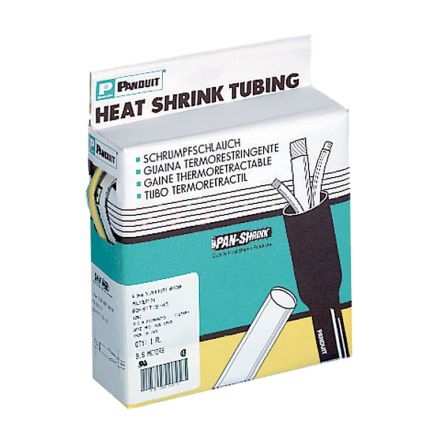

Panduit HSTT38-Q Thin wall heat shrink on 25 foot reel, .38"; (9.5mm) diameter, black cross-linked polyolefin.
Regular price
$53.52
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit HSTT38-Q Thin wall heat shrink on 25 foot reel, .38"; ...
Regular price
$53.52
Unit price
Description
Description
Panduit HSTT38-Q | Dry-Shrink HSTT38-Q Heat Shrink
Thin wall heat shrink on 25 foot reel, .38" (9.5mm) diameter, black cross-linked polyolefin.
Specifications
Specifications
Panduit - HSTT38-Q - Product Categories
- Wire Routing, Management & Protection
- Heat Shrink Tubing
Panduit - HSTT38-Q - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | HSTT38-Q |
| Item Description | Dry-Shrink HSTT38-Q Heat Shrink |
| Product Type | Heat Shrink |
| Adhesive Lined | No |
| Color | Black |
| Material | Flame retardant polyolefin cross-linked except clear |
| Maximum Operating Temperature (°C) | 135 |
| Maximum Operating Temperature (°F) | 275 |
| Minimum Operating Temperature (°C) | -55 |
| Minimum Operating Temperature (°F) | -67 |
| Nominal Diameter (In.) | 0.375 |
| Nominal Diameter (mm) | 9.5 |
| Nominal Recovered Wall Thickness (In.) | 0.025 |
| Nominal Recovered Wall Thickness (mm) | 0.6 |
| Sub Brand | Dry-Shrink |
| Overall Length (In.) | 300 |
| Overall Length (ft.) | 25 |
| Overall Length (m) | 7.6 |
| Overall Length (mm) | 7620 |
| Standards Met | UL Recognized, CSA Approved, MIL SPEC |
| Shrink Ratio | 2:1 |
| Shrink Temperature (°C) | 90 |
| Shrink Temperature (°F) | 194 |
| Maximum Recovered Inside Diameter (In.) | 0.187 |
| Maximum Recovered Inside Diameter (mm) | 4.8 |
| Minimum Expanded Inside Diameter (In.) | 0.375 |
| Minimum Expanded Inside Diameter (mm) | 9.5 |
| Application | For Dry Locations |
Panduit - HSTT38-Q - Package Information
| UPC | 07498376567 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0737 |
| Standard. Ctn. Quantity | 10 |
| Standard. Ctn. Volume (cf) | 0.7366 |
