Brand: Panduit
|
SKU:
HSTT400-48-2
Panduit HSTT400-48-2 | Dry-Shrink HSTT400-48-2 Heat Shrink
Regular price
$253.03
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit HSTT400-48-2 | Dry-Shrink HSTT400-48-2 Heat Shrink
Regular price
$253.03
Unit price
Brand: Panduit
|
SKU:
HSTT400-48-2
Regular price
$253.03
Unit price
Shipping calculated at checkout.
Description
Description
Panduit HSTT400-48-2 | Dry-Shrink HSTT400-48-2 Heat Shrink

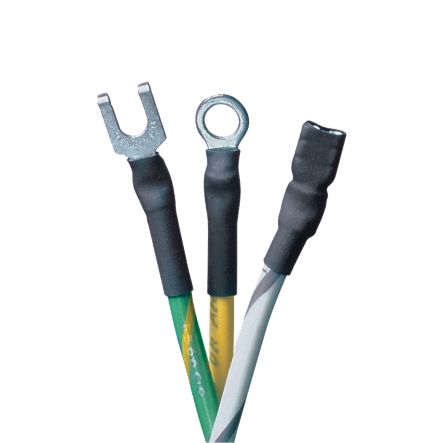

Thin wall heat shrink, 4" (101.6mm) diameter, black cross-linked polyolefin, 2 pc. package quantity.
Panduit - HSTT400-48-2 - Features
- Thin Wall Polyolefin Heat Shrink
- Shrink ratio of 2:1 insulates a wide range of diameters and irregular shapes
- Cross-linked, UV resistant material improves flame retardancy, chemical, and temperature resistance
Specifications
Specifications
Panduit - HSTT400-48-2 - Product Categories
- Wire Routing, Management & Protection
- Heat Shrink Tubing
Panduit - HSTT400-48-2 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | HSTT400-48-2 |
| Item Description | Dry-Shrink HSTT400-48-2 Heat Shrink |
| Product Type | Heat Shrink |
| Adhesive Lined | No |
| Color | Black |
| Material | Flame retardant polyolefin cross-linked except clear |
| Maximum Operating Temperature (°C) | 135 |
| Maximum Operating Temperature (°F) | 275 |
| Minimum Operating Temperature (°C) | -55 |
| Minimum Operating Temperature (°F) | -67 |
| Nominal Diameter (In.) | 4 |
| Nominal Diameter (mm) | 101.6 |
| Nominal Recovered Wall Thickness (In.) | 0.055 |
| Nominal Recovered Wall Thickness (mm) | 1.4 |
| Sub Brand | Dry-Shrink |
| Overall Length (In.) | 48 |
| Overall Length (ft.) | 4 |
| Overall Length (m) | 1.2 |
| Overall Length (mm) | 1219 |
| Standards Met | UL Recognized, CSA Approved, MIL SPEC |
| Shrink Ratio | 2:1 |
| Shrink Temperature (°C) | 90 |
| Shrink Temperature (°F) | 194 |
| Maximum Recovered Inside Diameter (In.) | 2 |
| Maximum Recovered Inside Diameter (mm) | 50.8 |
| Minimum Expanded Inside Diameter (In.) | 4 |
| Minimum Expanded Inside Diameter (mm) | 101.6 |
| Application | For Dry Locations |
Panduit - HSTT400-48-2 - Package Information
| UPC | 07498390599 |
|---|---|
| Standard Package Quantity | 2 |
| Standard Package Volume (cf) | 0.3893 |
| Standard. Ctn. Quantity | 0 |
| Standard. Ctn. Volume (cf) | 0.0000 |
Panduit - HSTT400-48-2 - Videos
| Video 1 | Click to View |
|---|
