Panduit HSTT4A125-48-5 | Heat Shrink | UPC - 07498311449
Description
Description

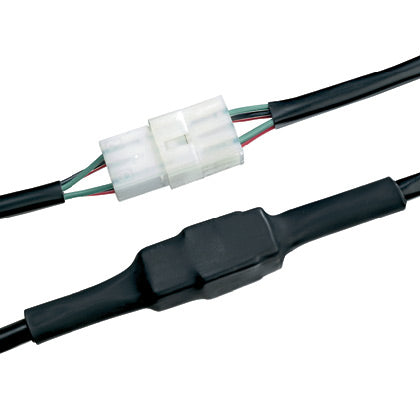

Heat shrink with a 4:1 shrink ratio shall be used to insulate and protect oversized electrical and electronic components, cables, terminals and connectors. This tube shall be recovered with a heat gun that provides consistent shrinking without burning or charring the outer wall of the tube. The heat shrink tube shall include an adhesive inner wall, which seals and protects components from moisture and corrosion. The heat shrink tube shall be UL Recognized and RoHS Compliant to assure quality material and to provide confidence that the product meets the application requirements.
Panduit Heat Shrink Tubing, Adhesive Lined Cross Linked, Series: HSTT4A, 600 VAC, 1.26 in ID Expanded, 0.315 in ID Recovered, Thin Wall, 0.1 in Wall Thickness Recovered, 4:1 Shrink Ratio, 4 ft Length, -67 to 257 deg F, 248 deg F Shrink, Polyolefin, Black
Features + Benefits
- Variety of diameters
- Convenient packaging
- Quality material
Panduit Panduit HSTT4A125-48-5 | Heat Shrink | UPC - 07498311449 Key Specs
| Product Type | Heat Shrink |
| Color | Black |
| Material | Adhesive Lined Irradiated Cross-Linked Polyolefin |
| Nominal Diameter (mm) | 32 |
| Nominal Recovered Wall Thickness (In.) | 0.1 |
| Nominal Recovered Wall Thickness (mm) | 2.5 |
| Sub Brand | Damp-Shrink |
| Overall Length (ft.) | 4 |
| Overall Length (m) | 1.2 |
| Shrink Ratio | 4:1 |
| Minimum Expanded Inside Diameter (In.) | 1.26 |
| Minimum Expanded Inside Diameter (mm) | 32 |
Panduit Panduit HSTT4A125-48-5 | Heat Shrink | UPC - 07498311449 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - HSTT4A15-48-Q Product Page | Download and View |
| Specification Sheets | Specification Sheet - 4-1 Heat Shrink Tubing Spec Sheet (WW-WASP08) | Download and View |
| Part Drawings | Part Drawing - PDF - HSTT4A Flex Adhes Thin Wall Heat Shrink | Download and View |
Panduit Panduit HSTT4A125-48-5 | Heat Shrink | UPC - 07498311449 Environmental Information
| Panduit's RoHS Statement | Download and View |
