Panduit HSTT4A47-48-Q | Heat Shrink | UPC - 07498311445
Description
Description

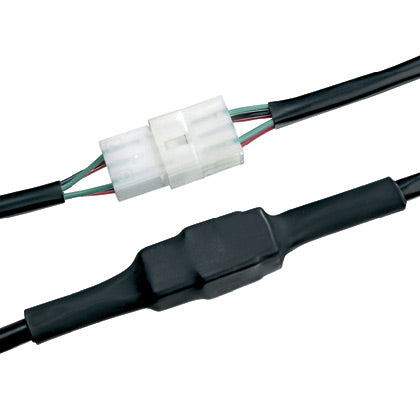

Heat shrink with a 4:1 shrink ratio shall be used to insulate and protect oversized electrical and electronic components, cables, terminals and connectors. This tube shall be recovered with a heat gun that provides consistent shrinking without burning or charring the outer wall of the tube. The heat shrink tube shall include an adhesive inner wall, which seals and protects components from moisture and corrosion. The heat shrink tube shall be UL Recognized and RoHS Compliant to assure quality material and to provide confidence that the product meets the application requirements.
Panduit Heat Shrink Tubing, Adhesive Lined Cross Linked Standard, Series: HSTT4A, 600 VAC, 0.472 in ID Expanded, 0.118 in ID Recovered, Thin Wall, 0.055 in Wall Thickness Recovered, 4:1 Shrink Ratio, 4 ft Length, -67 to 257 deg F, 248 deg F Shrink, Polyolefin, Black
Features + Benefits
- Made of flame-retardant adhesive lined black cross linked polyolefin
- Flexible tubing with an adhesive inner wall which seals and protects components from moisture and corrosion
- Variety of diameters
- Convenient packaging
- Quality material
Panduit Panduit HSTT4A47-48-Q | Heat Shrink | UPC - 07498311445 Key Specs
| Product Type | Heat Shrink |
| Color | Black |
| Material | Adhesive Lined Irradiated Cross-Linked Polyolefin |
| Nominal Diameter (mm) | 12 |
| Nominal Recovered Wall Thickness (In.) | 0.055 |
| Nominal Recovered Wall Thickness (mm) | 1.4 |
| Sub Brand | Damp-Shrink |
| Overall Length (ft.) | 4 |
| Overall Length (m) | 1.2 |
| Shrink Ratio | 4:1 |
| Minimum Expanded Inside Diameter (In.) | 0.472 |
| Minimum Expanded Inside Diameter (mm) | 12 |
Panduit Panduit HSTT4A47-48-Q | Heat Shrink | UPC - 07498311445 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - HSTT4A15-48-Q Product Page | Download and View |
| Specification Sheets | Specification Sheet - 4-1 Heat Shrink Tubing Spec Sheet (WW-WASP08) | Download and View |
| Part Drawings | Part Drawing - PDF - HSTT4A Flex Adhes Thin Wall Heat Shrink | Download and View |
Panduit Panduit HSTT4A47-48-Q | Heat Shrink | UPC - 07498311445 Environmental Information
| Panduit's RoHS Statement | Download and View |
