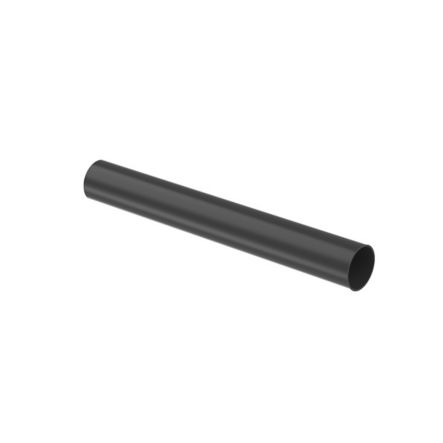

Panduit HSTT75-48-5 | Heat Shrink Thin, .75";(19.0mm) Diameter, Black, 4 FT. Pieces
Regular price
$8.10
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit HSTT75-48-5 | Heat Shrink Thin, .75";(19.0mm) Diameter...
Regular price
$8.10
Unit price
Description
Description
Panduit HSTT75-48-5 | Dry-Shrink HSTT75-48-5 Heatshrink, Black, PO, 4' L, 0.75" to 0.375" ID, PK5

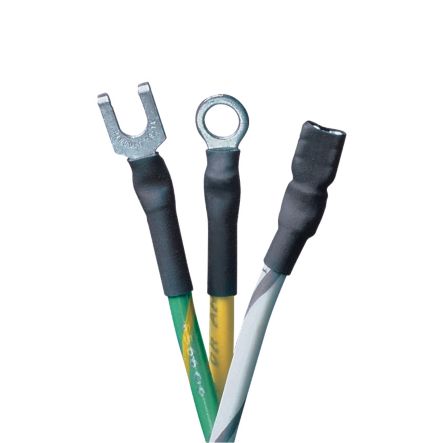

The HSTT75-48-5 Thin Wall Heat Shrink Tubing shrinks around wires, connectors, joints, and terminals when heated to protect against abrasion. Applications include insulating and protecting wires/cables in indoor, dry locations. Shrink ratio: 2:1. Temperature range: -67°F to 275°F (-55°C to 135°C). Flame retardant, cross-linked polyolefin. 0.75" Diameter x 4’ Long (19.1 mm x 1.2 m). Color Black. 5 per package.
Specifications
Specifications
Panduit - HSTT75-48-5 - Product Categories
- Wire Routing, Management & Protection
- Heat Shrink Tubing
Panduit - HSTT75-48-5 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | HSTT75-48-5 |
| Item Description | Dry-Shrink HSTT75-48-5 Heatshrink, Black, PO, 4' L, 0.75" to 0.375" ID, PK5 |
| Product Type | Heat Shrink |
| Adhesive Lined | No |
| Color | Black |
| Material | Cross-Linked Polyolefin |
| Maximum Operating Temperature (°C) | 135 |
| Maximum Operating Temperature (°F) | 275 |
| Minimum Operating Temperature (°C) | -55 |
| Minimum Operating Temperature (°F) | -67 |
| Nominal Diameter (In.) | 0.75 |
| Nominal Diameter (mm) | 19.1 |
| Nominal Recovered Wall Thickness (In.) | 0.03 |
| Nominal Recovered Wall Thickness (mm) | 0.8 |
| Sub Brand | Dry-Shrink |
| Overall Length (In.) | 48 |
| Overall Length (ft.) | 4 |
| Overall Length (m) | 1.2 |
| Overall Length (mm) | 1219.2 |
| Resistance Properties | Flame Retardant |
| Standards Met | UL: E122770; Mil Spec: AMS-DTL-23053/5 Class 1 |
| Shrink Ratio | 2:1 |
| Shrink Temperature (°C) | 90 |
| Shrink Temperature (°F) | 194 |
| Maximum Recovered Inside Diameter (In.) | 0.375 |
| Maximum Recovered Inside Diameter (mm) | 9.5 |
| Minimum Expanded Inside Diameter (In.) | 0.75 |
| Minimum Expanded Inside Diameter (mm) | 19.1 |
| Application | For Dry Locations; Insulating and protecting wires and cables |
| Part Features | 2:1 shrink ratio for dry applications. Provides excellent abrasion protection and color coding. Flexible |
Panduit - HSTT75-48-5 - Package Information
| UPC | 07498390594 |
|---|---|
| Standard Pkg. Qty. | 5 |
| Standard Package Volume (cf) | 0.1733 |
| Standard Ctn. Qty. | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
Panduit - HSTT75-48-5 - Videos
| Video 1 | Click to View |
|---|
