Brand: Panduit
|
SKU:
HSTT75-Q

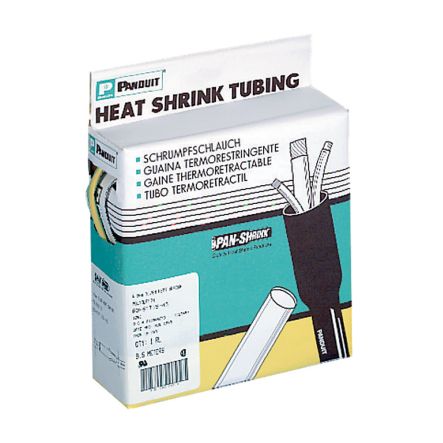

Panduit HSTT75-Q Heat Shrink Tubing, Thin, .75";(19.0mm) Diameter, Black, 25 FT. Reel
Regular price
$84.86
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit HSTT75-Q Heat Shrink Tubing, Thin, .75";(19.0mm) Diame...
Regular price
$84.86
Unit price
Description
Description
Panduit HSTT75-Q | Dry-Shrink HSTT75-Q Heat Shrink
Thin wall heat shrink on 25 foot reel, .75" (19.0mm) diameter, black cross-linked polyolefin.
Panduit - HSTT75-Q - Features
- General purpose heat shrink tubing for dry locations
- Applications include insulating, protecting, harnessing and identifying wires
- Material Type: Crosslinked Polyolefin
- Shrink Ratio: 2:1
- Temperature Range: -67F to 275F (-55C to 135C)
- Flammability Rating: Flame Retardant EXCEPT Clear
- Voltage: 600V
- UL Recognized, CSA Certified
- Mil Spec: AMS-DTL-23053/5 Class 1 (Colors) Class 2 (Clear)
Specifications
Specifications
Panduit - HSTT75-Q - Product Categories
- Wire Routing, Management & Protection
- Heat Shrink Tubing
Panduit - HSTT75-Q - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | HSTT75-Q |
| Item Description | Dry-Shrink HSTT75-Q Heat Shrink |
| Product Type | Heat Shrink |
| Adhesive Lined | No |
| Color | Black |
| Material | Flame retardant polyolefin cross-linked except clear |
| Maximum Operating Temperature (°C) | 135 |
| Maximum Operating Temperature (°F) | 275 |
| Minimum Operating Temperature (°C) | -55 |
| Minimum Operating Temperature (°F) | -67 |
| Nominal Diameter (In.) | 0.75 |
| Nominal Diameter (mm) | 19.1 |
| Nominal Recovered Wall Thickness (In.) | 0.03 |
| Nominal Recovered Wall Thickness (mm) | 0.8 |
| Sub Brand | Dry-Shrink |
| Overall Length (In.) | 300 |
| Overall Length (ft.) | 25 |
| Overall Length (m) | 7.6 |
| Overall Length (mm) | 7620 |
| Standards Met | UL Recognized, CSA Approved, MIL SPEC |
| Shrink Ratio | 2:1 |
| Shrink Temperature (°C) | 90 |
| Shrink Temperature (°F) | 194 |
| Maximum Recovered Inside Diameter (In.) | 0.375 |
| Maximum Recovered Inside Diameter (mm) | 9.5 |
| Minimum Expanded Inside Diameter (In.) | 0.75 |
| Minimum Expanded Inside Diameter (mm) | 19.1 |
| Application | For Dry Locations |
Panduit - HSTT75-Q - Package Information
| UPC | 07498376577 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0740 |
| Standard. Ctn. Quantity | 10 |
| Standard. Ctn. Volume (cf) | 0.7402 |
Panduit - HSTT75-Q - Videos
| Video 1 | Click to View |
|---|
