Brand: Panduit
|
SKU:
HSTTA100-48-5

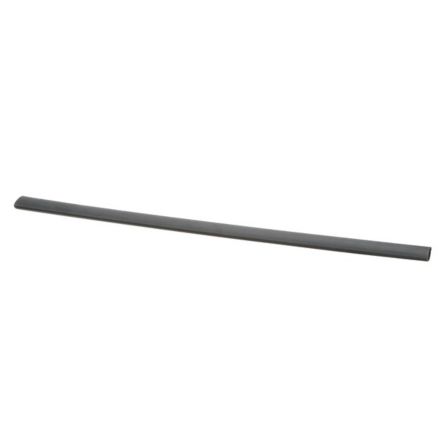

Panduit HSTTA100-48-5 Heat Shrink Thin, Dual Wall Adhesive, 1";(25.4mm) Diameter, Black, 4 FT. Pieces, 5 piece package
Regular price
$48.31
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit HSTTA100-48-5 Heat Shrink Thin, Dual Wall Adhesive, 1"...
Regular price
$48.31
Unit price
Brand: Panduit
|
SKU:
HSTTA100-48-5
Regular price
$48.31
Unit price
Shipping calculated at checkout.
Description
Description
Panduit HSTTA100-48-5 | Damp-Shrink HSTTA100-48-5 Heatshrink, Black, Adh. Lined PO, 4' L, 1" to .32" ID

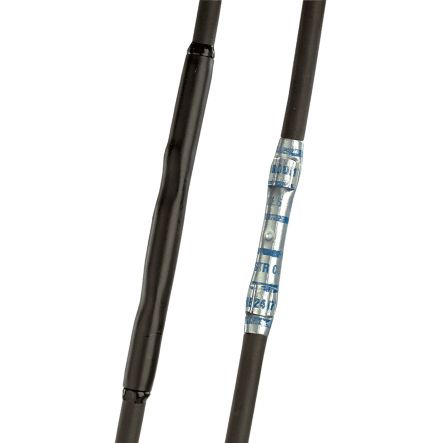

The HSTTA100-48-5 Heat Shrink features an adhesive lined inner wall that seals and provides excellent protection against moisture. Applications include insulating and protecting wires/cables in damp locations. Voltage rating: 600 V. Shrink ratio: 3:1. Temperature range: -67°F to 230°F (-55°C to 110°C). Cross-linked Polyolefin. 1" (25.4 mm) diameter, 4' (1.2 m) length. Color Black. 5 per package.
Specifications
Specifications
Panduit - HSTTA100-48-5 - Product Categories
- Wire Routing, Management & Protection
- Heat Shrink Tubing
Panduit - HSTTA100-48-5 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | HSTTA100-48-5 |
| Item Description | Damp-Shrink HSTTA100-48-5 Heatshrink, Black, Adh. Lined PO, 4' L, 1" to .32" ID |
| Product Type | Heat Shrink |
| Adhesive Lined | Yes |
| Color | Black |
| Material | Adhesive Lined Cross-Linked Polyolefin |
| Maximum Operating Temperature (°C) | 110 |
| Maximum Operating Temperature (°F) | 230 |
| Minimum Operating Temperature (°C) | -55 |
| Minimum Operating Temperature (°F) | -67 |
| Nominal Diameter (In.) | 1 |
| Nominal Diameter (mm) | 25.4 |
| Nominal Recovered Wall Thickness (In.) | 0.1 |
| Nominal Recovered Wall Thickness (mm) | 2.5 |
| Sub Brand | Damp-Shrink |
| Overall Length (In.) | 48 |
| Overall Length (ft.) | 4 |
| Overall Length (m) | 1.2 |
| Overall Length (mm) | 1219.2 |
| Resistance Properties | Outer wall is flame retardant; Suitable for damp locations |
| Standards Met | UL: E342365; Mil Spec: AMS-DTL-23053/4 Class 3 |
| Shrink Ratio | 3:1 |
| Shrink Temperature (°C) | 120 |
| Shrink Temperature (°F) | 248 |
| Maximum Recovered Inside Diameter (In.) | 0.32 |
| Maximum Recovered Inside Diameter (mm) | 8.1 |
| Minimum Expanded Inside Diameter (In.) | 1 |
| Minimum Expanded Inside Diameter (mm) | 25.4 |
| Application | For Damp Locations; Insulating and protecting wires and cables |
| Part Features | 3:1 shrink ratio for damp applications. Provides excellent abrasion protection and color coding. Flexible |
Panduit - HSTTA100-48-5 - Package Information
| UPC | 07498336995 |
|---|---|
| Standard Package Quantity | 5 |
| Standard Package Volume (cf) | 0.3893 |
| Standard. Ctn. Quantity | 0 |
| Standard. Ctn. Volume (cf) | 0.0000 |
