Brand: Panduit
|
SKU:
HSTTA150-48-5
Panduit HSTTA150-48-5 | Damp-Shrink HSTTA150-48-5 Heatshrink, Blk, Adh. Lined PO, 4' L, 1.5" to .51" ID
Regular price
$362.38
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit HSTTA150-48-5 | Damp-Shrink HSTTA150-48-5 Heatshrink, Blk, ...
Regular price
$362.38
Unit price
Brand: Panduit
|
SKU:
HSTTA150-48-5
Regular price
$362.38
Unit price
Shipping calculated at checkout.
Description
Description

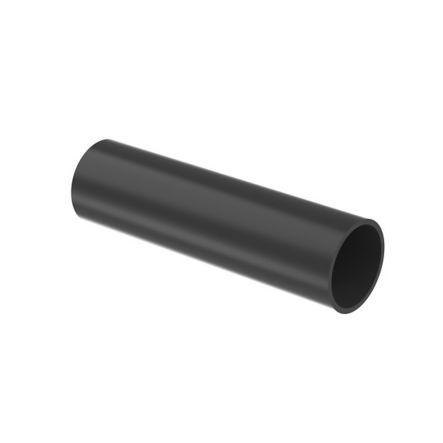

Panduit HSTTA150-48-5 | Damp-Shrink HSTTA150-48-5 Heatshrink, Blk, Adh. Lined PO, 4' L, 1.5" to .51" ID

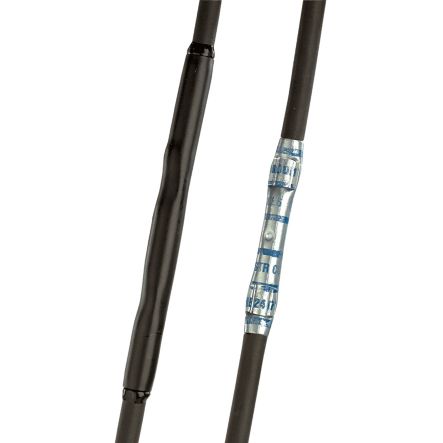

The HSTTA150-48-5 Thin Wall Heat Shrink features an adhesive lined inner wall that seals and provides excellent protection against moisture. Applications include insulating and protecting wires/cables in damp locations. Voltage rating: 600 V. Shrink ratio: 3:1. Temperature range: -67°F to 230°F (-55°C to 110°C). Cross-linked Polyolefin. 1.5" (38.1 mm) diameter, 4' (1.2 m) length. Color Black. 5 per package.
Panduit - HSTTA150-48-5 - Features
- Dual Wall Adhesive Lined Thin Wall Heat Shrink
- For damp locations
- Flexible tubing with an adhesive inner wall which seals and protects components from moisture and corrosion
- The 3:1 shrink ratio is a benefit when working with connector-to-cable transitions
- Material Type: Polyolefin Cross-linked ith adhesive
- Shrink Ratio: 3:1
- Temperature Range: -67F to 230F (-55C to 110C)
- Flammability: Outer wall flame retardant
- Voltage Rating: 600 V
- Mil Spec: AMS-DTL-23053/4 Class 3
Specifications
Specifications
Panduit - HSTTA150-48-5 - Product Categories
- Wire Routing, Management & Protection
- Heat Shrink Tubing
Panduit - HSTTA150-48-5 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | HSTTA150-48-5 |
| Item Description | Damp-Shrink HSTTA150-48-5 Heatshrink, Blk, Adh. Lined PO, 4' L, 1.5" to .51" ID |
| Product Type | Heat Shrink |
| Adhesive Lined | Yes |
| Color | Black |
| Material | Adhesive Lined Cross-Linked Polyolefin |
| Maximum Operating Temperature (°C) | 110 |
| Maximum Operating Temperature (°F) | 230 |
| Minimum Operating Temperature (°C) | -55 |
| Minimum Operating Temperature (°F) | -67 |
| Nominal Diameter (In.) | 1.5 |
| Nominal Diameter (mm) | 38.1 |
| Nominal Recovered Wall Thickness (In.) | 0.1 |
| Nominal Recovered Wall Thickness (mm) | 2.5 |
| Sub Brand | Damp-Shrink |
| Overall Length (In.) | 48 |
| Overall Length (ft.) | 4 |
| Overall Length (m) | 1.22 |
| Overall Length (mm) | 1219.2 |
| Resistance Properties | Outer wall is flame retardant; Suitable for damp locations |
| Standards Met | UL: E342365; Mil Spec: AMS-DTL-23053/4 Class 3 |
| Shrink Ratio | 3:1 |
| Shrink Temperature (°C) | 120 |
| Shrink Temperature (°F) | 248 |
| Maximum Recovered Inside Diameter (In.) | 0.51 |
| Maximum Recovered Inside Diameter (mm) | 12.9 |
| Minimum Expanded Inside Diameter (In.) | 1.5 |
| Minimum Expanded Inside Diameter (mm) | 38.1 |
| Application | For Damp Locations; Insulating and protecting wires and cables |
Panduit - HSTTA150-48-5 - Package Information
| UPC | 07498336971 |
|---|---|
| Standard Package Quantity | 5 |
| Standard Package Volume (cf) | 0.3309 |
| Standard. Ctn. Quantity | 0 |
| Standard. Ctn. Volume (cf) | 0.0000 |
Panduit - HSTTA150-48-5 - Videos
| Video 1 | Click to View |
|---|
