Panduit HSTTA150-48-Q | Heat Shrink | UPC - 07498378479
Regular price
$1,487.81
Unit price
Description
Description

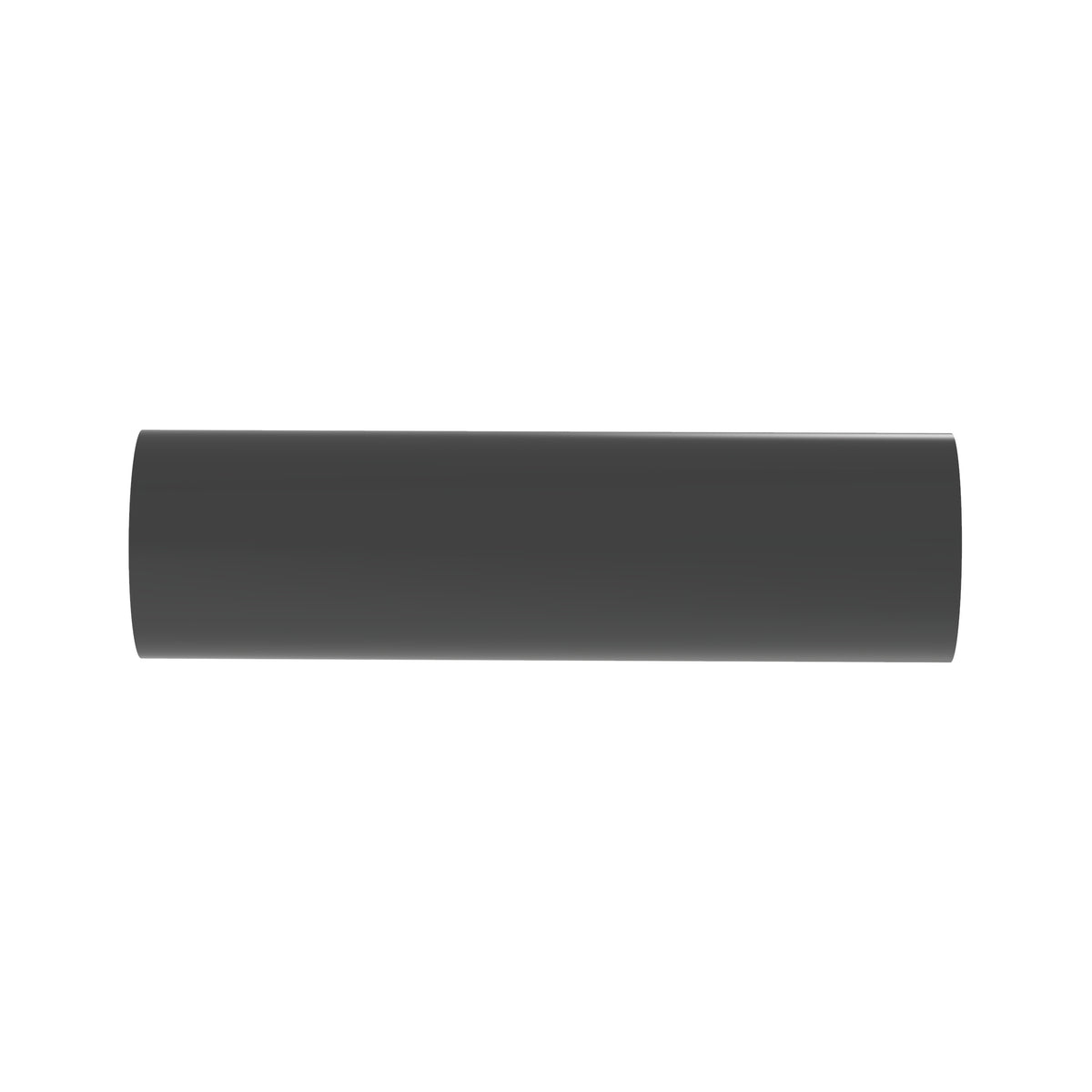

Panduit Damp-Shrink Heat Shrink Tubing, Adhesive Lined, 600 VAC, 1-1/2 in Inner Dia Expanded, 0.51 in Inner Dia Recovered, Thin Wall, 0.1 in Wall Thickness Recovered, 3:1 Shrink, 4 ft Length, -67 to 230 deg F, 248 deg F Shrink, Polyolefin, Black
Features + Benefits
- Flexible tubing with an adhesive inner wall which seals and protects components from moisture and corrosion
- Outer wall flame-retardant
Panduit Panduit HSTTA150-48-Q | Heat Shrink | UPC - 07498378479 Key Specs
| Product Type | Heat Shrink |
| Adhesive Lined | Yes |
| Color | Black |
| Material | Adhesive Lined Cross-Linked Polyolefin |
| Maximum Operating Temperature (°C) | 110 |
| Maximum Operating Temperature (°F) | 230 |
| Minimum Operating Temperature (°C) | -55 |
| Minimum Operating Temperature (°F) | -67 |
| Nominal Diameter (In.) | 1.5 |
| Nominal Diameter (mm) | 38.1 |
| Nominal Recovered Wall Thickness (In.) | 0.1 |
| Nominal Recovered Wall Thickness (mm) | 2.5 |
| Sub Brand | Damp-Shrink |
| Overall Length (In.) | 48 |
| Overall Length (ft.) | 4 |
| Overall Length (m) | 1.22 |
| Overall Length (mm) | 1219.2 |
| Resistance Properties | Outer wall is flame retardant; Suitable for damp locations |
| Standards Met | UL: E342365; Mil Spec: AMS-DTL-23053/4 Class 3 |
| Shrink Ratio | 3:1 |
Panduit Panduit HSTTA150-48-Q | Heat Shrink | UPC - 07498378479 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - HSTTVA12-Y Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - HSTTA Adhesive Thin Wall Heat Shrink | Download and View |
| MSDS | MSDS- Heat Shrinkable Tubing | Download and View |
Panduit Panduit HSTTA150-48-Q | Heat Shrink | UPC - 07498378479 Environmental Information
| Panduit's RoHS Statement | Download and View |
