Brand: Panduit
|
SKU:
264575
Panduit HSTTA25-48-Q | Damp-Shrink Heatshrink, Blk, Adh. Lined PO, 0.25" to .08" ID, PK25
Regular price
$18.45
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit HSTTA25-48-Q | Damp-Shrink Heatshrink, Blk, Adh. Lined PO, ...
Regular price
$18.45
Unit price
Description
Description

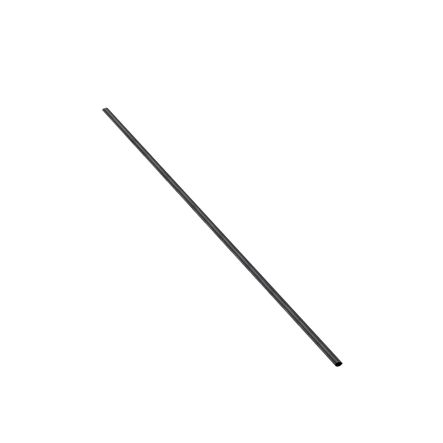

Panduit HSTTA25-48-Q | Damp-Shrink Heatshrink, Blk, Adh. Lined PO, 0.25" to .08" ID, PK25

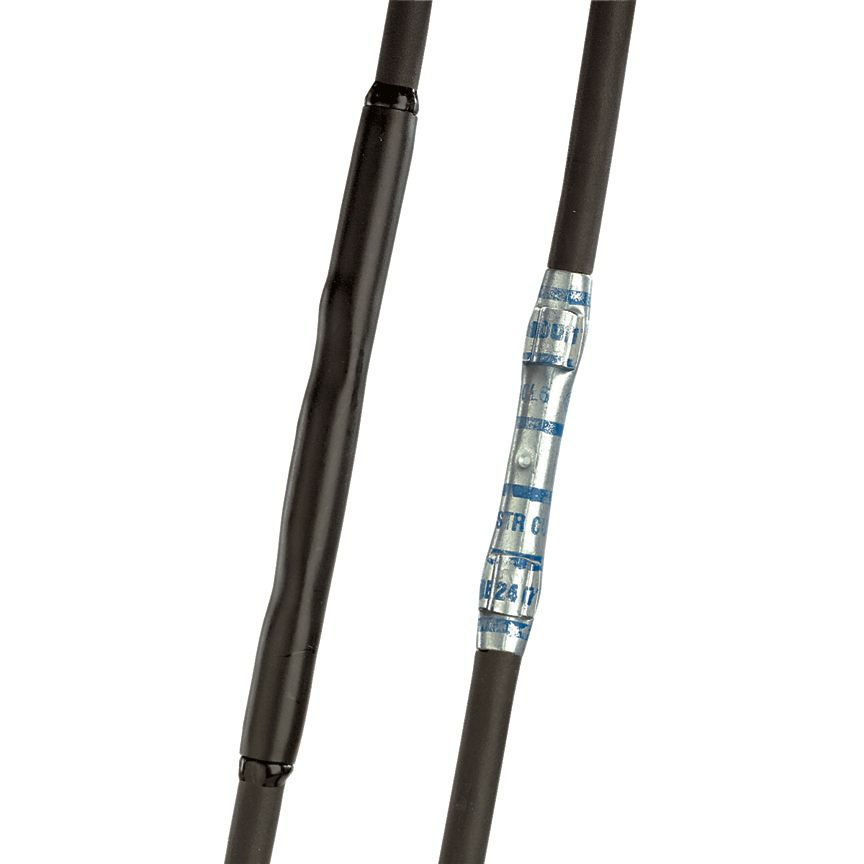

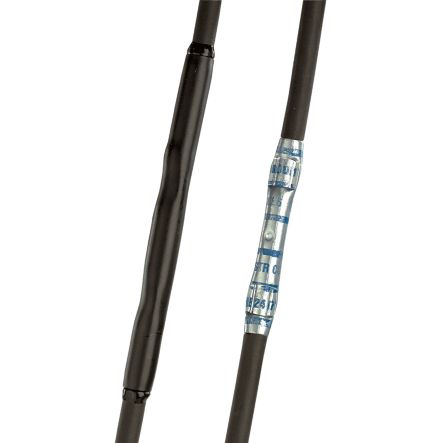

Shrink to one-third its original diameter when heated, our tubing offers exceptional protection and sealing for larger wires, with a flexible and watertight barrier.
Panduit Damp-Shrink Heat Shrink Tubing, Adhesive Lined, 600 VAC, 1/4 in Inner Dia Expanded, 0.08 in Inner Dia Recovered, Thin Wall, 0.04 in Wall Thickness Recovered, 3:1 Shrink, 4 ft Length, -67 to 230 deg F, 248 deg F Shrink, Polyolefin, Black
Panduit - HSTTA25-48-Q - Features
- Flexible tubing with an adhesive inner wall which seals and protects components from moisture and corrosion
- Outer wall flame-retardant
Specifications
Specifications
Panduit - HSTTA25-48-Q - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | HSTTA25-48-Q |
| Product Type | Heat Shrink Tubing |
| Adhesive Lined | Yes |
| Color | Black |
| Material | Cross-Linked Polyolefin |
| Finish/Coating | Adhesive-Lined |
| Maximum Operating Temperature (°C) | 110 |
| Maximum Operating Temperature (°F) | 230 |
| Minimum Operating Temperature (°C) | -55 |
| Minimum Operating Temperature (°F) | -67 |
| Nominal Diameter (In.) | 0.25 |
| Nominal Diameter (mm) | 6.4 |
| Nominal Recovered Wall Thickness (In.) | 0.04 |
| Nominal Recovered Wall Thickness (mm) | 1 |
| Sub Brand | Damp-Shrink |
| Overall Length (In.) | 48 |
| Overall Length (ft.) | 4 |
| Overall Length (m) | 1.2192 |
| Overall Length (mm) | 1.219 |
| Resistance Properties | Abrasion-Resistant |
| Standards Met | UL Recognized, Mil Spec |
| Shrink Ratio | 3:1 |
| UPC | 07498336991 |
Panduit - HSTTA25-48-Q - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 3926.90.9985 |
Panduit - HSTTA25-48-Q - Videos
| Panduit HSTTA25-48-Q Video 1 | Click to View |
|---|
