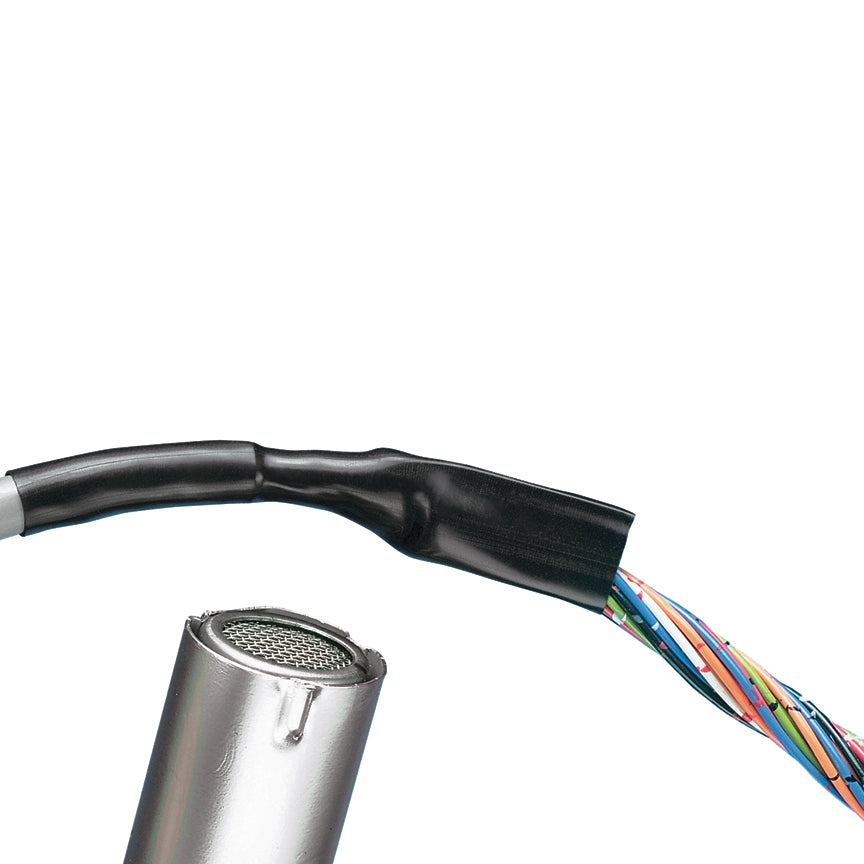

Panduit HSTTP06-CY | Heat Shrink | UPC - 07498340226
Regular price
$57.32
Unit price
Brand: Panduit
|
SKU:
10045142
Regular price
$57.32
Unit price
Description
Description
Panduit Dry-Shrink Heat Shrink Tubing, Series: HSTTP, 600 VAC, 0.063 in Inner Dia Expanded, 0.031 in Inner Dia Recovered, Thin Wall, 0.02 in Wall Thickness Recovered, 2:1 Shrink, 100 ft Length, -4 to 221 deg F, 212 deg F Shrink, PVC, Black
Features + Benefits
- Good resistance to most fuels and oils
Panduit Heat Shrink Key Specs
| Note | HSTTP06-CY replaces HSTTP06-C |
| Product Type | Heat Shrink |
| Color | Black |
| Material | Polyvinyl Chloride Cross-Linked |
| Nominal Diameter (mm) | 1.6 |
| Nominal Recovered Wall Thickness (In.) | 0.02 |
| Nominal Recovered Wall Thickness (mm) | 0.5 |
| Sub Brand | Dry-Shrink |
| Overall Length (ft.) | 100 |
| Overall Length (m) | 30.5 |
| Shrink Ratio | 2:1 |
| Minimum Expanded Inside Diameter (In.) | 0.063 |
| Minimum Expanded Inside Diameter (mm) | 1.6 |
| Application | For Dry Locations |
Panduit Heat Shrink Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - HSTTP05-QY Product Page-1 | Download and View |
| Catalog Cut Sheets | Catalog Cut Sheet - HSTTP05-QY Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - GB0239KI_HSTTP_01 | Download and View |
