Panduit HSTTT24-48-Q | Dry-Shrink Heat Shrink
Regular price
$31.34
Unit price
Brand: Panduit
|
SKU:
348569
Regular price
$31.34
Unit price
Description
Description

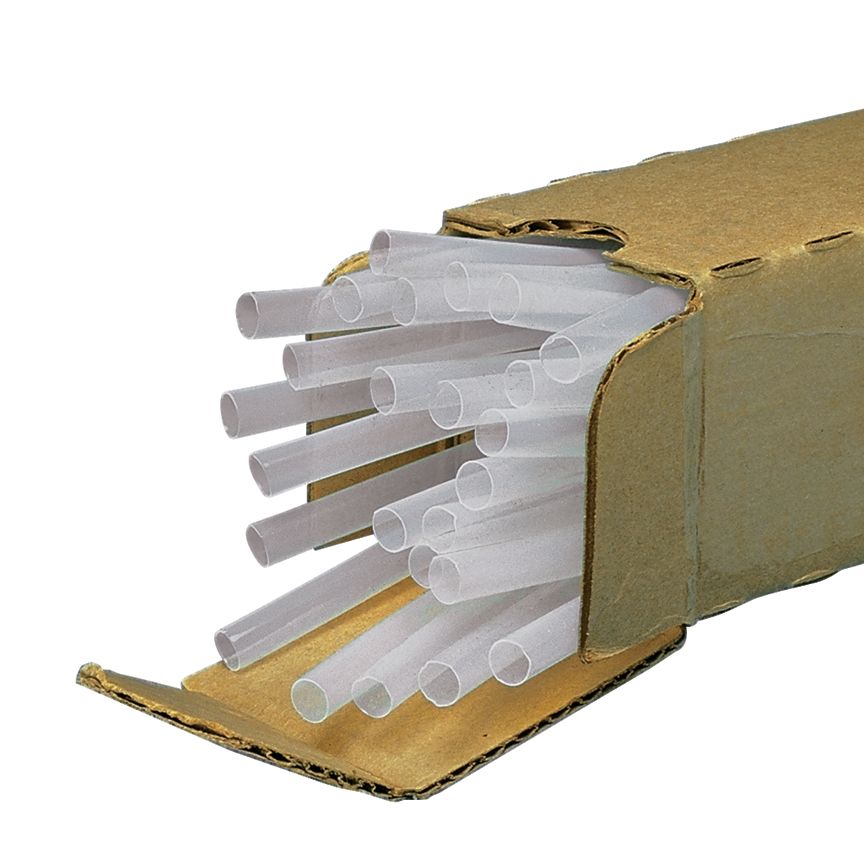

Panduit HSTTT24-48-Q | Dry-Shrink Heat Shrink
Our tubing offers exceptional insulation, chemical resistance, and temperature tolerance for wires, cables, and components in demanding environments.
Semi-rigid highly heat resistant Teflon* Heat Shrink offers widest temperature range of any heat shrink material.
Panduit Dry-Shrink Heat Shrink Tubing, Series: HSTTT, 600 VAC, 0.24 in Inner Dia Expanded, 0.141 in Inner Dia Recovered, Thin Wall, 0.015 in Wall Thickness Recovered, 2:1 Shrink, 4 ft Length, -88 to 482 deg F, 644 deg F Shrink, PTFE, Milky Clear
Panduit - HSTTT24-48-Q - Features
- Applications include insulating, protecting, and color coding wires and cables
- Widest temperature range of any plastic material
- Voltage: 600V
- Shrink ratio: 2:1
- Mil Spec: AMS-DTL-23053/12 Class 3
- Temperature range: -400F to 500F (-240C to 260C)
- Color: Opaque
- For dry locations
- Material: Polytetrafluroethylene (PTFE)
Specifications
Specifications
Panduit - HSTTT24-48-Q - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | HSTTT24-48-Q |
| UNSPSC Code | 39121723 |
| Product Type | Heat Shrink Tubing |
| Adhesive Lined | No |
| Color | Milky Clear |
| Material | PTFE |
| Maximum Operating Temperature (°C) | 250 |
| Maximum Operating Temperature (°F) | 482 |
| Minimum Operating Temperature (°C) | -67 |
| Minimum Operating Temperature (°F) | -88 |
| Nominal Diameter (In.) | 0.24 |
| Nominal Diameter (mm) | 6 |
| Nominal Recovered Wall Thickness (In.) | 0.015 |
| Nominal Recovered Wall Thickness (mm) | 0.4 |
| Sub Brand | Dry-Shrink |
| Overall Length (In.) | 48 |
| Overall Length (ft.) | 4 |
| Overall Length (m) | 1.2 |
| Overall Length (mm) | 1219 |
| Standards Met | MIL SPEC |
| Shrink Ratio | 2:1 |
| Shrink Temperature (°C) | 340 |
| Shrink Temperature (°F) | 644 |
| UPC | 07498337432 |
Panduit - HSTTT24-48-Q - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 3926.90.9985 |
Panduit - HSTTT24-48-Q - Videos
| Panduit HSTTT24-48-Q Video 1 | Click to View |
|---|
