Brand: Panduit
|
SKU:
10045207
Panduit HSTTVA150-48-5 | Heat Shrink | UPC - 07498336979
Regular price
$284.81
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit HSTTVA150-48-5 | Heat Shrink | UPC - 07498336979
Regular price
$284.81
Unit price
Description
Description

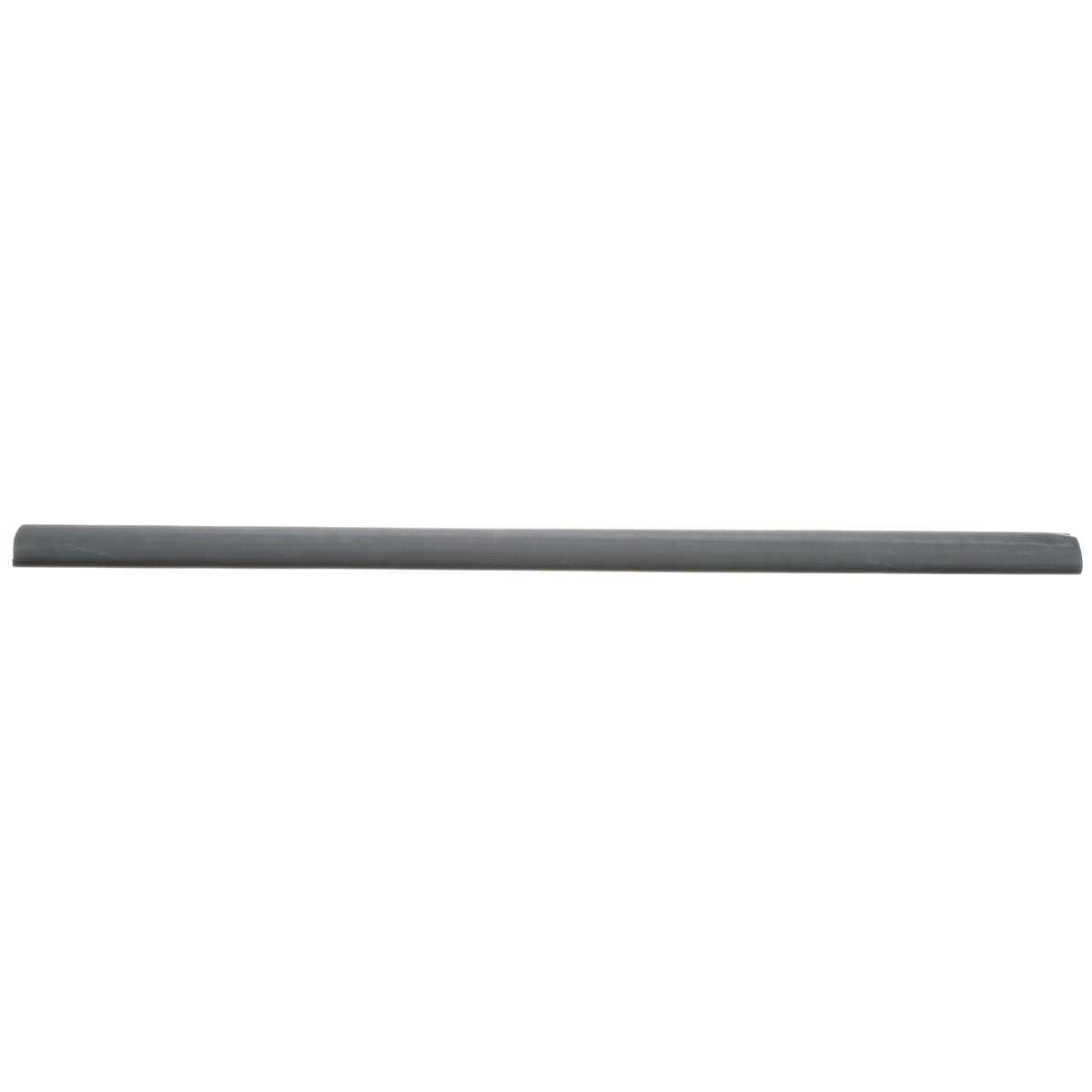

Panduit Damp-Shrink Heat Shrink Tubing, Adhesive Lined, 600 VAC, 1-1/2 in Inner Dia Expanded, 3/4 in Inner Dia Recovered, Thin Wall, 0.047 in Wall Thickness Recovered, 2:1 Shrink, 4 ft Length, -67 to 230 deg F, 248 deg F Shrink, Polyolefin, Black
Features + Benefits
- Flexible tubing with an adhesive inner wall which seals and protects components from moisture and corrosion
- Outer wall flame-retardant
Panduit Panduit HSTTVA150-48-5 | Heat Shrink | UPC - 07498336979 Key Specs
| Product Type | Heat Shrink |
| Color | Black |
| Material | Polyolefin cross-linked with adhesive |
| Nominal Diameter (mm) | 38.1 |
| Nominal Recovered Wall Thickness (In.) | 0.047 |
| Nominal Recovered Wall Thickness (mm) | 1.2 |
| Sub Brand | Damp-Shrink |
| Overall Length (ft.) | 4 |
| Overall Length (m) | 1.2 |
| Shrink Ratio | 2:1 |
| Minimum Expanded Inside Diameter (In.) | 1.5 |
| Minimum Expanded Inside Diameter (mm) | 38.1 |
| Part Features | 2:1 shrink ratio for damp applications. Provides excellent abrasion protection and color coding. Flexible VW-1 flame rating |
Panduit Panduit HSTTVA150-48-5 | Heat Shrink | UPC - 07498336979 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - HSTTK05-48-Q Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - HSTTVA Flexible Adhesive Heat Shrink (2) | Download and View |
| MSDS | MSDS- Heat Shrinkable Tubing | Download and View |
Panduit Panduit HSTTVA150-48-5 | Heat Shrink | UPC - 07498336979 Environmental Information
| Panduit's RoHS Statement | Download and View |
