Panduit HTCT250-250-1 | Structured Ground Compression Tap
Description
Description
Provide a secure and reliable electrical ground connection with our copper compression tap. It's ideal for connecting grounding conductors to metal conduits or enclosures.
Copper Compression HTAP with code 250 kcmil - #2 AWG Run and Tap 1 or flex 4/0 - #2 AWG Run and Tap 1.
Panduit StructuredGround Compression H-Tap Connector, Series: HTCT, H Shape, 1 Total Taps, 250 kcmil to 2 AWG, 2 to 4/0 AWG Flexible Main/Run, 2 AWG to 250 kcmil Code, 2 to 4/0 AWG Flexible Tap, 600 VAC, Code/Flex Conductor, Specifications: 2 A, 1 in L Wire Strip, Copper, Tin Plated, 0.9 in L x 0.89 in W x 1.92 in H Dimensions
Panduit - HTCT250-250-1 - Features
- Used to tap into continuous conductors as a splice or pigtailing
- Each HTAP terminates a wide range of conductor sizes and combinations of code and flex conductors class G, H, I and diesel locomotive to suit a variety of applications

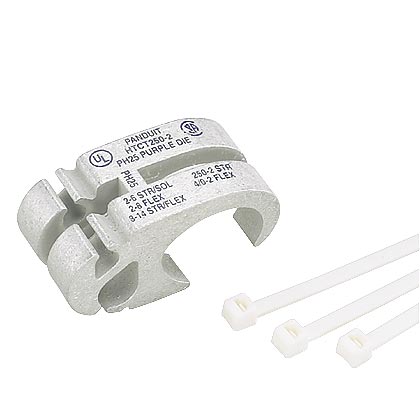

- Slotted design allows quick and easy assembly of conductor to HTAP using three Panduit 94V-0 cable ties included
- Tap grooves are separated from one another allowing them to function independently so HTAP can be used with a single or multiple taps providing maximum design and installation flexibility
- Color coded and marked with Panduit die index numbers for proper crimp die selection
- Used to tap into continuous conductors as a splice or pigtailing
- Each HTAP terminates a wide range of conductor sizes and combinations of code and flex conductors Class G, H, I and Diesel Locomotive to suit a variety of applications
- Slotted design allows quick and easy assembly of conductor to HTAP using three Panduit 94V-0 cable ties included
- Tap grooves are separated from one another allowing them to function independently so HTAP can be used with a single or multiple taps providing maximum design and installation flexibility
- Color-coded and marked with Panduit die index numbers for proper crimp die selection
- UL Listed and CSA Certified for applications up to 600 V when crimped with Panduit and specified competitor crimping tools and Panduit crimping dies
- Tin-plated to inhibit corrosion
Specifications
Specifications
Panduit - HTCT250-250-1 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | HTCT250-250-1 |
| Application | Rack/Cabinet/Enclosure |
| Component | Compression Taps |
| Connection Type | Compression |
| Material Rating | Copper |
| UNSPSC Code | 39121400 |
| Sub Brand | StructuredGround |
| Surface Treatment | Tinned |
| Overall Length (In.) | 0.9 |
| Overall Length (mm) | 22.9 |
| Overall Width (In.) | 0.89 |
| Overall Width (mm) | 22.6 |
| Overall Height (In.) | 1.92 |
| Overall Height (mm) | 48.8 |
| Minimum Tap 1 Size (kcmil) | 250 |
| Wire Strip Length (In.) | 1 |
| Wire Strip Length (mm) | 25 |
| Panduit Die Index Number | PH25 |
| Color Code | Purple |
| Application | Telecom/Data Center |
| Product Type | Compression Tap |
| Part Features | Slotted design allows quick and easy assembly of conductor to HTAP using three Panduit 94V-0 cable ties included |
| UPC | 07498344084 |
Panduit - HTCT250-250-1 - Videos
| Panduit HTCT250-250-1 Video 1 | Click to View |
|---|
