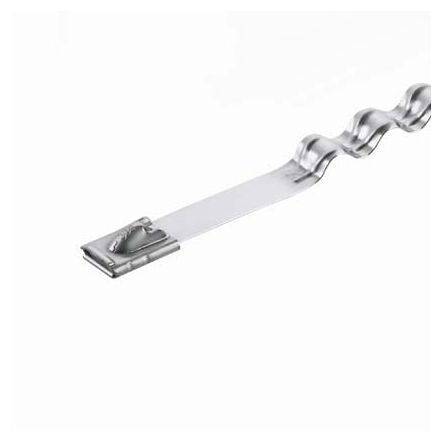

Panduit HTMLT16WEH-Q | Pan-Steel HTMLT16WEH-Q Wave Cable Tie, SS 304, Nat, Extra Heavy, 16" Dia, PK25
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit HTMLT16WEH-Q | Pan-Steel HTMLT16WEH-Q Wave Cable Tie, SS 30...
Description
Description
Panduit Heat Trace MLT Wave-Ty Ties are designed for superior electric heat trace installation and built with a locking head design to increase productivity. Their wide, flat profile eliminates the puncture risk of wire ties and also reduces the risk of damaging the Mineral Insulated Electric Heat Trace, causing downtime. They can even be installed in 1/3 the time. 304 Stainless steel is non-flammable and UV-resistant. Extra Heavy, 55.8L (1417mm), Tensile Strength: 2670, Bundles up to 16.0 (406mm), 25pc.
Panduit HTMLT16WEH-Q - BANDING - 1/2IN S.S. PRE-CUT BANDING
Specifications
Specifications
Panduit - HTMLT16WEH-Q - Product Categories
- Wire Routing, Management & Protection
- Cable Ties & Wire Ties
Panduit - HTMLT16WEH-Q - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | HTMLT16WEH-Q |
| Item Description | Pan-Steel HTMLT16WEH-Q Wave Cable Tie, SS 304, Nat, Extra Heavy, 16" Dia, PK25 |
| Product Type | Stainless Steel Cable Ties |
| Sub Brand | Pan-Steel |
| Color | Natural |
| Environment | Indoor/Outdoor |
| Material | Stainless Steel Type 304 |
| Resistance Properties | UV-Resistant |
| Overall Length (In.) | 55.75 |
| Overall Length (mm) | 1416.1 |
| Body Width (In.) | 0.5 |
| Body Width (mm) | 12.7 |
| Body Thickness (In.) | 0.01 |
| Body Thickness (mm) | 0.25 |
| Maximum Bundle Diameter (In.) | 16 |
| Maximum Bundle Diameter (mm) | 406.4 |
| Minimum Loop Tensile Strength (N) | 2670 |
| Minimum Loop Tensile Strength (lb) | 600 |
| Maximum Operating Temperature (°C) | 538 |
| Maximum Operating Temperature (°F) | 1000 |
| Minimum Operating Temperature (°C) | -80 |
| Minimum Operating Temperature (°F) | -112 |
| Minimum Installation Temperature (°C) | -60 |
| Minimum Installation Temperature (°F) | -76 |
| Standards Met | UL |
| For Use With | RT2HT, ST2MT & ST4MT |
| Application | General |
| Part Features | Does not damage Mineral Insulated Electric Heat Trace (MIEHT). Wide, flat profile along with spring design. |
Panduit - HTMLT16WEH-Q - Package Information
| UPC | 61305601539 |
|---|---|
| Standard Package Quantity | 25 |
| Standard Package Volume (cf) | 0.7689 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
