Brand: Panduit
|
SKU:
420238
Panduit IAEBH5ES | IndustrialNet TX5e Connectors - 1 Pack - 1 x RJ-45 Female - Black
Regular price
$49.29
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit IAEBH5ES | IndustrialNet TX5e Connectors - 1 Pack - 1 x RJ-...
Regular price
$49.29
Unit price
Description
Description
IEC CAT 5ESTP EA - IAEBH5ES. Panduit IndustrialNet TX5e Connectors - 1 Pack - 1 x RJ-45 Female - Black - IAEBH5ES.
Specifications
Specifications
General Information
| Manufacturer | PANDUIT CORP |
|---|---|
| Manufacturer Part Number | IAEBH5ES |
| Manufacturer Website Address | http://www.panduit.com |
| Brand Name | Panduit |
| Product Line | IndustrialNet |
| Product Series | TX5e |
| Product Name | IndustrialNet TX5e Connectors |

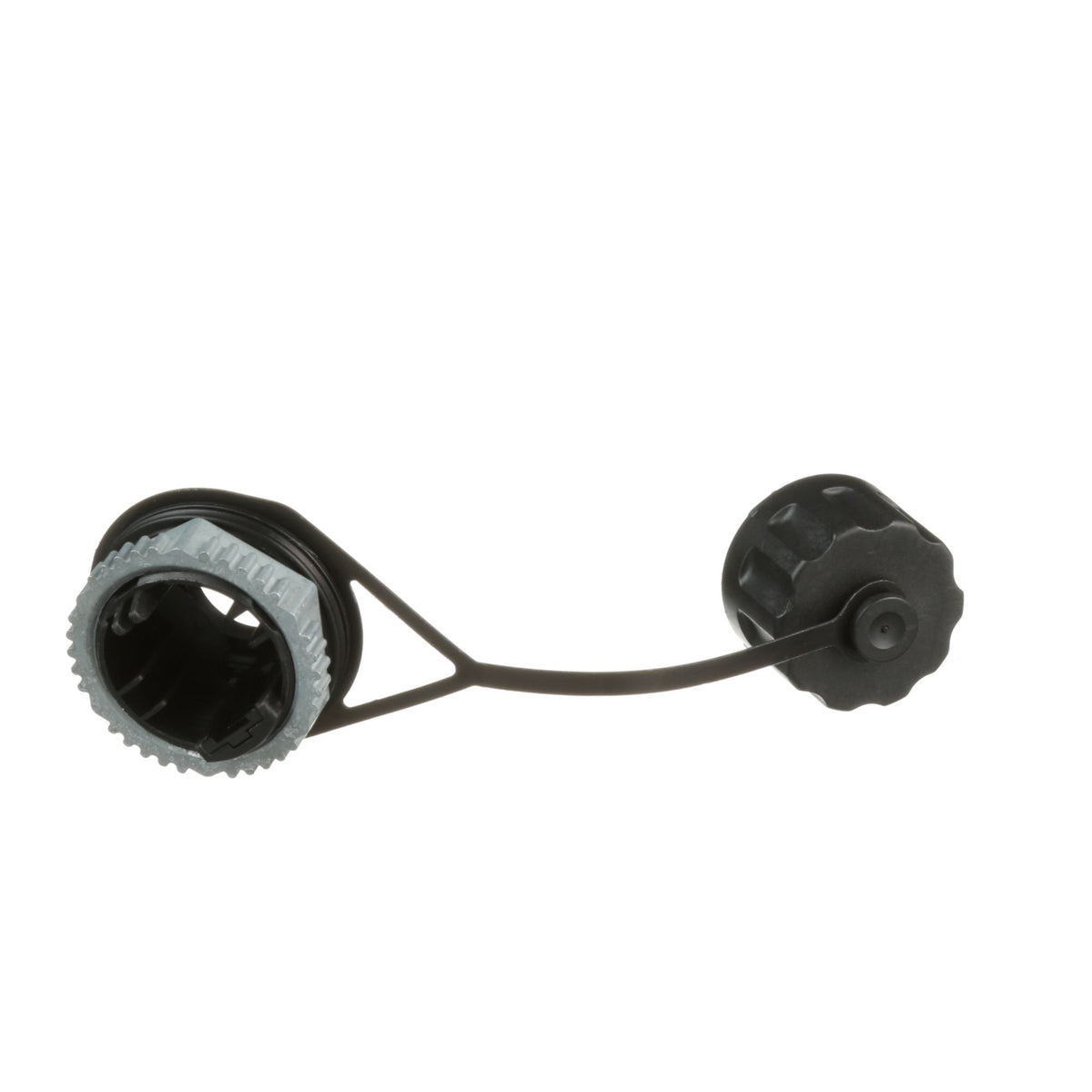

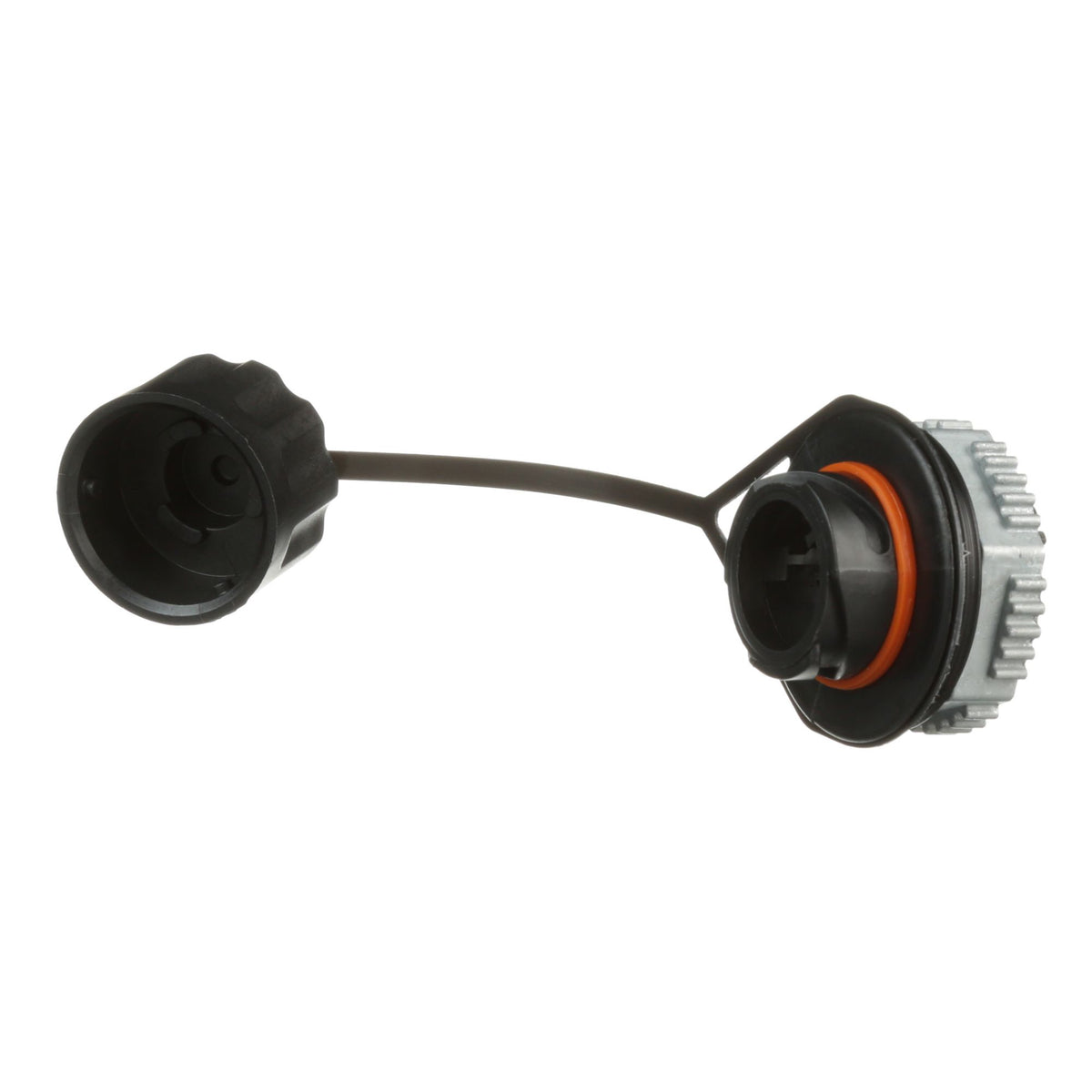

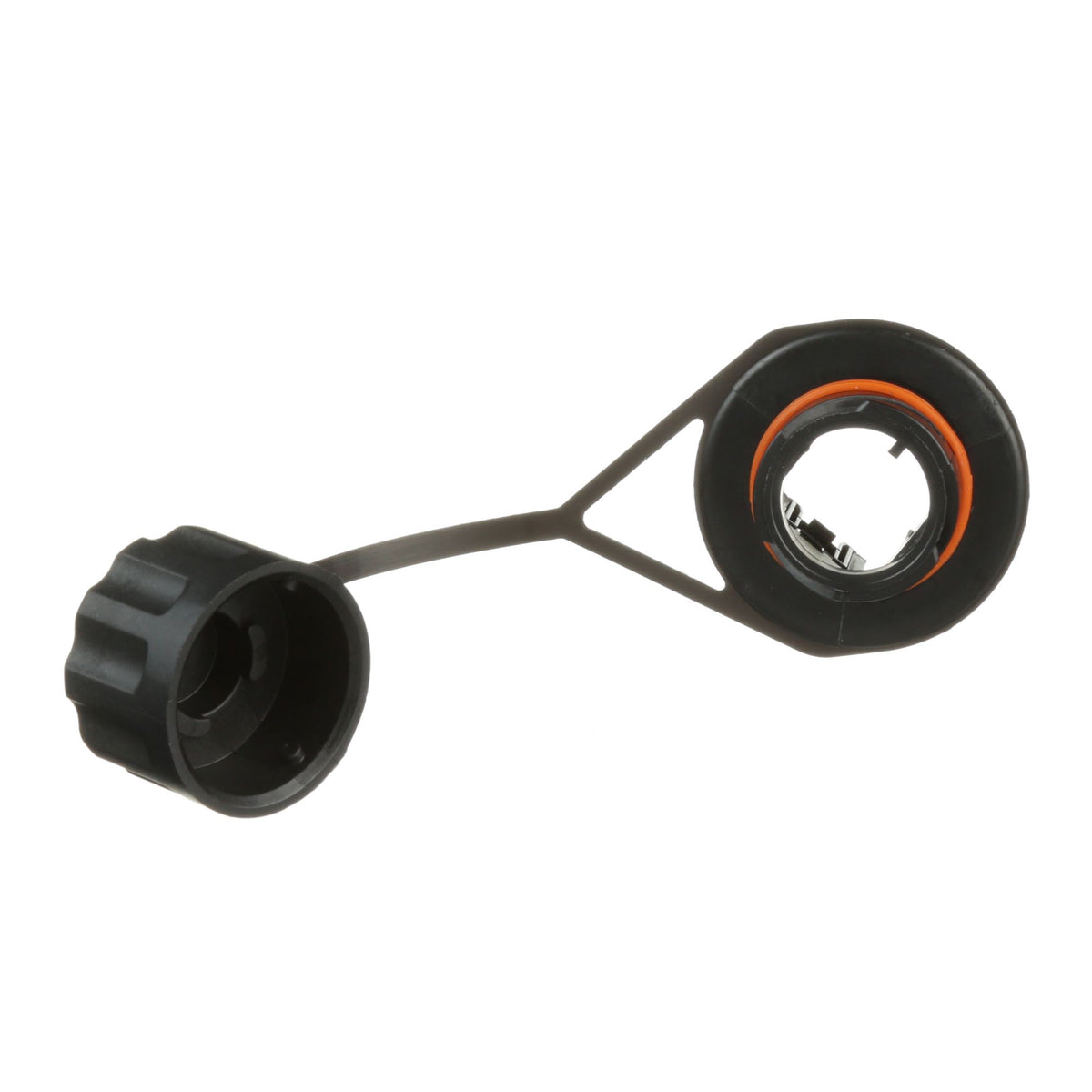

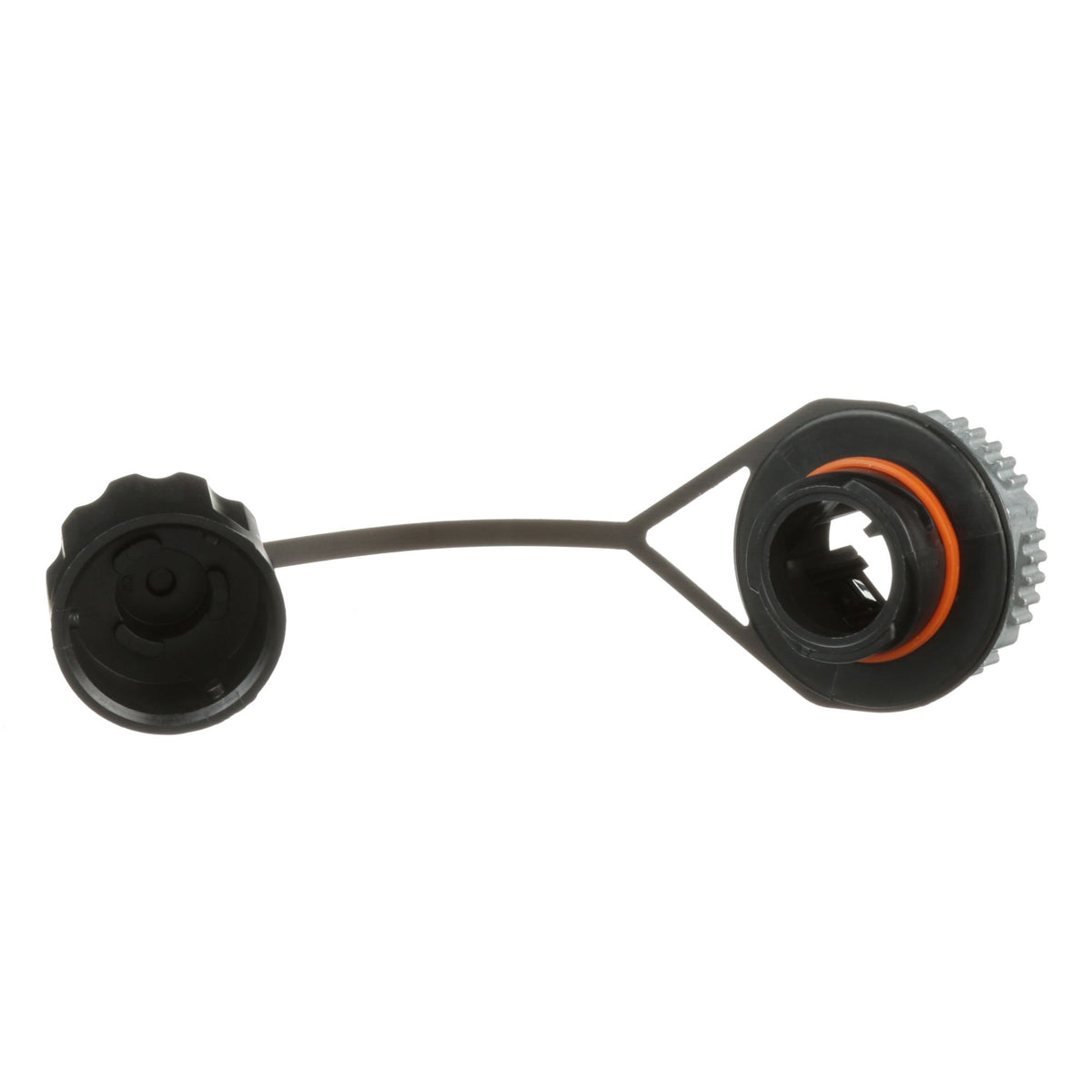

| Marketing Information | The IndustrialNet Cat 5e shielded bulkhead 8-position connector with protective cap is ideal in manufacturing environments. The shielded bulkhead connector features a RJ45 jack. The bulkhead provides an IP67 rated seal that provides protection from dust and temporary immersion in water. It terminates to a 4-pair, 24 AWG, 100 ohm twisted pair cable and does not require a punchdown tool. |
| Packaged Quantity | 1 |
| Product Type | Network Connector |
| UPC | 0074983815999 |
| Weight (lb) | 0.16 |
Technical Information
| Connector Details | 1 x RJ-45 Female Network |
|---|---|
| Contact Plating | Gold |
| Shielding | Yes |
| Ingress Protection (IP) Rating | IP67 |
| Ingress Protection (IP) Rating | IP68 |
| Features | Dust Protection |
| Features | Water Resistant |
| Features | PoE |
| Features | Anti-rotation |
| Features | Bulkhead |
| Features | Bayonet Locking |
| Features | Chemical Resistant |
| Features | Temperature Resistant |
| Features | Vibration Resistant |
| Features | Protective Cap |
| Features | Giga-TX Technology |
Physical Characteristics
| Color | Black |
|---|---|
| Height | 5.3" |
| Width | 1.5" |
| Depth | 1.7" |
Miscellaneous
| Environmentally Friendly | Yes |
|---|---|
| Environmental Certification | RoHS |
| Country of Origin | United States |
Warranty
| Limited Warranty | 5 Year |
|---|
