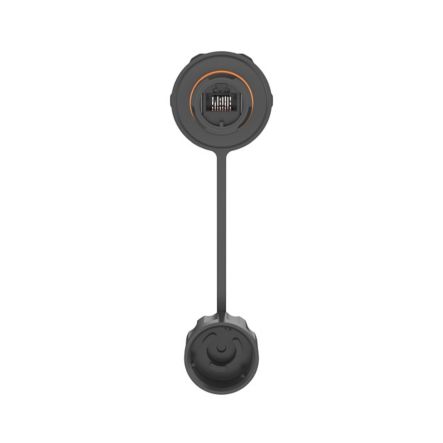

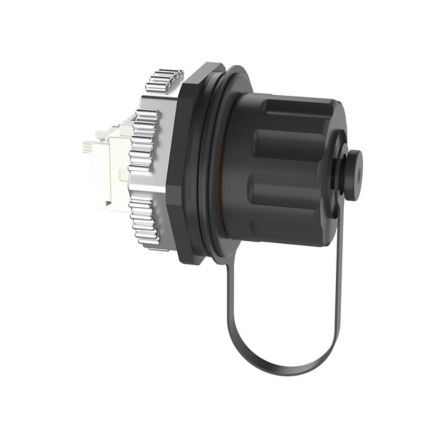

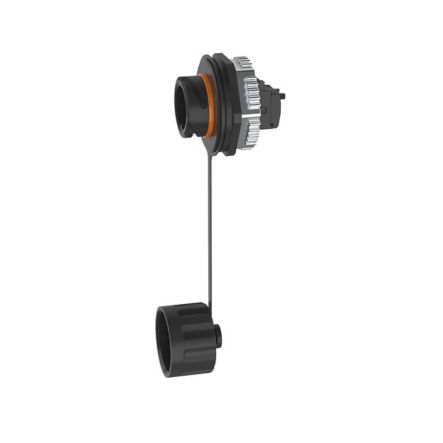

Panduit IAEBH6 | Industrial Cat 6 RJ45 UTP Bulkhead Connector
Regular price
$69.19
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit IAEBH6 | Industrial Cat 6 RJ45 UTP Bulkhead Connector
Regular price
$69.19
Unit price
Description
Description
Panduit IAEBH6 | Industrial Cat 6 RJ45 UTP Bulkhead Connector
The IndustrialNet Cat 6 UTP bulkhead 8-position connector with protective cap is ideal in manufacturing environments. The UTP bulkhead connector features a RJ45 jack. The bulkhead provides an IP67 rated seal that provides protection from dust and temporary immersion in water. It terminates to a 4-pair, 24 AWG, 100 ohm twisted pair cable and does not require a punchdown tool.
Panduit - IAEBH6 - Features
- Bulkhead provides IP67/IP65 seal when mated with IP67/IP65 plug or patch cord
- Designed to exceed performance requirements of the ANSI/TIA/EIA-568-C.2 Category 6 and ISO 11801 2nd Edition Class E standards
- Meet industrial Ethernet specifications from ODVA, TIA, and IEC sealed RJ45 connectors
- Utilize Panduit patented enhanced Giga-TX(TM) Termination technique for consistent, reliable terminations
- Jack module terminates 4-pair 22 - 26 AWG solid and stranded twisted pair cable
- Gasket and seal made of inert, chemically resistant material
- Connector components are made of high temperature rated material
- Tethered caps maintain seal during unmated connection
- Compatible with leading switch manufacturers’; equipment
Specifications
Specifications
Panduit - IAEBH6 - Product Categories
- Copper Systems
- Industrial Copper Connectors
Panduit - IAEBH6 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | IAEBH6 |
| Item Description | Industrial Cat 6 RJ45 UTP Bulkhead Connector |
| Product Type | UTP Coupler Module |
| Color | Black |
| Connector 1 Type | RJ45 |
| Overall Width (In.) | 1.49 |
| Overall Width (mm) | 37.8 |
| Overall Depth (In.) | 1.67 |
| Overall Depth (mm) | 42.4 |
| Overall Height (In.) | 5.34 |
| Overall Height (mm) | 135.5 |
| Sub Brand | IndustrialNet |
| Standards Met | Exceeds channel and component requirements of ANSI/TIA-568-C.2 Category 6 and ISO11801 Class E standards at swept frequencies 1 to 250 MH, Meets all ODVA Ethernet/IP |
| electrical and mechanical performance requirements, Meets ANSI/TIA-1096-A, Plug meets IEC 60603-7 specifications, Rated IP67/68 for dust protection and temporary liquid immersion, Rated UL Type 12, 6/6P, 4X, RoHS compliant | Environment |
| Harsh Industrial | Conductor Gauge (AWG) |
| 26 | Performance Level |
| Category 6 | Termination Style |
Panduit - IAEBH6 - Package Information
| UPC | 07498381603 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0150 |
| Standard. Ctn. Quantity | 10 |
| Standard. Ctn. Volume (cf) | 0.1498 |
