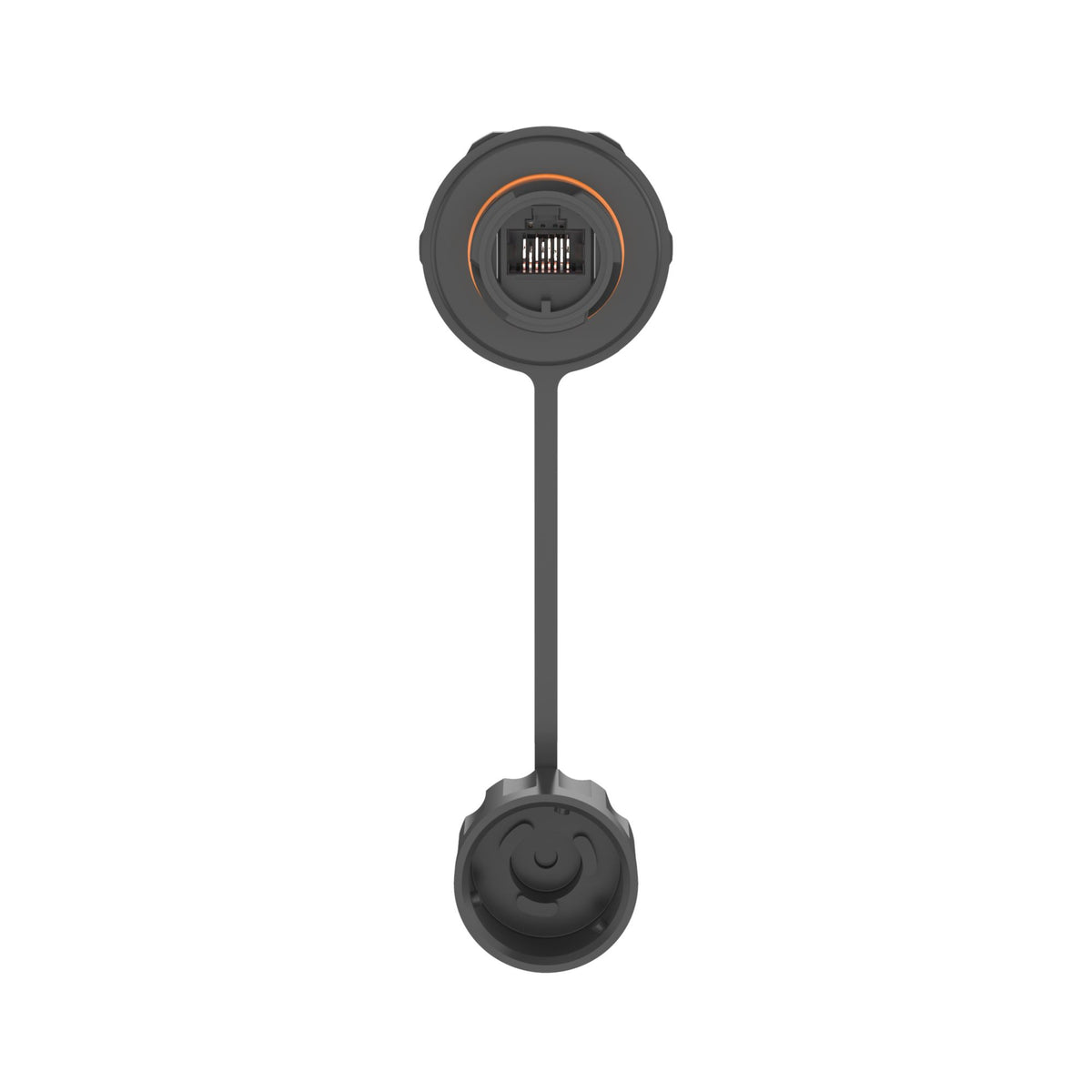

Panduit IAEBH6X | Industrial Cat 6A RJ45 UTP Bulkhead Connector
Regular price
$101.83
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit IAEBH6X | Industrial Cat 6A RJ45 UTP Bulkhead Connector
Regular price
$101.83
Unit price
Description
Description
Panduit IAEBH6X | Industrial Cat 6A RJ45 UTP Bulkhead Connector

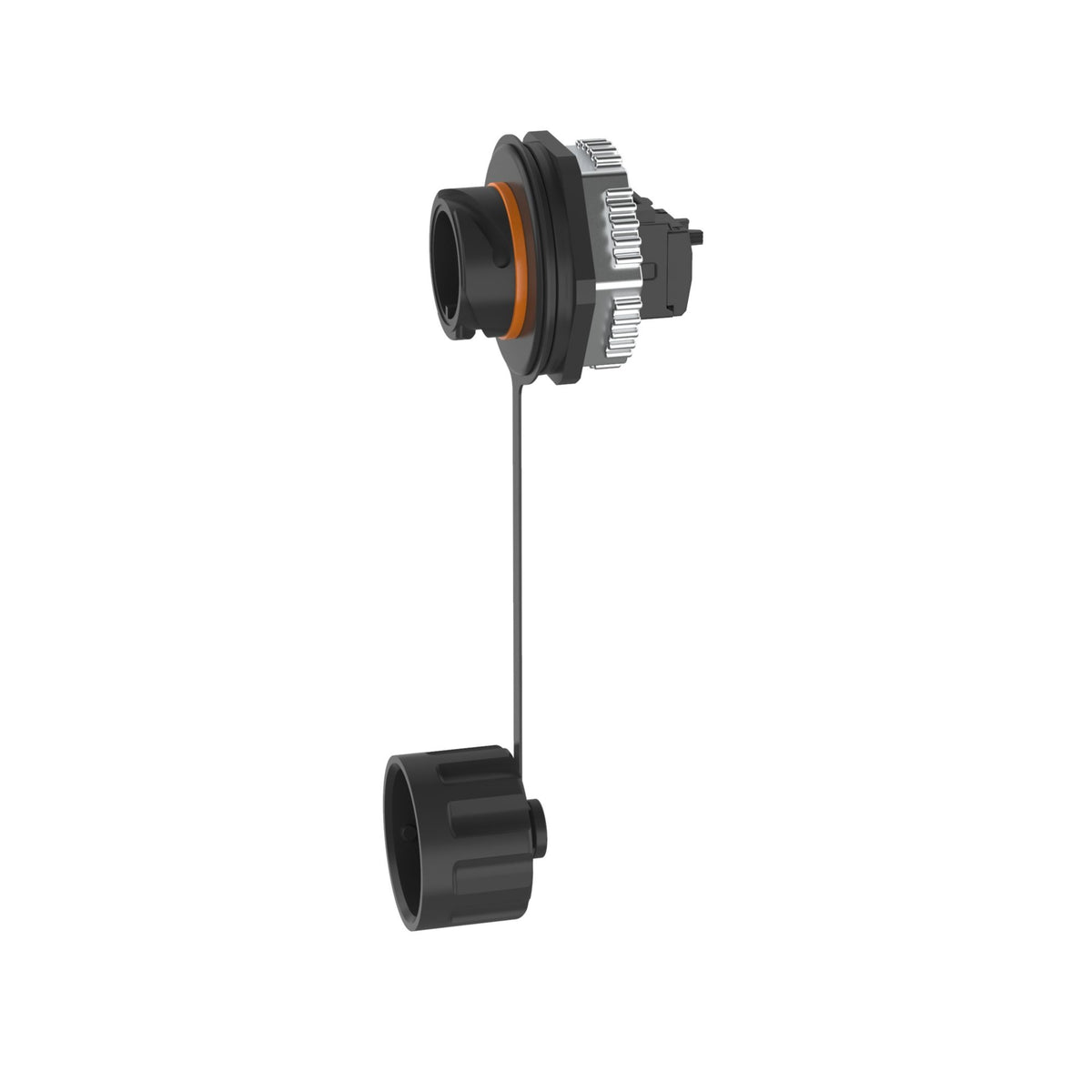

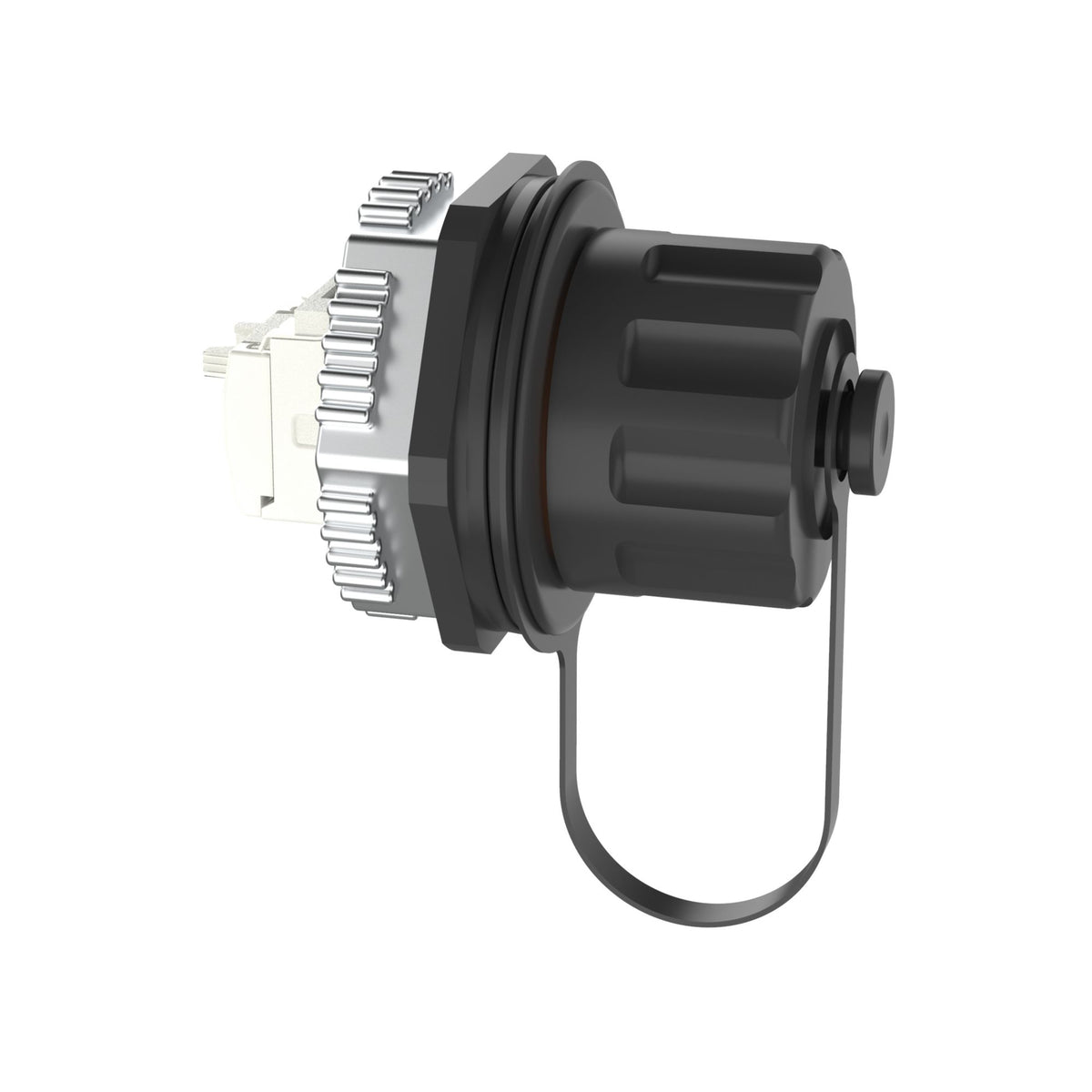

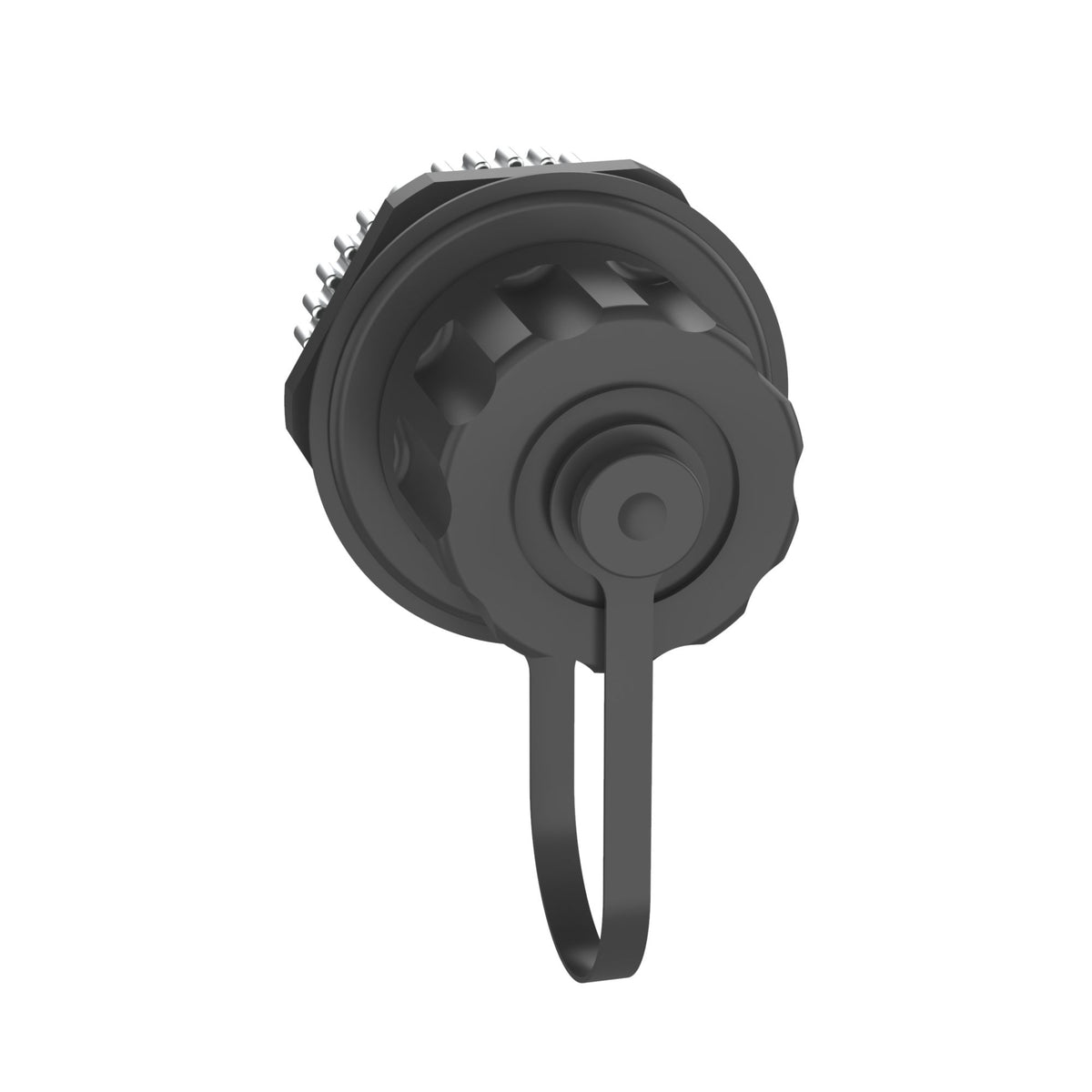

The IndustrialNet Cat 6A UTP bulkhead 8-position connector with protective cap is ideal in manufacturing environments. The UTP bulkhead connector features a RJ45 jack. The bulkhead provides an IP67 rated seal that provides protection from dust and temporary immersion in water. It terminates to a 4-pair, 24 AWG, 100 ohm twisted pair cable and does not require a punchdown tool.
Panduit - IAEBH6X - Features
- Panduit IndustrialNet Mini-Com - Modular insert - black - 1 port - IAEBH6X.
- General Information
- Weight (lb)
- 0.13
Specifications
Specifications
Panduit - IAEBH6X - Product Categories
- Copper Systems
- Industrial Copper Connectors
Panduit - IAEBH6X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | IAEBH6X |
| Item Description | Industrial Cat 6A RJ45 UTP Bulkhead Connector |
| Product Type | Bulkhead Connector |
| Performance Level | Category 6A |
| Connector Type | Bulkhead Connector |
| Termination Style | TG Style |
| Body Material | PBT/Plastic |
| Contact Material | Plated Phosphor Bronze |
| Module Type | Mini-Com |
| Wiring Scheme | T568A/T568B |
| Shield Type | Unshielded (UTP) |
| Sub Brand | IndustrialNet |
| Maximum Operating Temperature (°C) | 70 |
| Maximum Operating Temperature (°F) | 158 |
| Minimum Operating Temperature (°C) | -20 |
| Minimum Operating Temperature (°F) | -4 |
| Maximum Storage Temperature (°C) | 70 |
| Maximum Storage Temperature (°F) | 158 |
| Minimum Storage Temperature (°C) | -20 |
| Minimum Storage Temperature (°F) | -4 |
| Resistance Properties | Water-Resistant |
| Color | Black |
| Standards Met | Exceeds Channel and Component Requirements of ANSI/TIA-568-C.2 Channel and Category 6A and ISO11801 Class EA Standards at Swept Frequencies 1 to 500 MHz, Plug Meets IEC 60603-7, Industrial Bulkhead Connection Protects and Seals Connections against Dust and Water Immersion to ANSI/IEC 60529-2004, Meets ANSI/TIA-1096-A, Bulkhead Connection Rated IP65/ P67, Bulkhead Connection Rated UL Type 12, Meets IEEE 802.3af and IEEE 802.3at for PoE Applications, and RoHS Compliant |
| Overall Depth (In.) | 1.65 |
| Overall Depth (mm) | 41.9 |
| Overall Height (In.) | 5.37 |
| Overall Height (mm) | 136.4 |
| Overall Length (In.) | 5.37 |
| Overall Length (mm) | 136.4 |
| Overall Width (In.) | 1.55 |
| Overall Width (mm) | 39.5 |
Panduit - IAEBH6X - Package Information
| UPC | 61305620461 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0150 |
| Standard Ctn. Quantity | 10 |
| Standard Ctn. Volume (cf) | 0.1498 |
