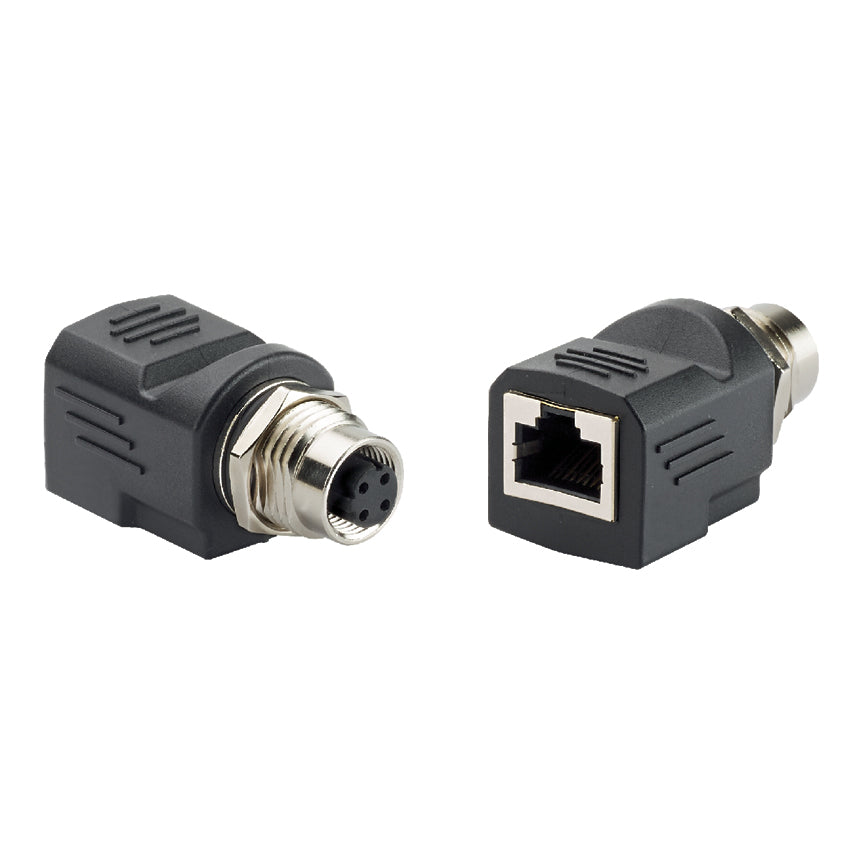

Panduit ICAM12DRJS | M12 D-Code to RJ45 Panel Mount Adapter | UPC -...
Description
Description
M12 D-code to RJ45 industrial adapters shall be applicable for use in manufacturing as well as other industrial environments and shall meet or exceed the requirements of the ANSI/TIA-568-C.2 category 5e, ISO 11801 class D, IEC 61076-2-101 and ODVA ethernet/IP standards. The adapter housing shall be constructed of nylon GF. The adapter shall incorporate an ingress protection rating of IP20 on the RJ45 side and IP68 on the M12 side when mated. The adapter shall offer an extended temperature range as required for more demanding applications. The adapter shall be easily field installable without any special tools.
Panduit IndustrialNet Circular Adapter, Cat 5e/Class D Shielded, M12 D-Code to RJ45 Connector, Panel Mount, Nylon Glass Filled Housing, -25 to 80 deg C, Black
Features + Benefits
- Nylon GF housing with full 360 deg shielding for secure data transmission in high noise (EMI/RFI) environments
- Can be assembled without any special tools
- -40 to 176 deg F rating
- M12x1 thread size
- Rated IP20 (RJ45), IP65 (housing) and IP68 (M12 side
- Adapters provide an ideal solution to support industrial ethernet from the local area network (LAN) based support offices to the processing devices on the plant floor
Panduit ICAM12DRJS Key Specs
| Product Type | M12 D-Code to RJ45 Panel Mount Adapter |
| Color | Black |
| Connector 1 Type | M12 D-Code Plug |
| Overall Width (In.) | 0.97 |
| Overall Width (mm) | 24.6 |
| Overall Depth (In.) | 1.9 |
| Overall Depth (mm) | 48.2 |
| Overall Height (In.) | 0.91 |
| Overall Height (mm) | 23 |
| Sub Brand | IndustrialNet |
| Surface Treatment | Zinc Die cast with Nickel Chrome Plating |
| Standards Met | Exceeds channel and component requirements of ANSI/TIA-568-C.2 Category 5e and ISO 11801 Class D standards at swept frequencies up to 100MHz and meets ODVA Ethernet/IP^ and PROFINET electrical and mechanical performance requirements, Meets UL 1863 and IEC 60603-7-51, Meets IEEE 802.3af and IEEE 802.3at for PoE applications, RoHS compliant. |
| Environment | Manufacturing as well as other industrial environments |
| Connector 2 Type | RJ45 Plug |
| Conductor Gauge (AWG) | 22 |
| Performance Level | Category 5e |
| Termination Style | IDC |
Panduit ICAM12DRJS Data Sheets
| Catalog Cut Sheets | Mil Grade Heat Shrink Cassettes Catalog Page | Download and View |
| Catalog Cut Sheets | Mil Grade Heat Shrink Cassettes Catalog Page | Download and View |
| Part Drawings | Mil Grade Heat Shrink Part Drawing | Download and View |
