Brand: Panduit
|
SKU:
9870051

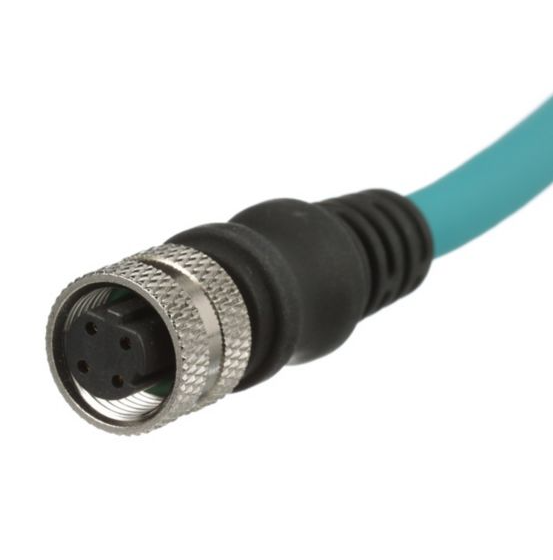

Panduit ICD35T1NTL2M | IndustrialNet M12 Cordset, Female to unterminated, Cat 5e, D-Code, 2m, TL
Regular price
$48.13
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit ICD35T1NTL2M | IndustrialNet M12 Cordset, Female to untermi...
Regular price
$48.13
Unit price
Description
Description
Panduit ICD35T1NTL2M | IndustrialNet M12 Cordset, Female to unterminated, Cat 5e, D-Code, 2m, TL
The IndustrialNet M12 D-Code Category 5e Overmolded Cordset is male to female preterminated with angled connectors. It is constructed of stranded, twisted pair cable for STP installations. The cordset is 600 V rated. The TPU jacket makes it suitable for high-flex applications for increased reliability. The cordset is 2 meters and teal.
Specifications
Specifications
Panduit - ICD35T1NTL2M - Product Categories
- Copper Systems
- Industrial Overmolded Cordsets
Panduit - ICD35T1NTL2M - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | ICD35T1NTL2M |
| Item Description | IndustrialNet M12 Cordset, Female to unterminated, Cat 5e, D-Code, 2m, TL |
| Product Type | Industrial Ethernet Cordset |
| Sub Brand | IndustrialNet |
| Overall Length (ft.) | 6.56 |
| Overall Length (m) | 2 |
| Cable Construction | SF/UTP |
| Nominal Diameter (In.) | 0.241 |
| Nominal Diameter (mm) | 6.1 |
| Connector 1 Type | M12 D-code |
| Connector 2 Type | M12 D-code |
| Color | Teal |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Operating Temperature (°F) | -40 |
| Maximum Operating Temperature (°C) | 75 |
| Maximum Operating Temperature (°F) | 167 |
| Flammability Rating | CM |
| NEMA Rating | 1,3,4,6,6P |
| Jacket Material | Thermoplastic Elastomer |
| PoE Compatibility | PoE+ |
| IEC Variant | 61076-2-101 |
| IP Rating | IP67 |
| Conductor Gauge (kcmil) | 0.4 |
| Conductor Gauge (AWG) | 24 |
| Performance Level | Category 5e |
| Conductor Type | Stranded |
| Patch Cord Type | Shielded |
| Standards Met | UL Type 12, RoHS, Meets IEEE 802.3af and IEEE 802.3at for PoE applications, NEMA, 1, 3 ,4, 6, 6P and IEC IP67, can be used in 600V AWM rated applications |
Panduit - ICD35T1NTL2M - Package Information
| UPC | 61305675489 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0240 |
| Standard Ctn. Quantity | 10 |
| Standard Ctn. Volume (cf) | 0.2404 |
