Panduit ICF5IW-E | Surface Raceway, Ld5 Inside Corner Fitting, Off-...
Regular price
$2.70
Unit price
Brand: Panduit
|
SKU:
131142-EA
Regular price
$2.70
Unit price
Description
Description

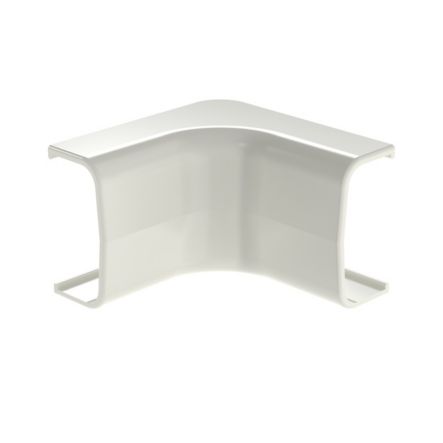

Panduit ICF5IW-E | Surface Raceway, Ld5 Inside Corner Fitting, Off-White
The inside corner fitting is used to efficiently run cables along an inside corner while maintaining a 1 inch bend radius. It is designed to be used with the LD5 raceway and features a snap-on installation. It meets TIA/EIA Standards, is UL5A Listed, and is UL Compliant. It is made of ABS plastic and is Off-White.
Specifications
Specifications
Panduit - ICF5IW-E - Product Categories
- Wire Routing, Management & Protection
- Single Channel Raceway
Panduit - ICF5IW-E - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | ICF5IW-E |
| Item Description | Surface Raceway, Ld5 Inside Corner Fitting, Off-White |
| Product Type | Low Voltage Fittings |
| Sub Brand | Pan-Way |
| Color | Off White |
| Fitting Type | Inside Corner |
| For Use With | LD5 |
| Material | ABS |
| Mount Method | Snap-On |
| Raceway Type | Non-Metallic Surface |
| Standards Met | Ul94V-0, Ft4, Meets TIA/EIA Standards, UL Compliant. |
| Overall Height (In.) | 0.58 |
| Overall Height (mm) | 14.7 |
| Overall Length (In.) | 1.75 |
| Overall Length (mm) | 44.5 |
| Overall Width (In.) | 1.14 |
| Overall Width (mm) | 29 |
| Application | Pan-Way LD Surface Raceways are Designed to Provide Easy and Economical Solutions For Routing any Low Voltage Cable Along Smooth and Clean Perimeter Walls, Baseboards or Ceilings. This Raceway is a Perfect Solution for Schools, Hospitals, Offices, Homes |
Panduit - ICF5IW-E - Package Information
| UPC | 07498326257 |
|---|---|
| Standard Package Quantity | 20 |
| Standard Package Volume (cf) | 0.0539 |
| Standard Ctn. Quantity | 100 |
| Standard Ctn. Volume (cf) | 0.2694 |
Panduit - ICF5IW-E - Videos
| Video 1 | Click to View |
|---|
