Panduit ICFC10WH-X LD10, LDPH10 Bend Radius Inside Corner Fitting, ...
Regular price
$37.86
Unit price
Brand: Panduit
|
SKU:
165417
Regular price
$37.86
Unit price
Description
Description

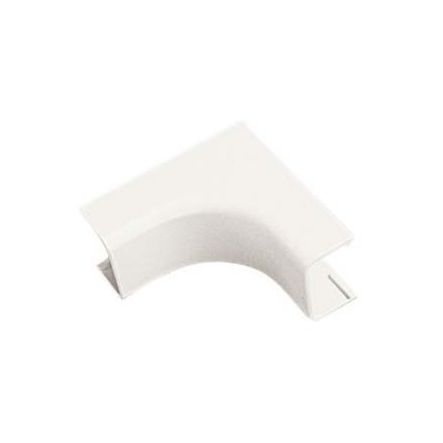

Panduit ICFC10WH-X | Surface Raceway, LD10 / LDPH10 Inside Corner, White
The inside corner fitting is used to efficiently run cables along an inside corner while maintaining a 1 inch bend radius. It is designed to be used with the LD10/LDPH10 raceway and features a snap-on installation. It meets TIA/EIA Standards, is UL5A Listed, and is UL Compliant. It is made of ABS plastic and is White.
One inch bend radius fittings are designed to maintain the TIA/EIA-568-B and 569-B required minimum bend radius for high performance copper and fiber optic cabling systems
Specifications
Specifications
Panduit - ICFC10WH-X - Product Categories
- Wire Routing, Management & Protection
- Single Channel Raceway
Panduit - ICFC10WH-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | ICFC10WH-X |
| Item Description | Surface Raceway, LD10 / LDPH10 Inside Corner, White |
| Product Type | Bend Radius Control Fittings |
| Sub Brand | Pan-Way |
| Color | White |
| Fitting Type | Inside Corner |
| For Use With | LD10, LDPH10 |
| Material | ABS |
| Mount Method | Snap-On |
| Raceway Type | Low Voltage |
| Standards Met | Ul94V-0, Ft4, Meets TIA/EIA Standards, UL5A Listed, UL Compliant. |
| Overall Height (In.) | 0.93 |
| Overall Height (mm) | 23.6 |
| Overall Length (In.) | 2.49 |
| Overall Length (mm) | 63.2 |
| Overall Width (In.) | 1.62 |
| Overall Width (mm) | 41.1 |
| Application | Pan-Way LD Surface Raceways are Designed to Provide Easy and Economical Solutions For Routing any Low Voltage Cable Along Smooth and Clean Perimeter Walls, Baseboards or Ceilings. This Raceway is a Perfect Solution for Schools, Hospitals, Offices, Homes |
Panduit - ICFC10WH-X - Package Information
| UPC | 07498352522 |
|---|---|
| Standard Package Quantity | 10 |
| Standard Package Volume (cf) | 0.1215 |
| Standard. Ctn. Quantity | 50 |
| Standard. Ctn. Volume (cf) | 0.6073 |
Panduit - ICFC10WH-X - Videos
| Video 1 | Click to View |
|---|
