Panduit ICFX10WH-X LDPH10, LD2P10 Power Rated Inside Corner Fitting...
Description
Description

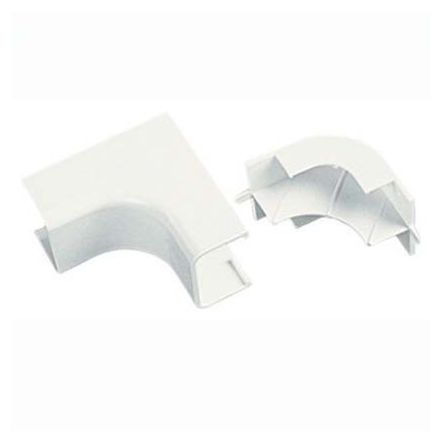

The power rated inside corner fitting is used to efficiently run cables along an inside corner while maintaining a 1 inch bend radius. It is designed to be used with the LDPH10 raceway and features a snap-on installation. It meets TIA/EIA Standards, is UL5A Listed, and is UL Compliant. It is made of ABS plastic and is White.
Multi-channel fittings for LD2P10 are designed to maintain the TIA/EIA-568-B and 569-B required minimum bend radius for high performance copper and fiber optic cabling systems
Specifications
Specifications
Panduit - ICFX10WH-X - Product Categories
- Wire Routing, Management & Protection
- Single Channel Raceway
Panduit - ICFX10WH-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | ICFX10WH-X |
| Item Description | Surface Raceway, LDPH10 Power Rated Inside Corner, White |
| Product Type | Power Rated Fittings |
| Sub Brand | Pan-Way |
| Color | White |
| Fitting Type | Inside Corner |
| For Use With | LDPH10, LD2P10 |
| Material | ABS |
| Mount Method | Snap-On |
| Raceway Type | Power Rated |
| Standards Met | Ul94V-0, Ft4, Meets TIA/EIA Standards, UL5A Listed, UL Compliant. |
| Overall Height (In.) | 2.49 |
| Overall Height (mm) | 63.2 |
| Overall Length (In.) | 2.49 |
| Overall Length (mm) | 63.2 |
| Overall Width (In.) | 1.62 |
| Overall Width (mm) | 41.1 |
| Application | Pan-Way LD Surface Raceways are designed to provide easy and economical solutions for routing any low voltage cable along smooth and clean perimeter walls, baseboards or ceilings. This raceway is a perfect solution for schools, hospitals, offices, homes |
Panduit - ICFX10WH-X - Package Information
| UPC | 07498353067 |
|---|---|
| Standard Package Quantity | 10 |
| Standard Package Volume (cf) | 0.1755 |
| Standard. Ctn. Quantity | 0 |
| Standard. Ctn. Volume (cf) | 0.0000 |
Panduit - ICFX10WH-X - Videos
| Video 1 | Click to View |
|---|
