Brand: Panduit
|
SKU:
249903-EA

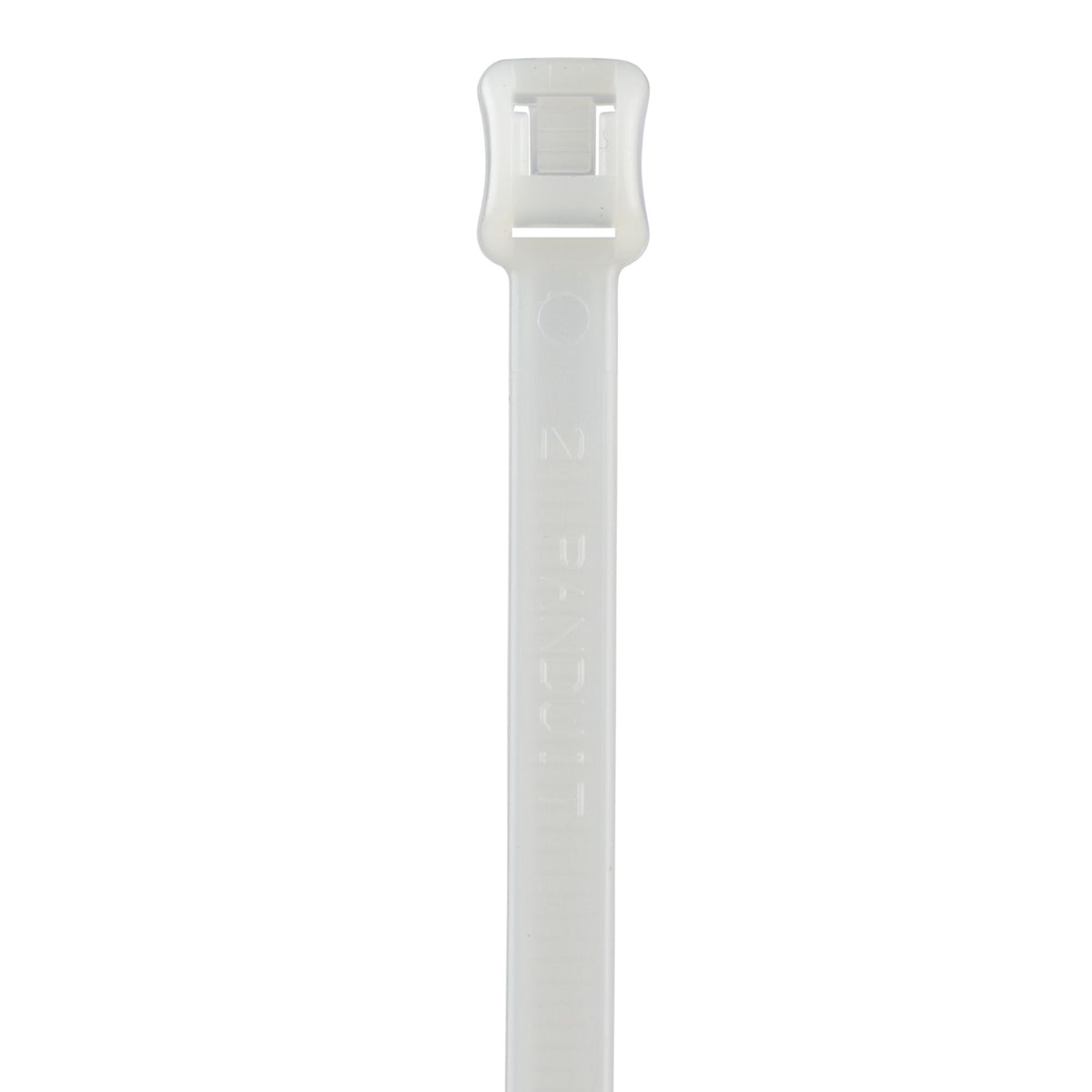

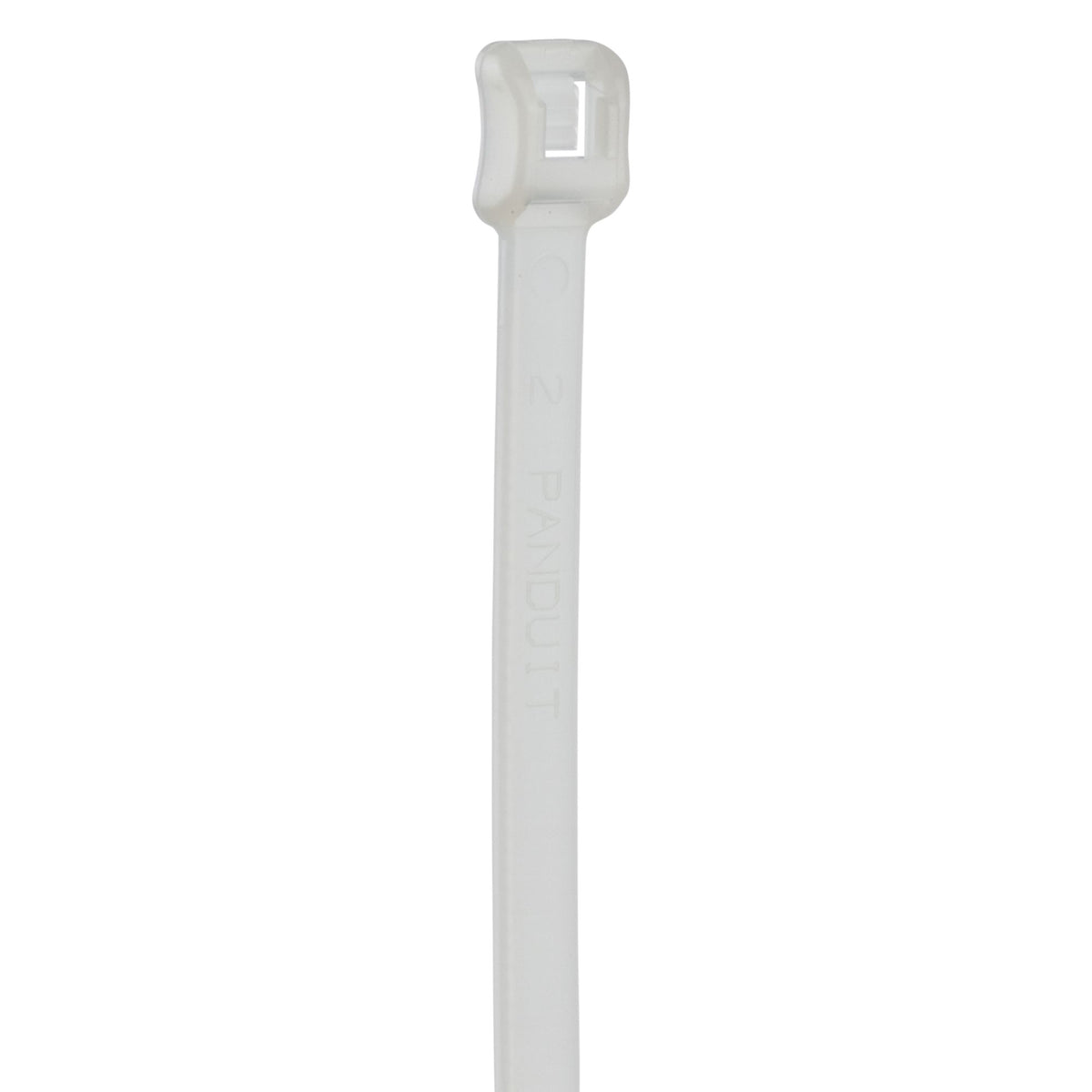

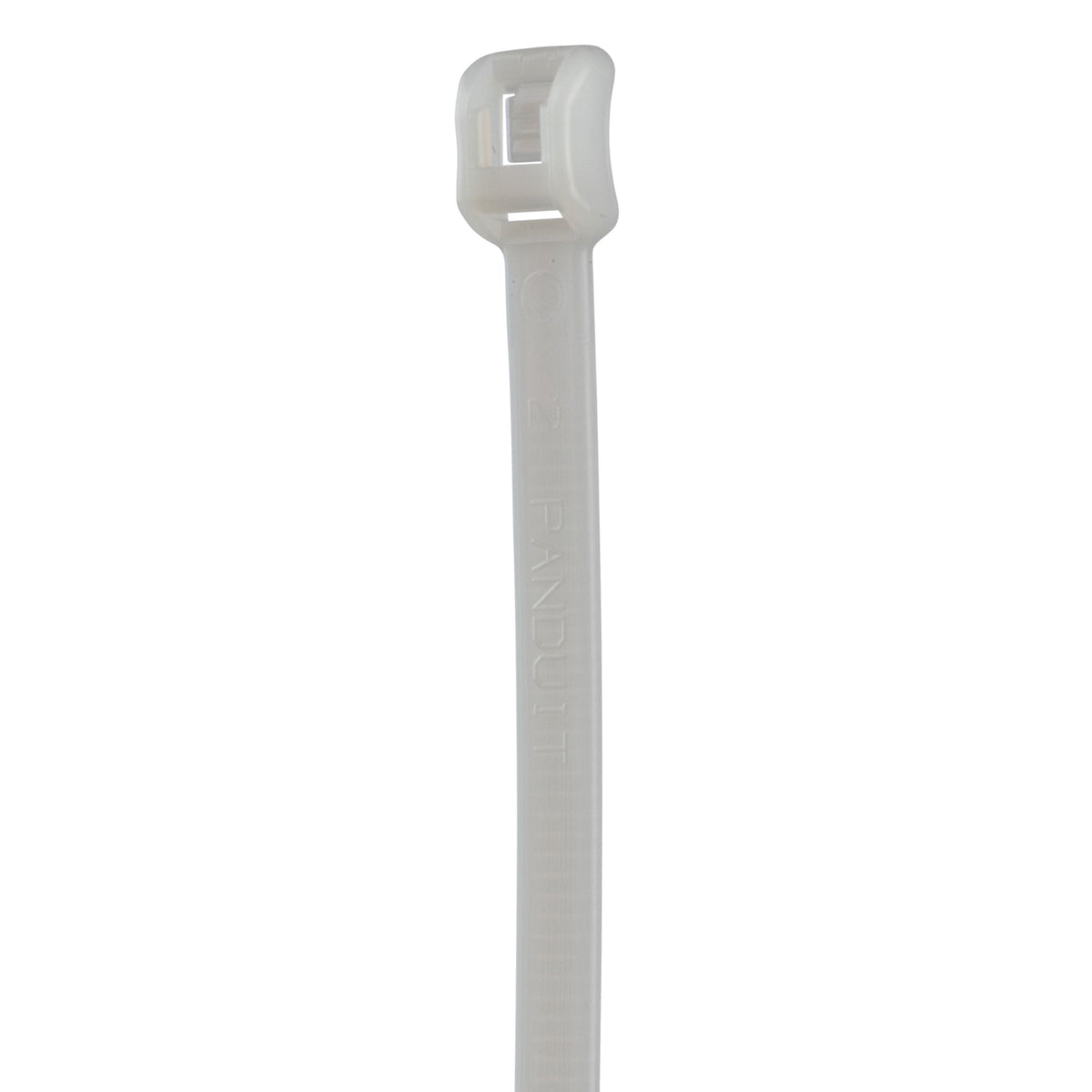

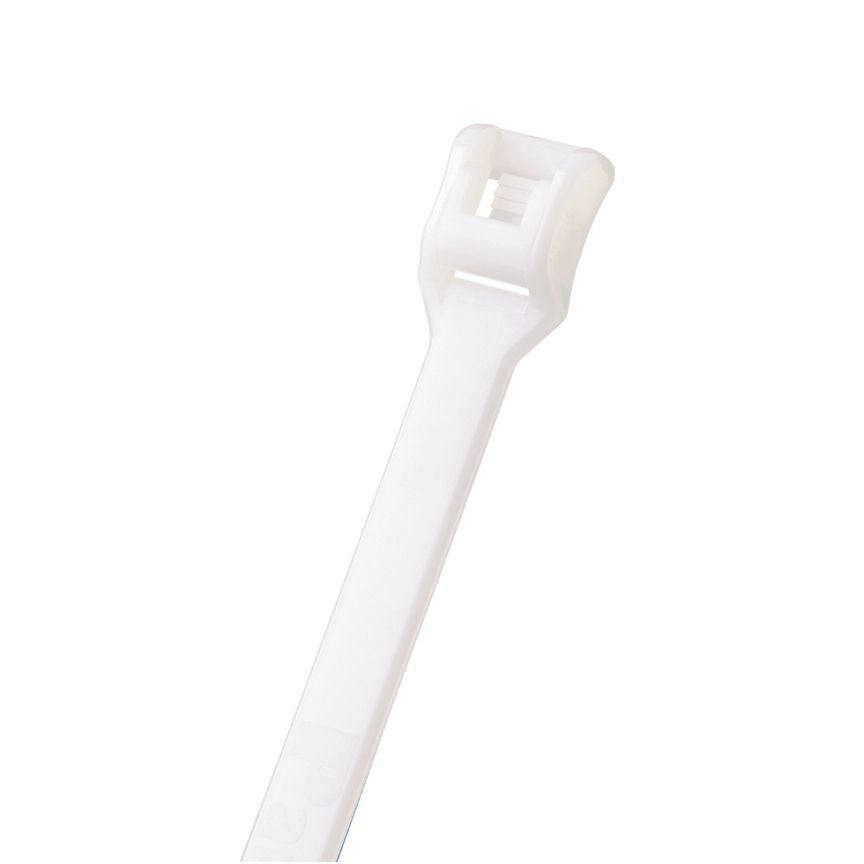

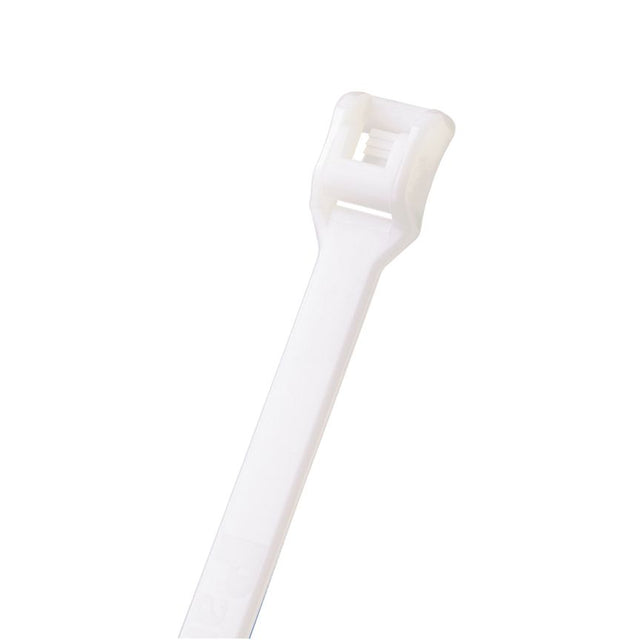

Panduit ILT2S-M | Belt-Ty ILT2S-M Cable Tie
Regular price
$1.46
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit ILT2S-M | Belt-Ty ILT2S-M Cable Tie
Regular price
$1.46
Unit price
Description
Description
Panduit ILT2S-M | Belt-Ty ILT2S-M Cable Tie
Panduit Belt-Ty in line locking ties are easy to use thanks to low-profile snag-free heads and a belt-like parallel entry lock. Plus, with Nylon 6.6 material it's ideal for indoor environments. Standard cross section, 8.3in, Tensile strength: 222, natural, 1000pc.
Panduit ILT2S-M - CABLE TIE - CABLE TIE 8.3" BELT-TY
Specifications
Specifications
Panduit - ILT2S-M - Product Categories
- Wire Routing, Management & Protection
- Cable Ties & Wire Ties
Panduit - ILT2S-M - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | ILT2S-M |
| Item Description | Belt-Ty ILT2S-M Cable Tie |
| Product Type | Cable Tie |
| Sub Brand | Belt-Ty |
| Color | Natural |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Overall Length (In.) | 8.3 |
| Overall Length (mm) | 211 |
| Body Width (In.) | 0.19 |
| Body Width (mm) | 4.8 |
| Body Thickness (In.) | 0.052 |
| Body Thickness (mm) | 1.3 |
| Maximum Bundle Diameter (In.) | 1.88 |
| Maximum Bundle Diameter (mm) | 47.8 |
| Minimum Bundle Diameter (In.) | 0.19 |
| Minimum Bundle Diameter (mm) | 4.8 |
| Minimum Loop Tensile Strength (N) | 222 |
| Minimum Loop Tensile Strength (lb) | 50 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Standards Met | UL 62275 Compliant (Type 2, 21), UL Listed #E56854, UL Recognized #56854 |
| Military Cross Reference Number | MS3367-23-9 |
| Application | General |
| Part Features | Parallel-entry cable tie that threads like a belt (180° entry), Low profile head avoids snags and reduces overall bundle size, 35% lower head height than conventional 90° ties |
Panduit - ILT2S-M - Package Information
| UPC | 07498376696 |
|---|---|
| Standard Package Quantity | 1000 |
| Standard Package Volume (cf) | 0.1794 |
| Standard Ctn. Quantity | 10000 |
| Standard Ctn. Volume (cf) | 1.7943 |
Panduit - ILT2S-M - Videos
| Video 1 | Click to View |
|---|
