Brand: Panduit
|
SKU:
1002882
Panduit ILT3S-C0 | Belt-Ty ILT3S-C0 Cable Tie
Regular price
$66.58
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit ILT3S-C0 | Belt-Ty ILT3S-C0 Cable Tie
Regular price
$66.58
Unit price
Description
Description

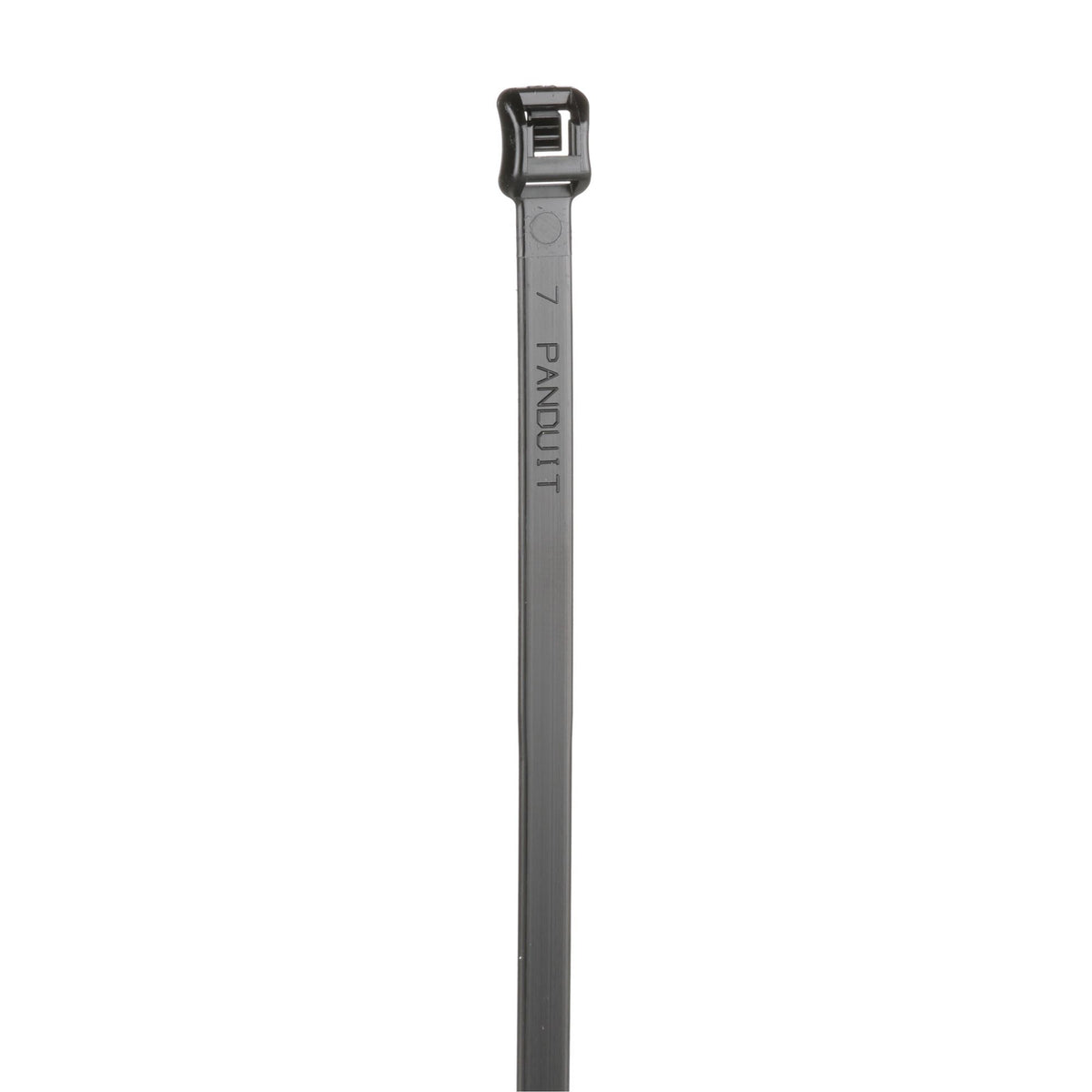

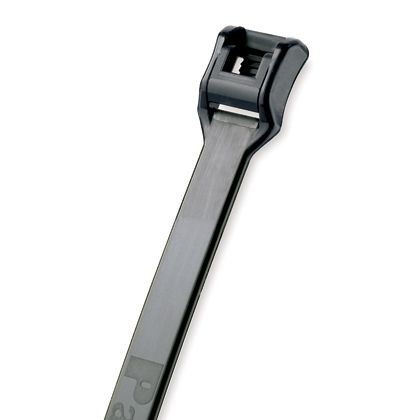

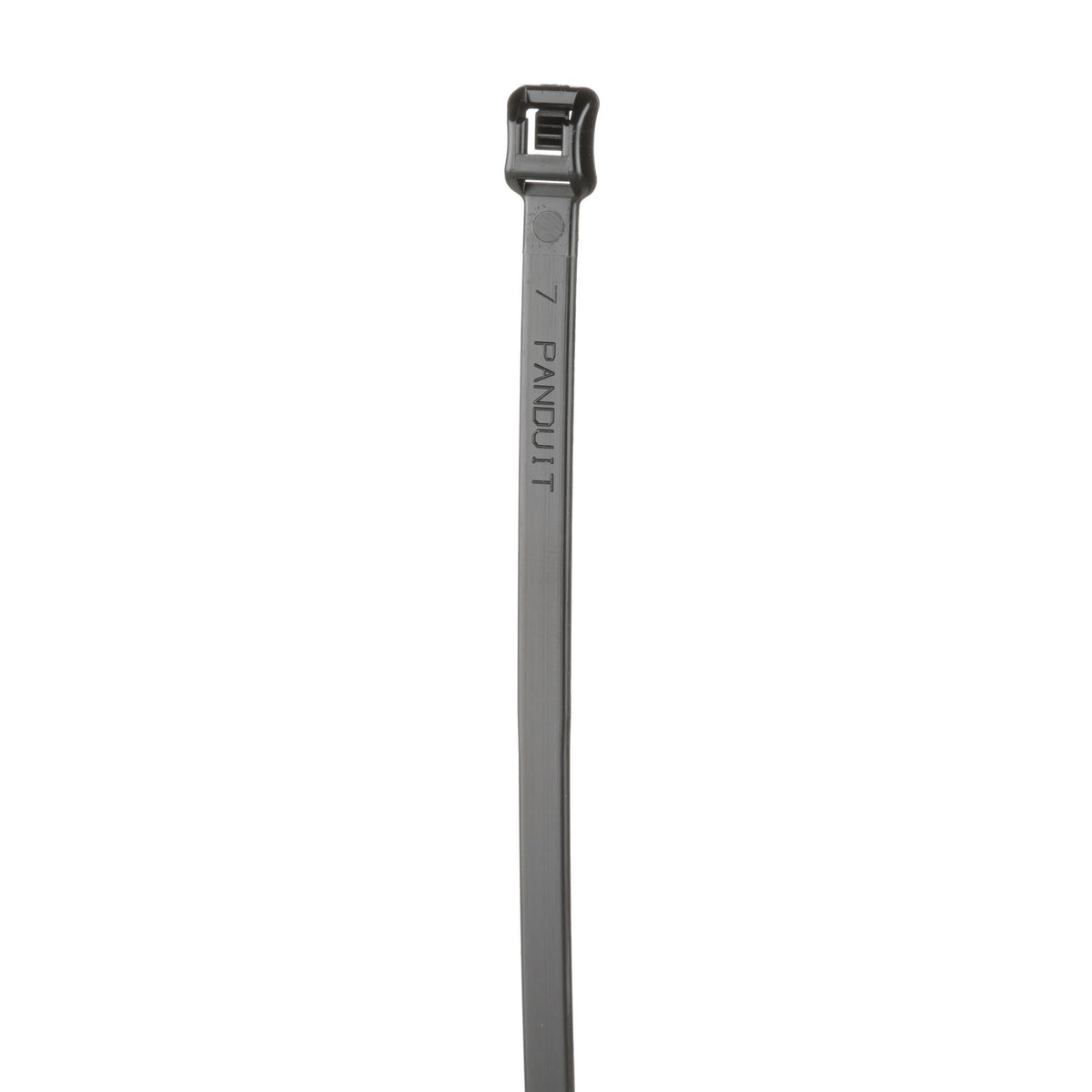

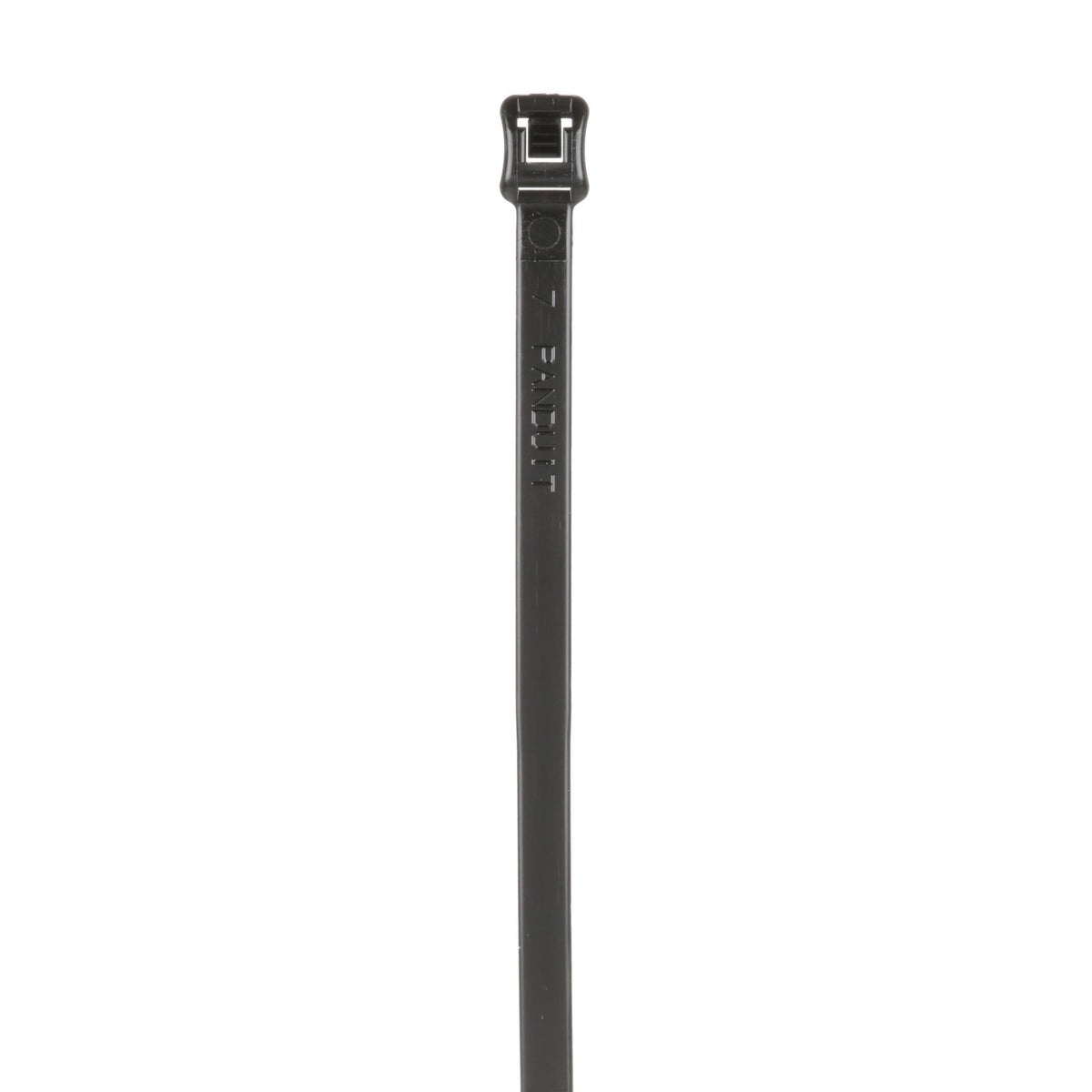

Panduit ILT3S-C0 | Belt-Ty ILT3S-C0 Cable Tie
Panduit Belt-Ty in line locking ties are easy to use thanks to low-profile snag-free heads and a belt-like parallel entry lock. Plus, with weather-resistant Nylon 6.6 material, they're ideal for indoor and outdoor environments and harsh UV light. Standard cross section, 11.5in, Tensile strength: 222, black, 100pc.
Panduit ILT3S-C0 Belt-ty In-line Cable Tie11.5"l X 0.19"w, Rohsul 94v-2 100/pk Bl
Specifications
Specifications
Panduit - ILT3S-C0 - Product Categories
- Wire Routing, Management & Protection
- Cable Ties & Wire Ties
Panduit - ILT3S-C0 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | ILT3S-C0 |
| Item Description | Belt-Ty ILT3S-C0 Cable Tie |
| Product Type | Cable Tie |
| Sub Brand | Belt-Ty |
| Color | Black |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Resistance Properties | UV Resistant |
| Overall Length (In.) | 11.5 |
| Overall Length (mm) | 292 |
| Body Width (In.) | 0.19 |
| Body Width (mm) | 4.8 |
| Body Thickness (In.) | 0.052 |
| Body Thickness (mm) | 1.3 |
| Maximum Bundle Diameter (In.) | 3 |
| Maximum Bundle Diameter (mm) | 76.2 |
| Minimum Bundle Diameter (In.) | 0.19 |
| Minimum Bundle Diameter (mm) | 4.8 |
| Minimum Loop Tensile Strength (N) | 222 |
| Minimum Loop Tensile Strength (lb) | 50 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Standards Met | 89/60111 (E3), RoHS Compliant |
| For Use With | GTS-E, GS2B-E, GTH-E, GS4H-E, PTS, PTH |
| Application | General |
| Part Features | Parallel-entry cable tie that threads like a belt (180° entry), Low profile head avoids snags and reduces overall bundle size, 35% lower head height than conventional 90° ties |
Panduit - ILT3S-C0 - Package Information
| UPC | 07498376670 |
|---|---|
| Standard Package Quantity | 100 |
| Standard Package Volume (cf) | 0.0534 |
| Standard Ctn. Quantity | 1000 |
| Standard Ctn. Volume (cf) | 0.5339 |
