Panduit ILT3S-M | BeltTyTie, NYL, STD, 11.5L, NAT, PK1000
Regular price
$291.82
Unit price
Description
Description
Panduit ILT3S-M | BeltTyTie,NYL,STD,11.5L,NAT,PK1000

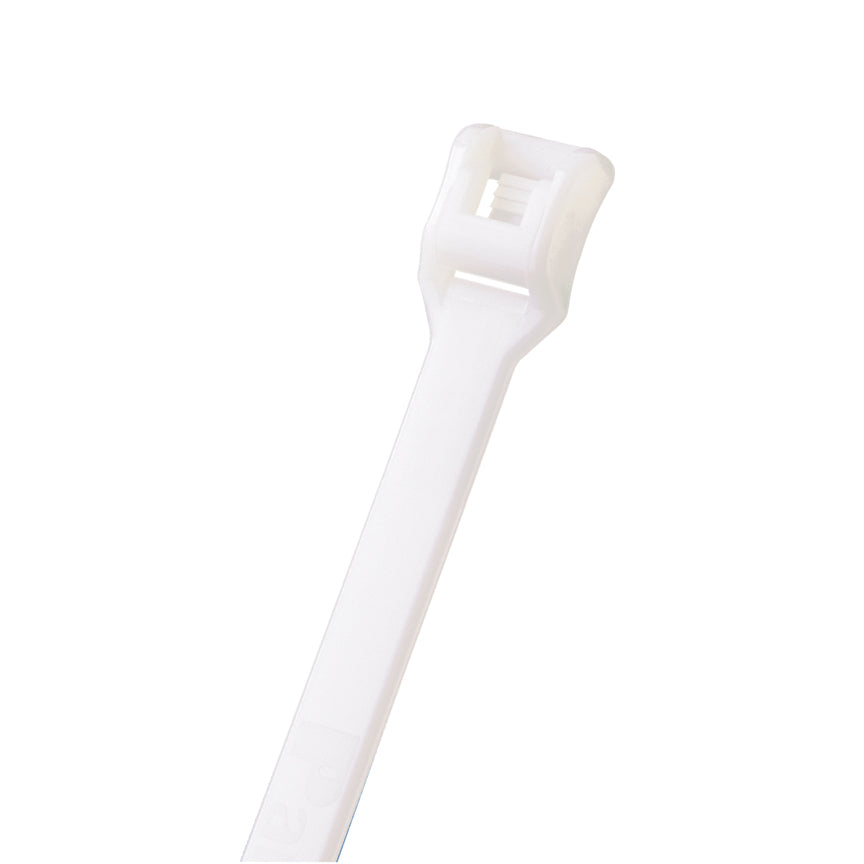

Secure your cable bundles with our In Line Locking Tie. Featuring low-profile, snag-free heads and a belt-like parallel entry lock, it ensures reliable, tidy installations on any job site.
Panduit Belt-Ty Cable Tie, In-Line Plenum Rated Standard, 11-1/2 in Length, 0.19 in Width, 0.05 in Thickness, 3 in Bundle Dia, Locking, 50 lb Tensile, -76 to 185 deg F, Nylon 6.6, Natural
Panduit - ILT3S-M - Features
- Parallel entry cable tie that threads like a belt 180 deg entry
- Low profile head avoids snags and reduces overall bundle size
- 35% lower head height than conventional 90 deg ties
- Parallel entry limits exposure to sharp edges and protects workers arms or hands
- Curved tip is easy to pickup from flat surfaces and allows faster initial threading to speed installation
Specifications
Specifications
Panduit - ILT3S-M - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | ILT3S-M |
| Product Type | Cable Tie |
| Sub Brand | Belt-Ty |
| Color | Natural |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Overall Length (In.) | 11.5 |
| Overall Length (mm) | 292 |
| Body Width (In.) | 0.19 |
| Body Width (mm) | 4.8 |
| Body Thickness (In.) | 0.052 |
| Body Thickness (mm) | 1.3 |
| Maximum Bundle Diameter (In.) | 3 |
| Maximum Bundle Diameter (mm) | 76.2 |
| Minimum Bundle Diameter (In.) | 0.19 |
| Minimum Bundle Diameter (mm) | 4.8 |
| Minimum Loop Tensile Strength (N) | 222 |
| Minimum Loop Tensile Strength (lb) | 50 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| UPC | 07498376671 |
Panduit - ILT3S-M - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 3926.90.9985 |
Panduit - ILT3S-M - Videos
| Panduit ILT3S-M Video 1 | Click to View |
|---|
