Panduit IMLTFC137H-C6L | StrongHold™ Fully Coated Metal Locking Cab...
Description
Description

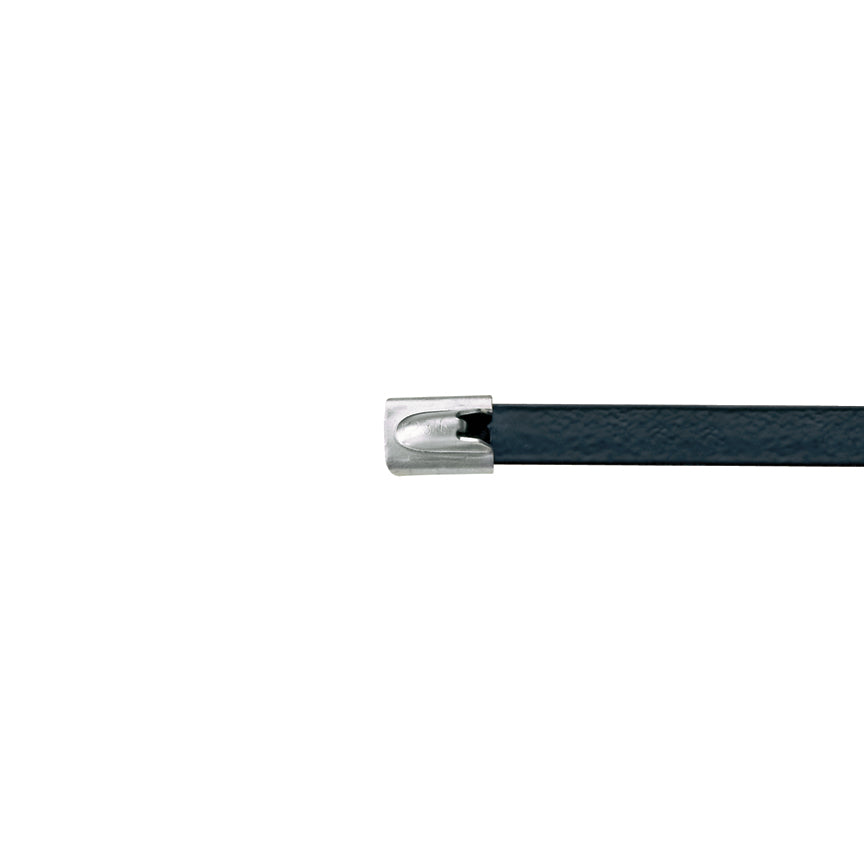

Panduit StrongHold Cable Tie, 1-Piece Fully Coated Heavy, Series: IMLT, 18-1/2 in Length, 0.4 in Width, 0.01 in Thickness, 0.5 to 5.4 in Bundle Dia, Lock Mechanism: Self Locking, 890 N Tensile, -40 to 302 deg F, 316L Stainless Steel, Black
To secure and separate cables in harsh environments, choose our metal locking tie. This fully coated stainless steel tie resists corrosion and handles extreme temperatures and weather.
StrongHold IMLTFC137H-C6L Fully Coated Metal Locking Ties are suitable for a variety of environments, from general purpose applications all the way to chemical plants and refineries the StrongHold IMLTs are strong enough to withstand the most corrosive environments. Heavy, 18.2" (462mm) length, 0.010" (0.25mm) thick. For indoor/outdoor use, made of 316L stainless steel, fully coated, are black in color, and come in packages of 100.
Panduit - IMLTFC137H-C6L - Features
- Flame resistant
- For use with GS4MT/PPTMT/ST2MT/HTMT and PBTMT cable tie tool
- 5-1/2 in enclosure
Specifications
Specifications
Panduit - IMLTFC137H-C6L - Specifications
| Type | Cables Ties And Accessories |
|---|---|
| UNSPSC Code | 39121703 |
| Technical Information | UL Listed (File # E56854) |
| Product Type | Heavy Duty Cable Tie |
| Sub Brand | StrongHold™ |
| Color | Black |
| Environment | Indoor/Outdoor |
| Material | Stainless Steel Type 316L |
| Finish/Coating | Fully Coated |
| Resistance Properties | Flame-Resistant |
| Overall Length (In.) | 18.2 |
| Overall Length (mm) | 462 |
| Body Width (In.) | 0.319 |
| Body Width (mm) | 8.1 |
| Body Thickness (In.) | 0.012 |
| Body Thickness (mm) | 0.3 |
| Maximum Bundle Diameter (In.) | 5.4 |
| Maximum Bundle Diameter (mm) | 137 |
| Minimum Bundle Diameter (In.) | 0.5 |
| Minimum Bundle Diameter (mm) | 12.7 |
| Minimum Loop Tensile Strength (N) | 890 |
| Minimum Loop Tensile Strength (lb) | 200 |
| Maximum Operating Temperature (°C) | 150 |
| Maximum Operating Temperature (°F) | 302 |
| UPC | 61305610882 |
Panduit - IMLTFC137H-C6L - Package Information
| UPC | 61305610882 |
|---|---|
| Standard Packaging Quantity | 100 |
| Standard Packaging Volume (cf) | 0.0089 |
| Standard Ctn. Quantity | 500 |
| Standard Ctn. Volume (cf) | 0.0444 |
Panduit - IMLTFC137H-C6L - Videos
| Panduit IMLTFC137H-C6L Videos | Click to View |
|---|
