Panduit ISFCH5C04ABL-XG | Industrial Copper Cable, Cat 5E, Sf/Utp, ...
Description
Description
Panduit ISFCH5C04ABL-XG | CABLE CAT5E | 24-4P F/UTP-CM SOL BC CAT5E

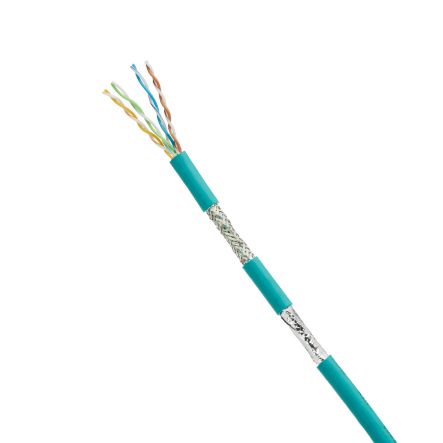

The Cat 5e SF/UTP copper cable is constructed of 24/7 AWG stranded copper conductors with a High Density Polyethylene (HDPE) insulation. The twisted pair copper conductors are wrapped with a foam polypropylene tape to form a core. All four pairs are surrounded by an overall braided shield and metallic foil and covered with a thermoplastic elastomer (TPE) jacket. The cable is supplied 305 meters (1,000 feet) to a reel and black jacketing.
Specifications
Specifications
Panduit - ISFCH5C04ABL-XG - Product Categories
- Copper Systems
- Industrial Copper Cable
Panduit - ISFCH5C04ABL-XG - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | ISFCH5C04ABL-XG |
| Item Description | Industrial Copper Cable, Cat 5E, Sf/Utp, 24 Awg, Bl |
| Note | Available in all regions |
| Performance Level | Category 5e |
| Cable Construction | SF/UTP |
| Flammability Rating | CM |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Nominal Cable Outside Diameter (In.) | 0.28 |
| Nominal Cable Outside Diameter (mm) | 7.2 |
| Maximum Operating Temperature (°C) | 80 |
| Maximum Operating Temperature (°F) | 176 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Operating Temperature (°F) | -40 |
| Maximum Installation Temperature (°C) | 80 |
| Maximum Installation Temperature (°F) | 176 |
| Minimum Installation Temperature (°C) | -40 |
| Minimum Installation Temperature (°F) | -40 |
| Sub Brand | IndustrialNet |
| Maximum Installation Tension (lb) | 25 |
| Maximum Installation Tension (N) | 110 |
| Bend Radius (In.) | 0.57 |
| Bend Radius (mm) | 14.4 |
| Number of Pairs | 4 |
| Conductor Material | Copper |
| Conductor Type | Stranded (24/7) |
| Overall Length (m) | 305 |
| Conductor Gauge (AWG) | 24 |
| Insulation Material | HDPE |
| Insulation Diameter (In.) | 0.04 |
| Insulation Diameter (mm) | 1 |
| Maximum Voltage (V) | 80 |
| Standards Met | Meets or exceeds the requirements IEC 61156-6 Category 5e, ANSI/TIA-568-C.2 Category 5e and ODVA Ethernet/IP |
| and CC-Link standards; Standard compliances: UL AWM Style 2463 (80°C 600 V) Flex Life Test: 1 million cycles at 10 x cable diameter; 10 million cycles at 20x cable diameter Torsion Life Test: 3 million cycles, 360° Oil resistance 6 months @ 20°C; RoHS Compliant | Color |
| Black | Overall Length (ft.) |
| 1 | Packaging Type |
| Reel | Product Type |
Panduit - ISFCH5C04ABL-XG - Package Information
| UPC | 07498383822 |
|---|---|
| Standard Package Quantity | 1000 |
| Standard Package Volume (cf) | 40.7407 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
