Panduit ISFX5502ATL-LED | Copper Cable, Cat 5e, 24/7 AWG, PUR, SF/U...
Description
Description

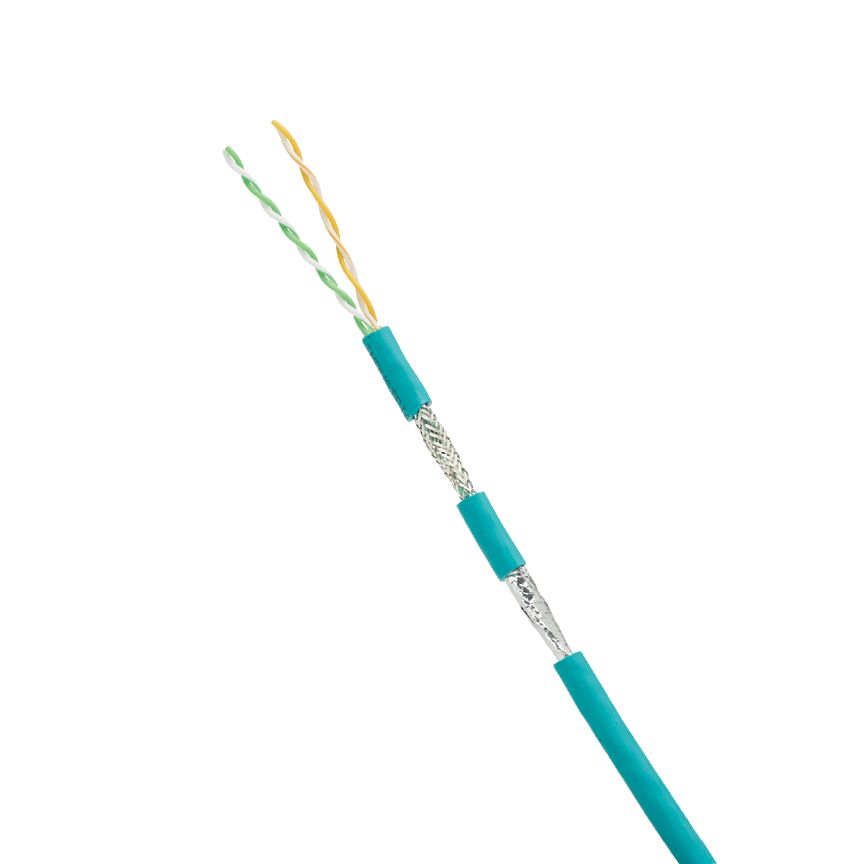

The Cat 5e SF/UTP copper cable is constructed of 24/7 AWG stranded copper conductors with PE insulation. The copper conductors are twisted in pairs and wrapped by an overall metallic foil and braided shield and covered with a polyurethane (PUR) jacket which is oil, ozone, and abrasion-resistant. The cable is supplied 500 meters (1640 feet) to a reel and teal.
Panduit ISFX5502ATL-LED 24awg/2p Cat5e Sf/utp Cu24/7 Awg Pe/ Pur Teal500m Roll
Specifications
Specifications
Panduit - ISFX5502ATL-LED - Product Categories
- Copper Systems
- Industrial Copper Cable
Panduit - ISFX5502ATL-LED - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | ISFX5502ATL-LED |
| Item Description | Copper Cable, Cat 5e, 24/7 AWG, PUR, SF/UTP, TL |
| Note | Available in all regions |
| Environment | Harsh Environment |
| Performance Level | Category 5e |
| Cable Construction | SF/UTP |
| Resistance Properties | Abrasion-Resistant |
| Jacket Material | Polyurethane |
| Nominal Cable Outside Diameter (In.) | 0.252 |
| Nominal Cable Outside Diameter (mm) | 6.4 |
| Maximum Operating Temperature (°C) | 80 |
| Maximum Operating Temperature (°F) | 176 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Operating Temperature (°F) | -40 |
| Maximum Installation Temperature (°C) | 80 |
| Maximum Installation Temperature (°F) | 176 |
| Minimum Installation Temperature (°C) | -40 |
| Minimum Installation Temperature (°F) | -40 |
| Sub Brand | IndustrialNet |
| Maximum Installation Tension (lb) | 18 |
| Maximum Installation Tension (N) | 80 |
| Bend Radius (In.) | 2.02 |
| Bend Radius (mm) | 51.2 |
| Number of Pairs | 2 |
| Conductor Material | Copper |
| Conductor Type | Stranded (24/7) |
| Overall Length (m) | 500 |
| Conductor Gauge (AWG) | 24 |
| Insulation Material | Polyethylene |
| Insulation Diameter (In.) | 0.04 |
| Insulation Diameter (mm) | 1 |
| Maximum Voltage (V) | 80 |
| Standards Met | Exceeds the requirements IEC 61156-6 and ANSI/TIA-568-C.2 Category 5e and ODVA EtherNet/IP standards; Standard compliances: Flexure IEC 61935-2Flex Life Test: 1 million cycles at 10x cable diameter; 10 million cycles at 20x cable diameter Torsion Life Test: 3 million cycles, 360° Ozone resistance VDE 0472-805 Oil resistance EN 60811-2-1 (7 days x 24hrs/90°C); |
| Color | Teal |
| Overall Length (ft.) | 1640 |
| Packaging Type | Reel |
| Product Type | Copper Cable |
Panduit - ISFX5502ATL-LED - Package Information
| UPC | 07498361558 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 3.4058 |
| Standard Ctn. Quantity | 6 |
| Standard Ctn. Volume (cf) | 20.4351 |
