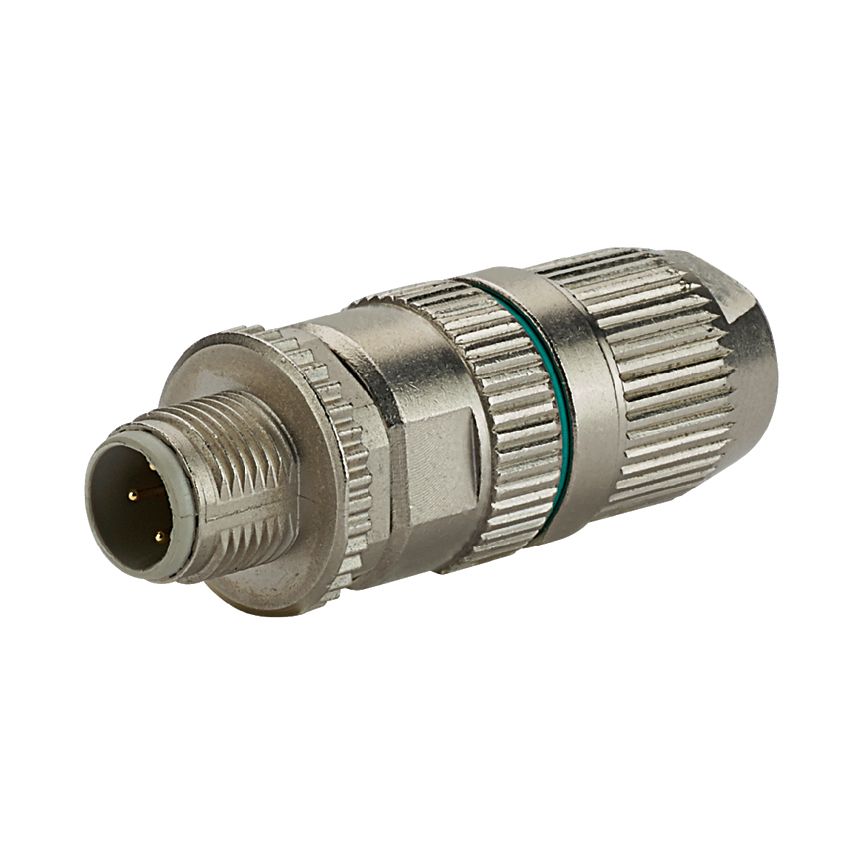

Panduit ISPS5E44MFA | M12 D-Code Field Terminable Plug | UPC - 07498384134

The M12 D-Code modular plug is field terminable for use with industrial grade, 26/7 - 22/7 AWG stranded, Cat 5e UTP or shielded copper cable. The terminable plug is constructed of a zinc cast housing with a 360° shield. The plug has an ingress protection rating of IP65/IP67 and offers an extended temperature range as required for more demanding applications. It is easily attachable without any special tools and is capable of termination to a 2-pair stranded or solid twisted-pair copper cable.

---

Panduit ISPS5E44MFA Key Specs

Product Type	M12 D-Code Field Terminable Plug
Color	Metallic
Connector 1 Type	D-code
Overall Width (In.)	0.59
Overall Width (mm)	15.9
Overall Depth (In.)	2.07
Overall Depth (mm)	52.6
Overall Height (In.)	0.77
Overall Height (mm)	19.5
Sub Brand	IndustrialNet
Surface Treatment	Zinc Die cast with Nickel Chrome Plating
Standards Met	Exceeds channel and component requirements of ANSI/TIA-568-C.2 Category 5e and ISO 11801 Class D standards at swept frequencies up to 100MHz and meets ODVA Ethernet/IP^ and PROFINET electrical and mechanical performance requirements, Meets UL 1863 and IEC 60603-7-51, Meets IEEE 802.3af and IEEE 802.3at for PoE applications, RoHS compliant.
Environment	Manufacturing as well as other industrial environments
Conductor Gauge (AWG)	22
Performance Level	Category 5e
Termination Style	IDC
