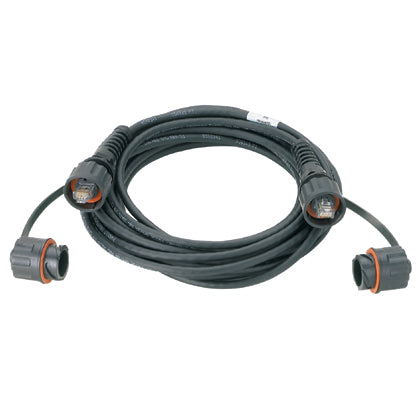

Panduit ISTP6X5MBL | Patch Cord | UPC - 61305613343
Regular price
$227.59
Unit price
Brand: Panduit
|
SKU:
MM5M-PDTC6A-AS-02
Regular price
$227.59
Unit price
Description
Description
Category 6A IndustrialNet, SFTP, Patch Cord with Panduit Plug Caps, 5 meter length
Panduit ISTP6X5MBL | Patch Cord | UPC - 61305613343 Key Specs
| Application | Patch Cords provide an ideal solution to support industrial Ethernet from the Local Area Network (LAN) based support offices to the processing devices on the plant floor even under harsh industrial conditions. Innovative design features provide a secure, reliable connection for superior data transmission in work cells where moisture and dust/ particles are encountered, in temperature extremes and in applications with vibration. |
| Product Type | Patch Cord |
| Conductor Gauge (AWG) | 24 |
| Conductor Gauge (kcmil) | 0.4 |
| Sub Brand | IndustrialNet |
| Performance Level | Category 6A |
| Conductor Type | Stranded |
| Cable Construction | STP |
| Patch Cord Type | Shielded |
| Connector 1 Type | Modular Plug |
| Connector 2 Type | Modular Plug |
| Overall Length (m) | 5 |
| Nominal Cable Outside Diameter (mm) | 7.4 |
| Wiring Scheme | T568B |
| Maximum Operating Temperature (°C) | 70 |
| Minimum Operating Temperature (°C) | -20 |
| Boot Color | Black |
| Color | Black |
| Flammability Rating | CM/CMX |
| Standards Met | Exceeds channel and component requirements of ANSI/TIA-568-C.2 Category 6A and ISO11801 Class EA standards at swept frequencies 1 to 500 MHz, Patch cords meets IEC 60603-7; housing meets IEC 61076-3-106, Meets ANSI/TIA-1096-A; contacts plated with 50 microinches of gold for superior performance, Bulkhead connection rated IP65/IP67 for dust protection and temporary liquid immersion, Meets IEEE 802.3af and IEEE 802.3at for PoE applications, RoHS complaint |
Panduit ISTP6X5MBL | Patch Cord | UPC - 61305613343 Data Sheets
| Technology Briefs | Decision to Install Cat 6A: COTB04--WW-ENG | Download and View |
| Part Drawings | Category 6A IndustrialNet, SFTP, Patch Cords with Panduit Plugs | Download and View |
| Specification Sheets | IndustrialNet TX6A Patch Cords: COSP400 | Download and View |
Panduit ISTP6X5MBL | Patch Cord | UPC - 61305613343 Environmental Information
| Panduit's RoHS Statement | Download and View |
