Brand: Panduit
|
SKU:
455752

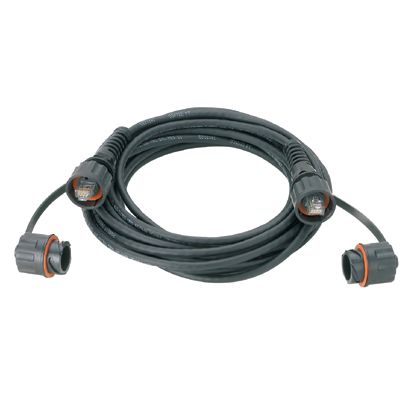

Panduit ISTPCH3MBLY | IndustrialNet™ Shielded Cat 5e Patch Cord, 1 Meter, Stranded Wire, No Dust Caps
Regular price
$85.17
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit ISTPCH3MBLY | IndustrialNet™ Shielded Cat 5e Patch Cord, 1 ...
Regular price
$85.17
Unit price
Description
Description
Panduit ISTPCH3MBLY | IndustrialNet™ Shielded Cat 5e Patch Cord, 1 Meter, Stranded Wire, No Dust Caps
Patch cord constructed of industrial grade shielded Category 5e stranded cable with shielded modular plugs. Does not include dust caps.
Patch cord constructed of industrial grade shielded Category 5e stranded cable with shielded modular plugs. Does not include dust caps.
Panduit - ISTPCH3MBLY - Features
- These small cables minimize waste, optimize cable management, speed deployment and improve flexibility and manageability
Specifications
Specifications
Panduit - ISTPCH3MBLY - Specifications
| Product Type | Industrial Copper Patch Cord |
|---|---|
| Application | Patch Cords provide an ideal solution to support industrial Ethernet from the Local Area Network (LAN) based support offices to the processing devices on the plant floor even under harsh industrial conditions. Innovative design features provide a secure, reliable connection for superior data transmission in work cells where moisture and dust/ particles are encountered, in temperature extremes and in applications with vibration. |
| Conductor Gauge (AWG) | 24 |
| Conductor Gauge (kcmil) | 0.4 |
| Sub Brand | IndustrialNet™ |
| Performance Level | Category 5e |
| Conductor Type | Stranded |
| Cable Construction | SF/UTP |
| Patch Cord Type | Shielded |
| Plug Housing Material | Polycarbonate |
| Jacket Material | Thermoplastic Elastomer |
| Overall Length (m) | 3 |
| Nominal Cable Outside Diameter (mm) | 7.4 |
| Wiring Scheme | RJ45/T568A |
| Maximum Operating Temperature (°C) | 70 |
| Minimum Operating Temperature (°C) | -20 |
| Boot Color | Black |
| Color | Black |
| Flammability Rating | CM |
| Standards Met | Meets all applicable ANSI/TIA-968-A requirements; contacts plated with 50 microinches of gold for superior performance, Meets IEC 60603-7, Meets IEEE 802.3af and IEEE 802.3at for PoE applications, UL AWM Style 2463 (80°C 600 V) Flex Life Test: 1 million cycles at 10x cable diameter; 10 million cycles at 20x cable diameter Torsion Life Test: 3 million cycles, 360°, RoHS Compliant |
| UPC | 07498305380 |
Panduit - ISTPCH3MBLY - Package Information
| UPC | 07498305380 |
|---|---|
| Standard Packaging Quantity | 1 |
| Standard Packaging Volume (cf) | 0.0456 |
| Standard Ctn. Quantity | 10 |
| Standard Ctn. Volume (cf) | 0.4563 |
