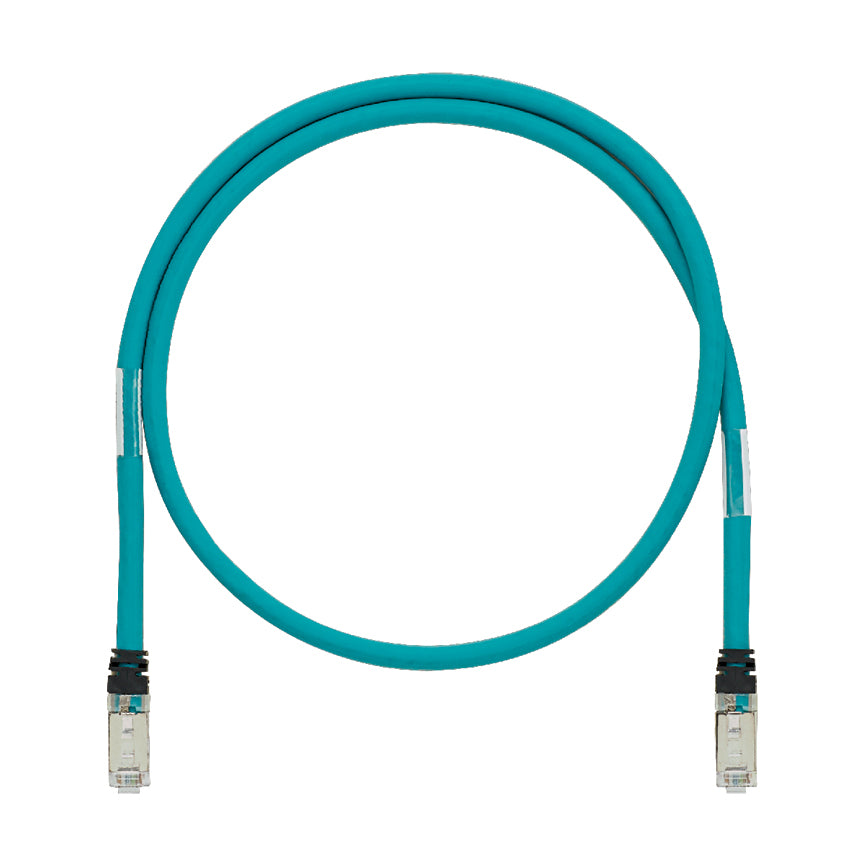

Panduit ISTPH6X0.3MTL | Industrial Copper Patch Cord | UPC - 61305657173

The IndustrialNet Cat 6A Shielded Patch Cord is constructed of industrial grade, 26 AWG, SF/UTP, twisted pair, stranded, CMR cable with industrial bulkhead modular plugs with black strain relief boots. It is designed to support high-flex applications and is rated for 600 V panel or on-machine applications where space is shared with high voltage power cables. The patch cord is 0.3 meters in length and teal.

---

Panduit ISTPH6X0.3MTL | Industrial Copper Patch Cord | UPC - 61305657173 Key Specs

Application	(1) 10BASE-T (Ethernet)(2) 100BASE-T (Fast Ethernet)(3) 1000BASE-T (Gigabit Ethernet)(4) Industrial Ethernet(5) Ethernet/IP(6) Control Panel deployments featuring power source voltages(7) Uplinks featuring gigabit data transmission from the control panel to the consolidation point(8) High flex applications – Robotic, C-Track
Product Type	Industrial Copper Patch Cord
Conductor Gauge (AWG)	26
Conductor Gauge (kcmil)	0.2
Sub Brand	IndustrialNet
Performance Level	Category 6A
Conductor Type	Stranded
Patch Cord Type	Shielded
Plug Housing Material	Polycarbonate
Jacket Material	Thermoplastic Elastomer
Connector 1 Type	Modular Plug
Connector 2 Type	Modular Plug
Overall Length (m)	0.3
Nominal Cable Outside Diameter (mm)	7.4
Wiring Scheme	T568B
Maximum Operating Temperature (°C)	60
Minimum Operating Temperature (°C)	-10
Maximum Storage Temperature (°C)	70
Minimum Storage Temperature (°C)	-40
