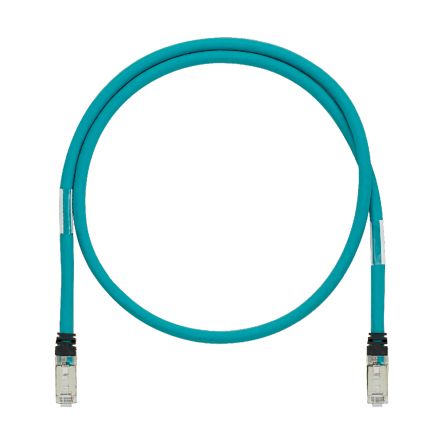

Panduit ISTPHCH0.6MBL | IndustrialNet Patch Cord
Regular price
$48.31
Unit price
Brand: Panduit
|
SKU:
MM0.6M-PDTC5E-AS-02
Regular price
$48.31
Unit price
Description
Description
Panduit ISTPHCH0.6MBL | IndustrialNet Patch Cord
Patch Cord, IndustrialNET, Cat5e, Shielded, 600V, RJ45 plug to RJ45 plug, Black, 0.6 meter
Panduit ISTPHCH0.6MBL Patch Cord, IndustrialNET, Cat5e, Shielded, 600V, RJ45 plug to RJ45 plug, Black, 0.6m
Specifications
Specifications
Panduit - ISTPHCH0.6MBL - Product Categories
- Copper Systems
- Industrial Copper Patch Cords
Panduit - ISTPHCH0.6MBL - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | ISTPHCH0.6MBL |
| Item Description | IndustrialNet Patch Cord |
| Application | (1) 10BASE-T (Ethernet) (2) 100BASE-T (Fast Ethernet) (3)1000BASE-T (Gigabit Ethernet) (4) Industrial Ethernet (5) Ethernet/IP (6) Control Panel deployments featuring power source voltages (7) Uplinks featuring gigabit data transmission from the control panel to the consolidation point (8) High flex applications – Robotic, C-Track |
| Product Type | Patch Cord |
| Conductor Gauge (AWG) | 24 |
| Conductor Gauge (kcmil) | 0.4 |
| Sub Brand | IndustrialNet |
| Performance Level | Category 5e |
| Conductor Type | Stranded |
| Cable Construction | SF/UTP |
| Patch Cord Type | Shielded |
| Plug Housing Material | Polycarbonate |
| Jacket Material | Thermoplastic Elastomer |
| Connector 1 Type | Modular Plug |
| Connector 2 Type | Modular Plug |
| Overall Length (m) | 0.6 |
| Nominal Cable Outside Diameter (mm) | 7.2 |
| Wiring Scheme | T568A |
| Maximum Operating Temperature (°C) | 70 |
| Minimum Operating Temperature (°C) | -20 |
| Maximum Storage Temperature (°C) | 70 |
| Minimum Storage Temperature (°C) | -40 |
| Boot Color | Black |
| Color | Black |
| Flammability Rating | CM |
| Standards Met | Meets all applicable ANSI/TIA-968-A requirements; contacts plated with 50 microinches of gold for superior performance, Meets IEC 60603-7, Meets IEEE 802.3af and IEEE 802.3at for PoE applications, UL AWM Style 2463 (80°C 600 V) Flex Life Test: 1 million cycles at 10x cable diameter; 10 million cycles at 20x cable diameter Torsion Life Test: 3 million cycles, 360°, RoHS Compliant |
| IP Rating | IP20 |
| IEC Variant | 60603-7 |
| PoE Compatibility | PoE |
| Plug Type | 8 Position |
| Part Features | Robust 600V-rated construction, 100% performance tested for wire map, NEXT, and return loss, Centered de-embedded plug, Integral pair manager and Flexible stranded cable |
Panduit - ISTPHCH0.6MBL - Package Information
| UPC | 07498371867 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0240 |
| Standard Ctn. Quantity | 10 |
| Standard Ctn. Volume (cf) | 0.2397 |
