Panduit ISTPHCH0.6MTL | Industrial Cat 5e Shielded 600 V Patch Cord...
Description
Description

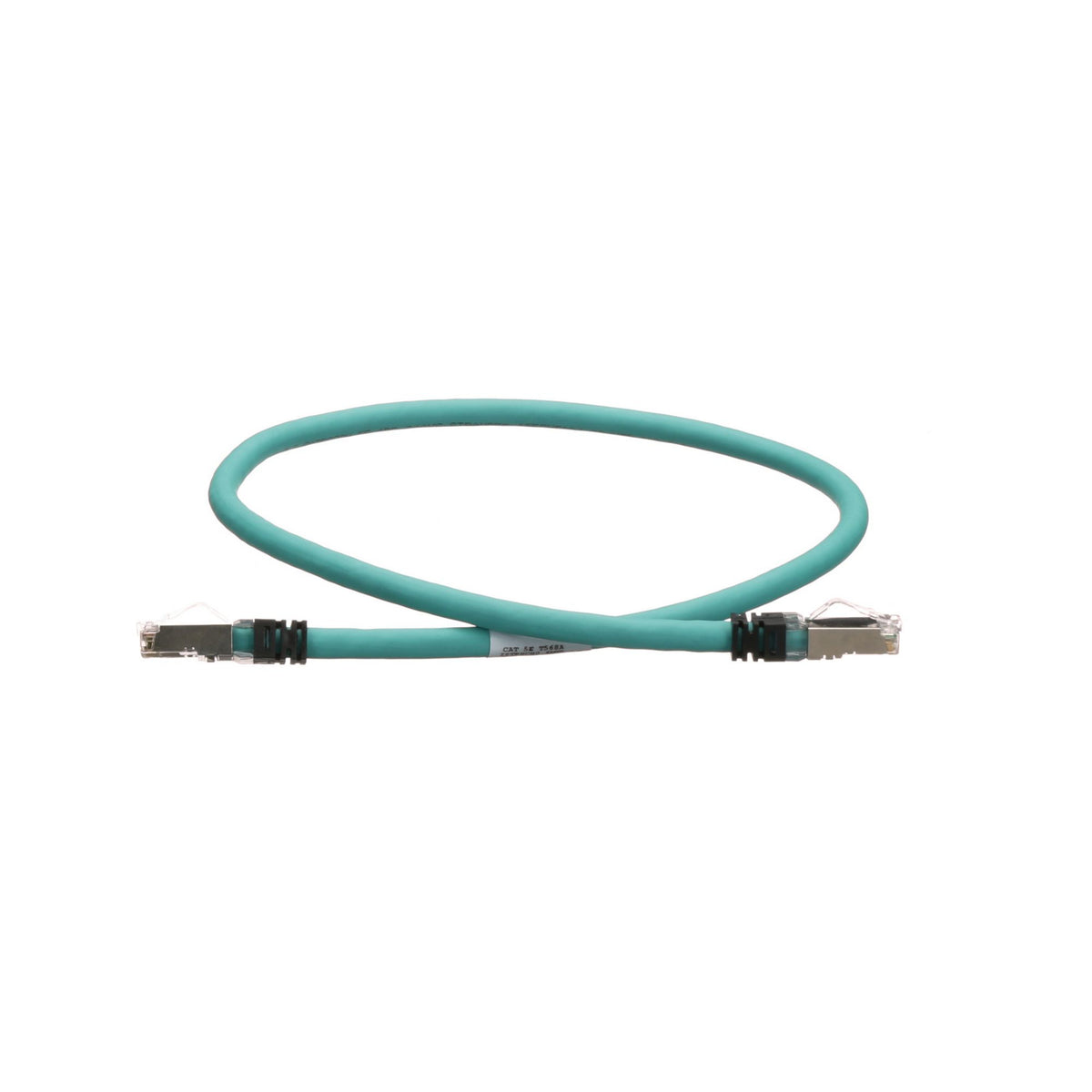

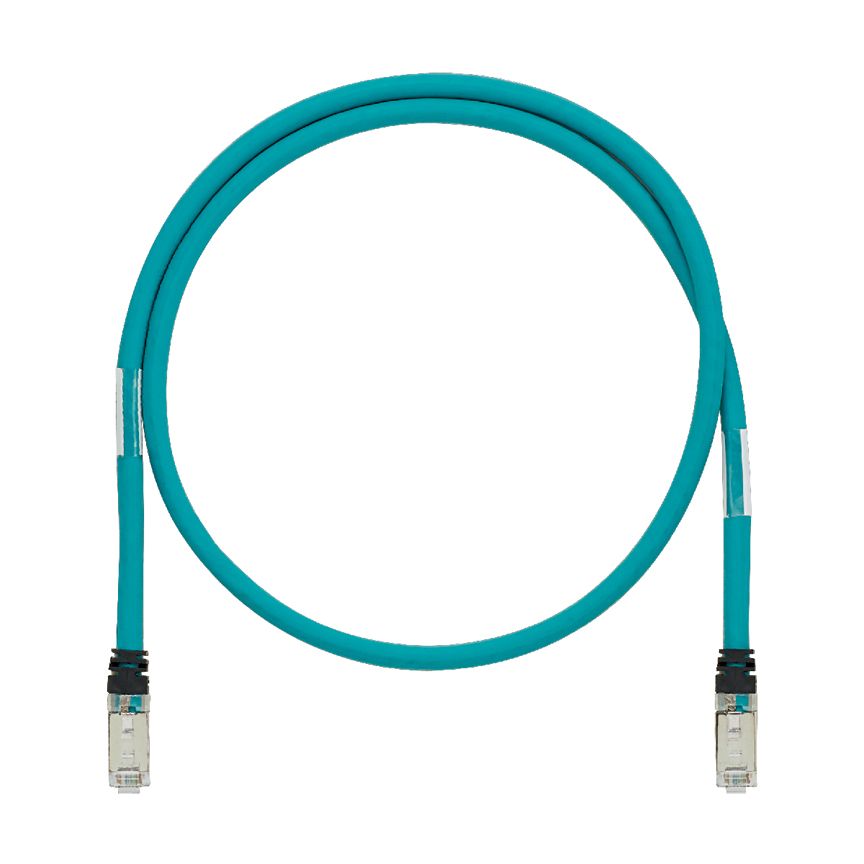

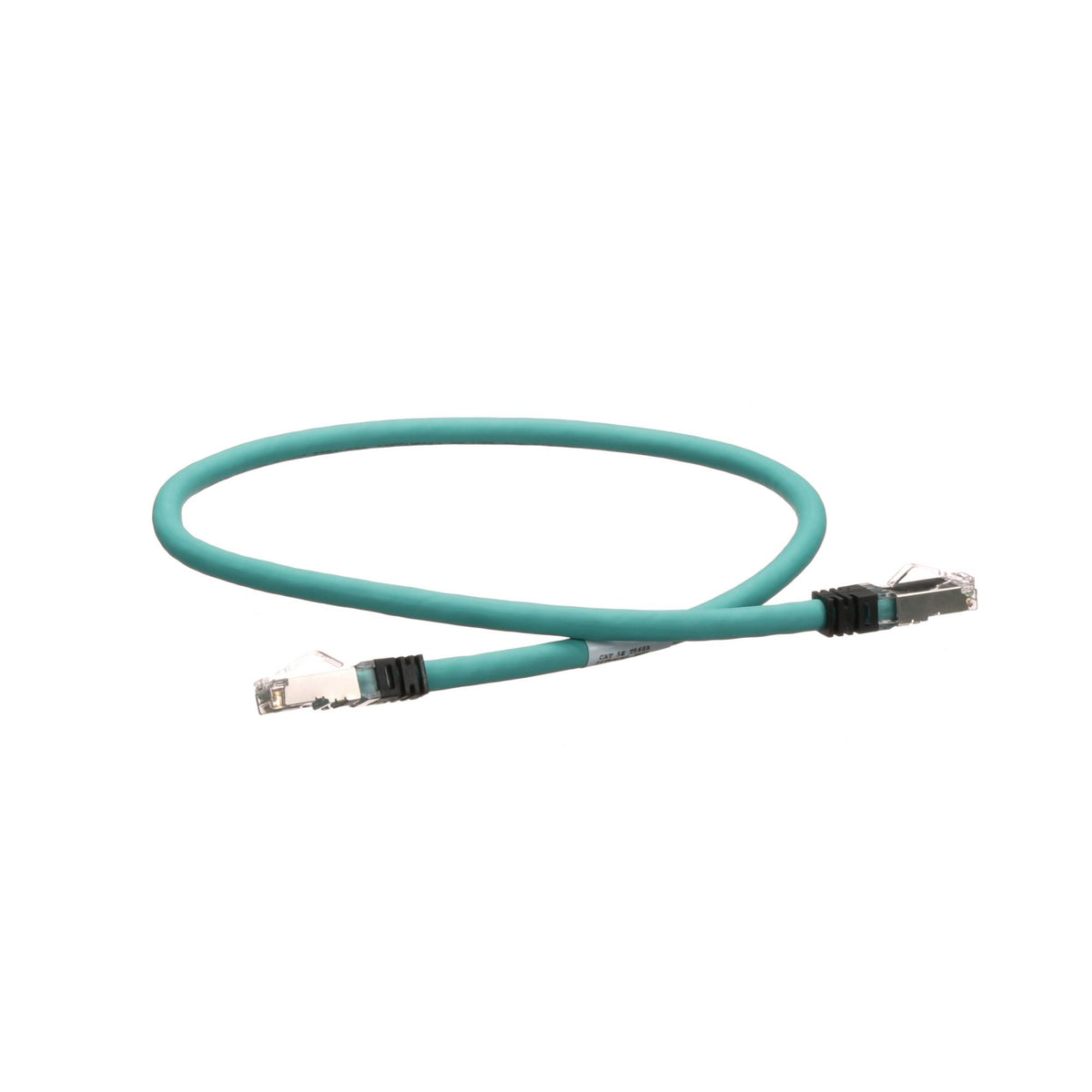

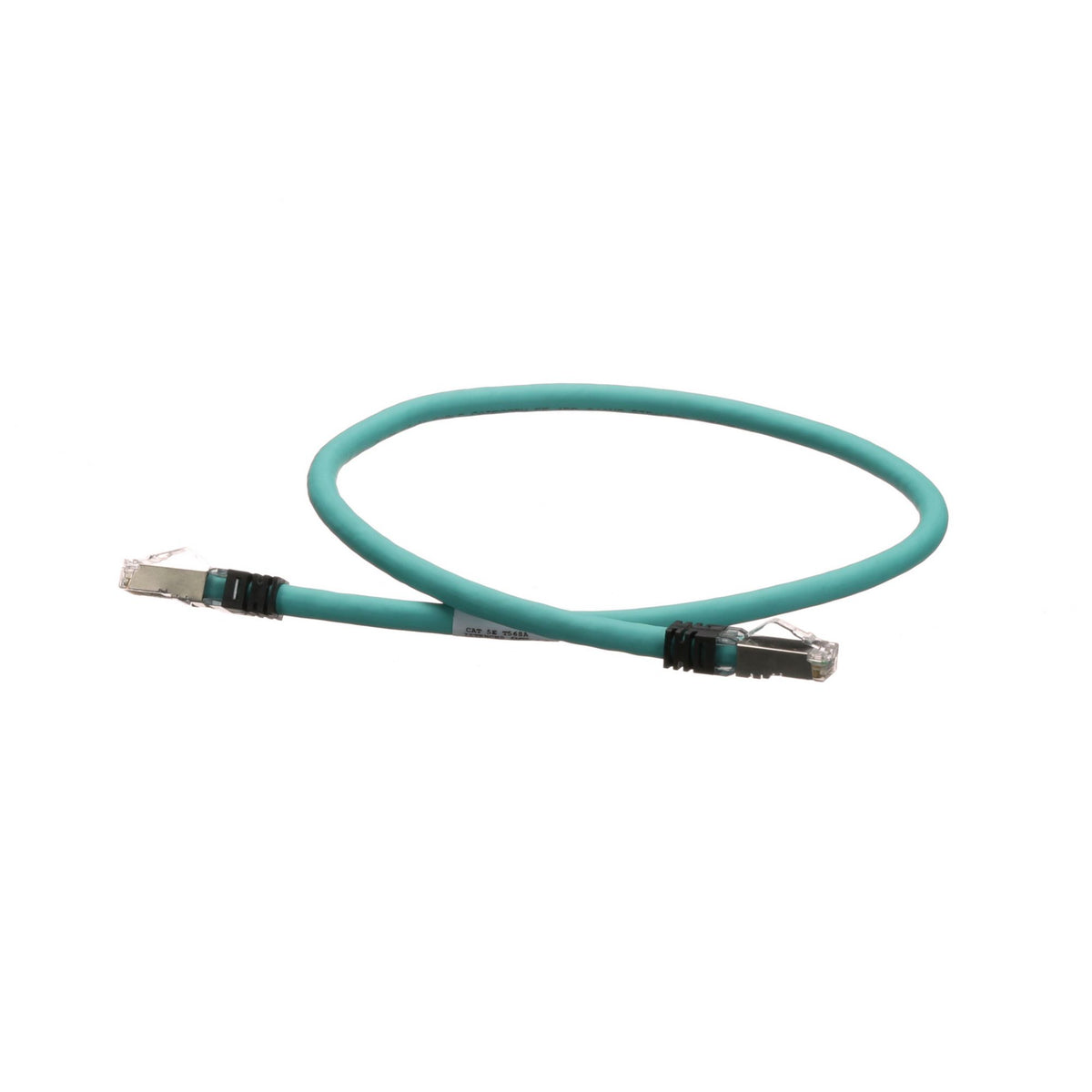

The IndustrialNet Cat 5e Shielded Patch Cord is constructed of industrial grade, 24 AWG, SF/UTP, twisted pair, stranded, CM cable with industrial bulkhead shielded modular plugs with black strain relief boots. It is designed to support high-flex applications and is rated for 600 V panel or on-machine applications where space is shared with high voltage power cables. The patch cord is 0.6 meters in length and teal.
Panduit ISTPHCH0.6MTL Patchcord Industrialnet Cat5eshielded 600v Rj45 Plug Torj45 Plug Teal 0.6m
Specifications
Specifications
Panduit - ISTPHCH0.6MTL - Product Categories
- Copper Systems
- Industrial Copper Patch Cords
Panduit - ISTPHCH0.6MTL - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | ISTPHCH0.6MTL |
| Item Description | Industrial Cat 5e Shielded 600 V Patch Cord, 0.6m |
| Application | (1) 10BASE-T (Ethernet) (2) 100BASE-T (Fast Ethernet) (3) 1000BASE-T (Gigabit Ethernet) (4) Industrial Ethernet (5) Ethernet/IP (6) Control Panel deployments featuring power source voltages (7) Uplinks featuring gigabit data transmission from the control panel to the consolidation point (8) High flex applications â€" Robotic, C-Track |
| Product Type | Patch Cord |
| Conductor Gauge (AWG) | 24 |
| Conductor Gauge (kcmil) | 0.4 |
| Sub Brand | IndustrialNet |
| Performance Level | Category 5e |
| Conductor Type | Stranded |
| Patch Cord Type | Shielded |
| Plug Housing Material | Polycarbonate |
| Jacket Material | Thermoplastic Elastomer |
| Connector 1 Type | RJ45 8 |
| Connector 2 Type | RJ45 8 |
| Overall Length (m) | 0.6 |
| Nominal Cable Outside Diameter (mm) | 7.1 |
| Wiring Scheme | T568B |
| Maximum Operating Temperature (°C) | 70 |
| Minimum Operating Temperature (°C) | -20 |
| Maximum Storage Temperature (°C) | 70 |
| Minimum Storage Temperature (°C) | -40 |
| Color | Teal |
| Flammability Rating | CM |
| Standards Met | Exceeds channel and component requirements of ANSI/TIA-568-C.2 Category 5e and ISO 11801 Class D standards at swept frequencies up to 100MHz; Meets ODVA Ethernet/IP electrical and mechanical performance requirements; Meets all applicable ANSI/TIA-968-A requirements; Meets IEC 60603-7, UL 1863; Rated IP20; Meets IEEE 802.3af and IEEE 802.3at for PoE applications; UL AWM Style 2463; RoHS Compliant |
| IP Rating | IP20 |
| IEC Variant | 60603-7 |
| PoE Compatibility | PoE |
| Plug Type | 8 Position |
| Part Features | Robust 600V-rated construction, 100% performance tested for wire map, NEXT, and return loss, Centered de-embedded plug, Integral pair manager and Flexible stranded cable |
Panduit - ISTPHCH0.6MTL - Package Information
| UPC | 07498384857 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0240 |
| Standard Ctn. Quantity | 10 |
| Standard Ctn. Volume (cf) | 0.2403 |
