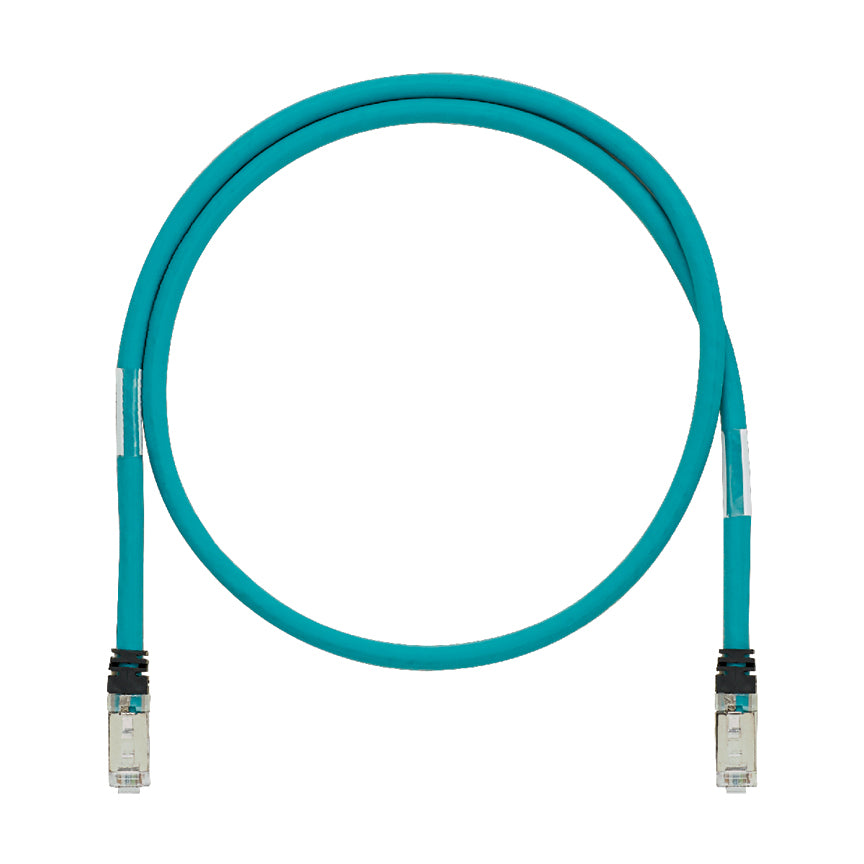

Panduit ISTPHCH20MTL | Industrial Cat 5e Shielded 600 V Patch Cord,...
Description
Description
Connect industrial devices with confidence using our rugged Cat 5e shielded patch cord. Built to withstand harsh environments, this durable cable ensure reliable data transfer in demanding settings.
Patch cord, IndustrialNET, category 5e, shielded, 600V, RJ45 plug to RJ45 plug, teal, 20 meter.
Industrial patch cords shall be constructed of Category 5E, industrial grade, 24 AWG stranded, twisted 4-pair shielded SF/UTP cable with a flame retardant (CM) thermoplastic elastomer (TPE) jacket. Patch cord cable shall be offered in multiple colors and lengths for design flexibility. Each patch cord shall be pre-terminated to include Category 5E RJ45 shielded modular plugs on each end, with a black strain relief boot and wired according to the T568A standard. Each patch cord is designed to support high-flex applications and is rated for 600 VAC panel or on machine applications when the space is shared with high voltage power cables.
Panduit IndustrialNet Patch Cord, SF/UTP, Category: Cat 5e, 24 AWG Conductor, Copper Conductor, Modular Plug Connector, 65.6 ft Cord, Teal
Panduit - ISTPHCH20MTL - Features
- Color specific keys with positive and negative keying features
- 100% performance tested
- Centered de-embedded plug
- Integral pair manager
- Patented tangle free latch
- Slender strain relief boot
- Robust construction
Specifications
Specifications
Panduit - ISTPHCH20MTL - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | ISTPHCH20MTL |
| Category | Category 5E |
| Lengths | 20 M | 65.62 Ft. |
| Connector Type | Rj45 To Rj45 |
| Shielded | Sf/Utp - Screened & Foiled/Unshielded Twisted Pair |
| Type | Patch Cords |
| UNSPSC Code | 43223303 |
| Product Type | Industrial Copper Patch Cord |
| Application | (1) 10BASE-T (Ethernet) (2) 100BASE-T (Fast Ethernet) (3) 1000BASE-T (Gigabit Ethernet) (4) Industrial Ethernet (5) Ethernet/IP (6) Control Panel deployments featuring power source voltages (7) Uplinks featuring gigabit data transmission from the control panel to the consolidation point (8) High flex applications – Robotic, C-Track |
| Conductor Gauge (AWG) | 24 |
| Conductor Gauge (kcmil) | 0.4 |
| Sub Brand | IndustrialNet |
| Performance Level | Category 5e |
| Conductor Type | Stranded |
| Cable Construction | SF/UTP |
| Patch Cord Type | Shielded |
| Plug Housing Material | Polycarbonate |
| Jacket Material | Thermoplastic Elastomer |
| Connector 1 Type | Modular Plug |
| Connector 2 Type | Modular Plug |
| Overall Length (m) | 20 |
| Nominal Cable Outside Diameter (mm) | 7.2 |
| Wiring Scheme | RJ45/T568A |
| Maximum Operating Temperature (°C) | 70 |
| Minimum Operating Temperature (°C) | -20 |
| Boot Color | Black |
| Color | Teal |
| Flammability Rating | CM |
| UPC | 07498384916 |
