Panduit ISTPHCH2MBU | Industrial Cat 5e Shielded 600 V Patch Cord, ...
Description
Description

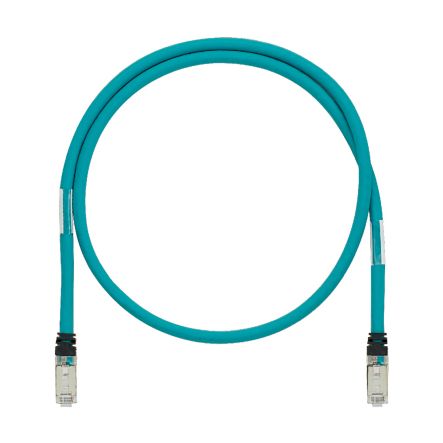

The IndustrialNet Cat 5e Shielded Patch Cord is constructed of industrial grade, 26 AWG, SF/UTP, twisted pair, stranded, CM cable with industrial bulkhead shielded modular plugs with black strain relief boots. It is designed to support high-flex applications and is rated for 600 V panel or on-machine applications where space is shared with high voltage power cables. The patch cord is 2 meters in length and Blue.
Panduit ISTPHCH2MBU Patch Cord, IndustrialNET, Cat5e, Shielded, 600V, RJ45 plug to RJ45 plug, Blue, 2m
Specifications
Specifications
Panduit - ISTPHCH2MBU - Product Categories
- Copper Systems
- Industrial Copper Patch Cords
Panduit - ISTPHCH2MBU - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | ISTPHCH2MBU |
| Item Description | Industrial Cat 5e Shielded 600 V Patch Cord, 2m, BU |
| Application | (1) 10BASE-T (Ethernet) (2) 100BASE-T (Fast Ethernet) (3)1000BASE-T (Gigabit Ethernet) (4) Industrial Ethernet (5) Ethernet/IP (6) Control Panel deployments featuring power source voltages (7) Uplinks featuring gigabit data transmission from the control panel to the consolidation point (8) High flex applications – Robotic, C-Track |
| Product Type | Industrial Copper Patch Cord |
| Conductor Gauge (AWG) | 24 |
| Conductor Gauge (kcmil) | 0.4 |
| Sub Brand | IndustrialNet |
| Performance Level | Category 5e |
| Conductor Type | Stranded |
| Cable Construction | SF/UTP |
| Patch Cord Type | Shielded |
| Plug Housing Material | Polycarbonate |
| Jacket Material | Thermoplastic Elastomer |
| Connector 1 Type | Modular Plug |
| Connector 2 Type | Modular Plug |
| Overall Length (m) | 2 |
| Nominal Cable Outside Diameter (mm) | 7.2 |
| Wiring Scheme | T568A |
| Maximum Operating Temperature (°C) | 70 |
| Minimum Operating Temperature (°C) | -20 |
| Boot Color | Black |
| Color | Blue |
| Flammability Rating | CM |
| Standards Met | Meets all applicable ANSI/TIA-968-A requirements; contacts plated with 50 microinches of gold for superior performance, Meets IEC 60603-7, Meets IEEE 802.3af and IEEE 802.3at for PoE applications, UL AWM Style 2463 (80°C 600 V) Flex Life Test: 1 million cycles at 10x cable diameter; 10 million cycles at 20x cable diameter Torsion Life Test: 3 million cycles, 360°, RoHS Compliant |
| IP Rating | IP20 |
| IEC Variant | 60603-7 |
| PoE Compatibility | PoE |
| Plug Type | 8 Position |
| Part Features | Robust 600V-rated construction, 100% performance tested for wire map, NEXT, and return loss, Centered de-embedded plug, Integral pair manager and Flexible stranded cable |
Panduit - ISTPHCH2MBU - Package Information
| UPC | 07498372012 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0273 |
| Standard Ctn. Quantity | 10 |
| Standard Ctn. Volume (cf) | 0.2728 |
