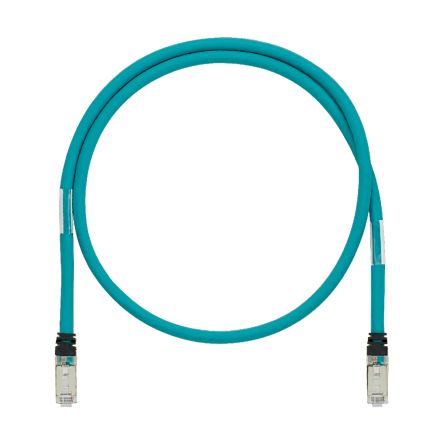

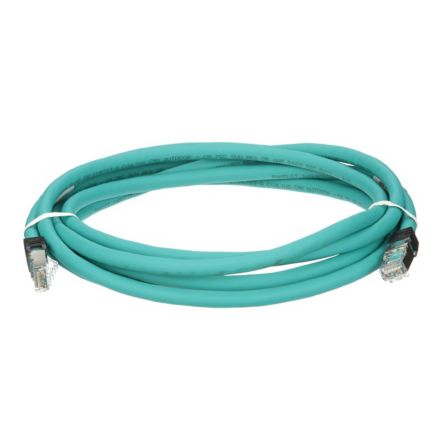

Panduit ISTPHCH3MTL | Industrial Cat 5e Shielded 600 V Patch Cord, 3m
Regular price
$47.83
Unit price
Brand: Panduit
|
SKU:
9955760
Regular price
$47.83
Unit price
Description
Description
Panduit ISTPHCH3MTL | Industrial Cat 5e Shielded 600 V Patch Cord, 3m
The IndustrialNet Cat 5e Shielded Patch Cord is constructed of industrial grade, 24 AWG, SF/UTP, twisted pair, stranded, CM cable with industrial bulkhead shielded modular plugs with black strain relief boots. It is designed to support high-flex applications and is rated for 600 V panel or on-machine applications where space is shared with high voltage power cables. The patch cord is 3 meters in length and teal.
Panduit ISTPHCH3MTL - PATCHCORD CAT5E - PATCH CORD, INDUSTRIALNET, CAT
Specifications
Specifications
Panduit - ISTPHCH3MTL - Product Categories
- Copper Systems
- Industrial Copper Patch Cords
Panduit - ISTPHCH3MTL - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | ISTPHCH3MTL |
| Item Description | Industrial Cat 5e Shielded 600 V Patch Cord, 3m |
| Application | (1) 10BASE-T (Ethernet) (2) 100BASE-T (Fast Ethernet) (3) 1000BASE-T (Gigabit Ethernet) (4) Industrial Ethernet (5) Ethernet/IP (6) Control Panel deployments featuring power source voltages (7) Uplinks featuring gigabit data transmission from the control panel to the consolidation point (8) High flex applications â€" Robotic, C-Track |
| Product Type | Patch Cord |
| Conductor Gauge (AWG) | 24 |
| Conductor Gauge (kcmil) | 0.4 |
| Sub Brand | IndustrialNet |
| Performance Level | Category 5e |
| Conductor Type | Stranded |
| Patch Cord Type | Shielded |
| Plug Housing Material | Polycarbonate |
| Jacket Material | Thermoplastic Elastomer |
| Connector 1 Type | RJ45 8 |
| Connector 2 Type | RJ45 8 |
| Overall Length (m) | 3 |
| Nominal Cable Outside Diameter (mm) | 7.1 |
| Wiring Scheme | T568B |
| Maximum Operating Temperature (°C) | 70 |
| Minimum Operating Temperature (°C) | -20 |
| Maximum Storage Temperature (°C) | 70 |
| Minimum Storage Temperature (°C) | -40 |
| Color | Teal |
| Flammability Rating | CM |
| Standards Met | Exceeds channel and component requirements of ANSI/TIA-568-C.2 Category 5e and ISO 11801 Class D standards at swept frequencies up to 100MHz; Meets ODVA Ethernet/IP electrical and mechanical performance requirements; Meets all applicable ANSI/TIA-968-A requirements; Meets IEC 60603-7, UL 1863; Rated IP20; Meets IEEE 802.3af and IEEE 802.3at for PoE applications; UL AWM Style 2463; RoHS Compliant |
| IP Rating | IP20 |
| IEC Variant | 60603-7 |
| PoE Compatibility | PoE |
| Plug Type | 8 Position |
| Part Features | Robust 600V-rated construction, 100% performance tested for wire map, NEXT, and return loss, Centered de-embedded plug, Integral pair manager and Flexible stranded cable |
Panduit - ISTPHCH3MTL - Package Information
| UPC | 07498384868 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0362 |
| Standard Ctn. Quantity | 10 |
| Standard Ctn. Volume (cf) | 0.3621 |
