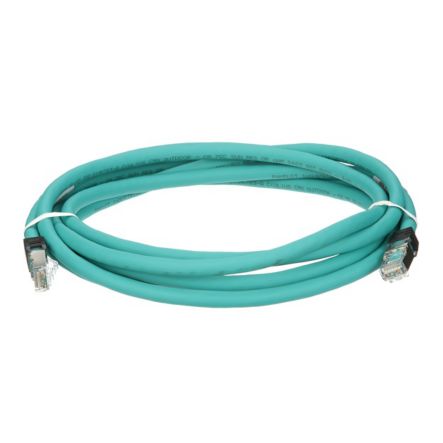

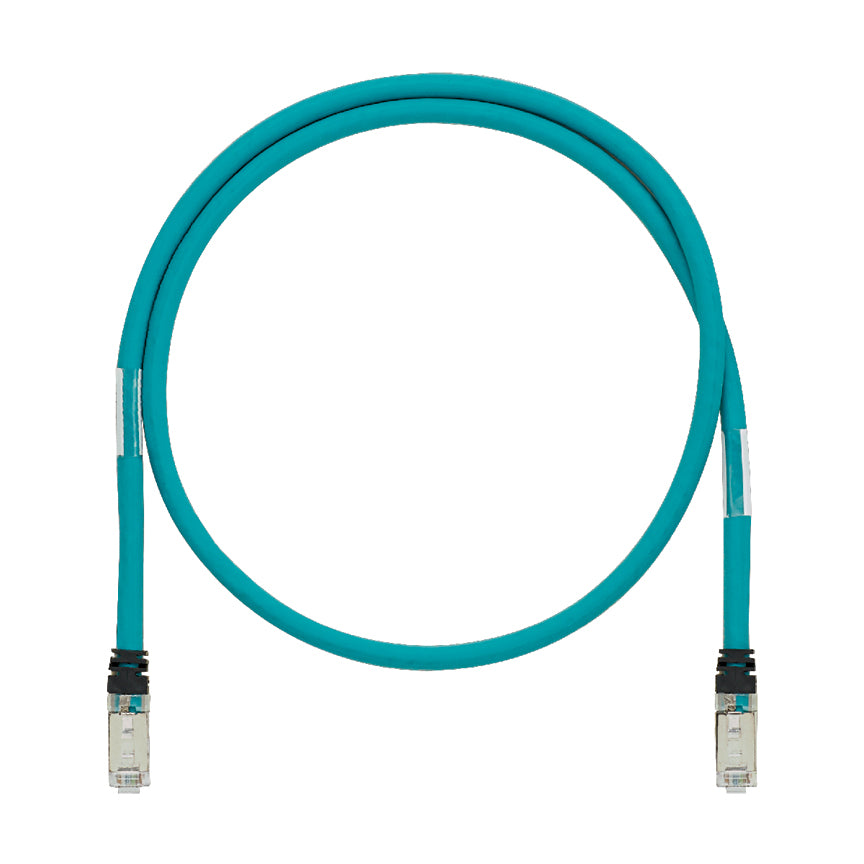

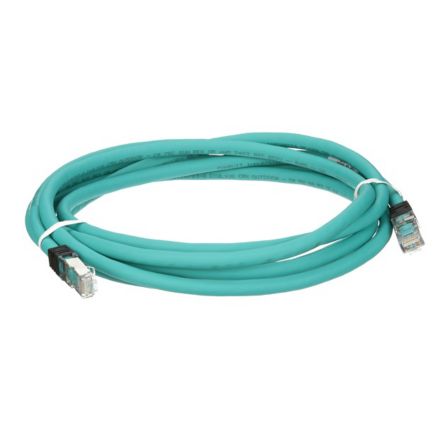

Panduit ISTPHCH3MTL | Patch Cord | UPC - 07498384868
Description
Description
Industrial patch cords shall be constructed of Category 5E, industrial grade, 24 AWG stranded, twisted 4-pair shielded SF/UTP cable with a flame retardant (CM) thermoplastic elastomer (TPE) jacket. Patch cord cable shall be offered in multiple colors and lengths for design flexibility. Each patch cord shall be pre-terminated to include Category 5E RJ45 shielded modular plugs on each end, with a black strain relief boot and wired according to the T568A standard. Each patch cord is designed to support high-flex applications and is rated for 600 VAC panel or on machine applications when the space is shared with high voltage power cables.
Panduit IndustrialNet Patch Cord, SF/UTP, Category: Cat 5e, 24 AWG Conductor, Copper Conductor, Modular Plug Connector, 9.84 ft Cord, Teal
- Color specific keys with positive and negative keying features
- 100% performance tested
- Centered de-embedded plug
- Integral pair manager
- Patented tangle free latch
- Slender strain relief boot
- Robust construction
Panduit Panduit ISTPHCH3MTL | Patch Cord | UPC - 07498384868 Key Specs
| Application | (1) 10BASE-T (Ethernet) (2) 100BASE-T (Fast Ethernet) (3) 1000BASE-T (Gigabit Ethernet) (4) Industrial Ethernet (5) Ethernet/IP (6) Control Panel deployments featuring power source voltages (7) Uplinks featuring gigabit data transmission from the control panel to the consolidation point (8) High flex applications – Robotic, C-Track |
| Product Type | Patch Cord |
| Conductor Gauge (AWG) | 24 |
| Conductor Gauge (kcmil) | 0.4 |
| Sub Brand | IndustrialNet |
| Performance Level | Category 5e |
| Conductor Type | Stranded |
| Patch Cord Type | Shielded |
| Plug Housing Material | Polycarbonate |
| Jacket Material | Thermoplastic Elastomer |
| Connector 1 Type | RJ45 8 |
| Connector 2 Type | RJ45 8 |
| Overall Length (m) | 3 |
| Nominal Cable Outside Diameter (mm) | 7.1 |
| Wiring Scheme | T568B |
| Maximum Operating Temperature (°C) | 70 |
| Minimum Operating Temperature (°C) | -20 |
| Maximum Storage Temperature (°C) | 70 |
| Minimum Storage Temperature (°C) | -40 |
| Color | Teal |
Panduit Panduit ISTPHCH3MTL | Patch Cord | UPC - 07498384868 Environmental Information
| Panduit's RoHS Statement | Download and View |
