Description
Description

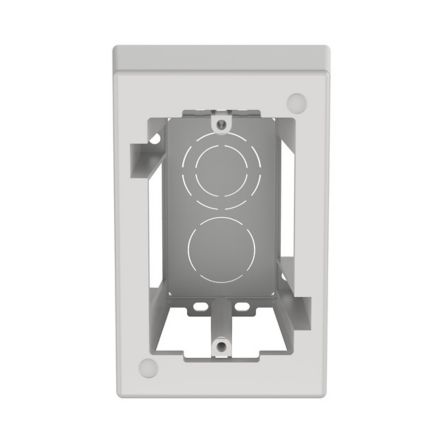

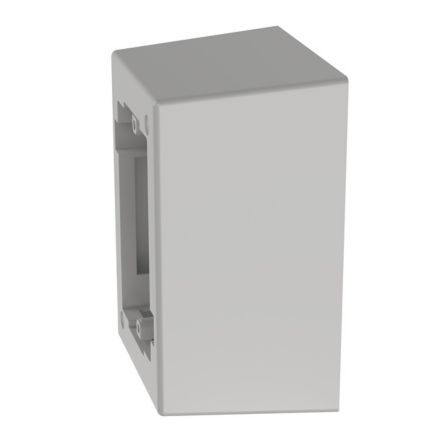

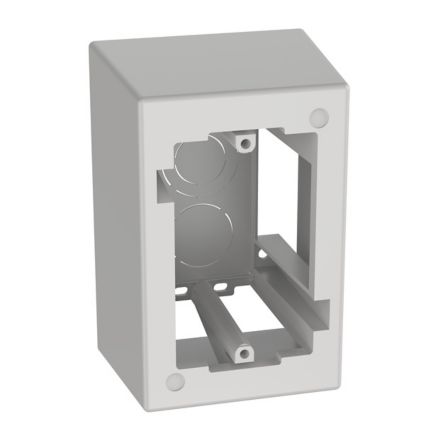

The Low Voltage Surface Mount Outlet Box is a one-gang style box designed for low voltage applications. It is made to be used with the Pan-Way LD profile raceway. The Low Voltage Surface Mount Outlet Box features breakout for ½", ¾", or 1" diameter conduit as well as an adhesive backing. It accepts Pan-Way Screw-On Faceplates or any NEMA standard single gang faceplate. It measures 5.23" L x 3.48" W x 2.75" H (133.0mm x 88.5mm x 69.8mm). It is made of ABS plastic and is White.
Panduit - JB1DWH-A - Features
- JBX3510 assembles without the use of screws for faster installation
- JBX3510, JB1, and JB1D are supplied with adhesive backing to speed installation
- JB1 and JB1D are a one-piece design requiring no assembly
Specifications
Specifications
Panduit - JB1DWH-A - Product Categories
- Wire Routing, Management & Protection
- Surface Raceway Receptacles
Panduit - JB1DWH-A - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | JB1DWH-A |
| Item Description | Surface Raceway, Low Voltage Junction Box, 1-gang, White |
| Product Type | Low Voltage |
| Color | White |
| Gang Opening Type | Single Gang |
| Material | ABS |
| Raceway Type | One-Piece Outlet Box |
| Standards Met | RoHS Compliant |
| Overall Height (In.) | 2.75 |
| Overall Height (mm) | 69.8 |
| Sub Brand | Pan-Way |
| Overall Length (In.) | 5.23 |
| Overall Length (mm) | 133 |
| Overall Width (In.) | 3.48 |
| Overall Width (mm) | 88.5 |
| Application | 1 Piece Junction Box |
| Part Features | Single gang one-piece deep outlet box with adhesive backing. (L=5.23in. W=3.48in. H=2.75in.) Box accepts Pan-Way screw-on faceplates or any NEMA standard 70mm single gang faceplate. |
Panduit - JB1DWH-A - Package Information
| UPC | 07498358293 |
|---|---|
| Standard Pkg. Qty. | 1 |
| Standard Package Volume (cf) | 0.0744 |
| Standard Ctn. Qty. | 10 |
| Standard Ctn. Volume (cf) | 0.7435 |
